38052 (521) - Toro 21" Snow Thrower (SN: 039000001 - 039999999) (1993) CARBURETOR NO. 632107A Parts Diagram

21" Snow Thrower

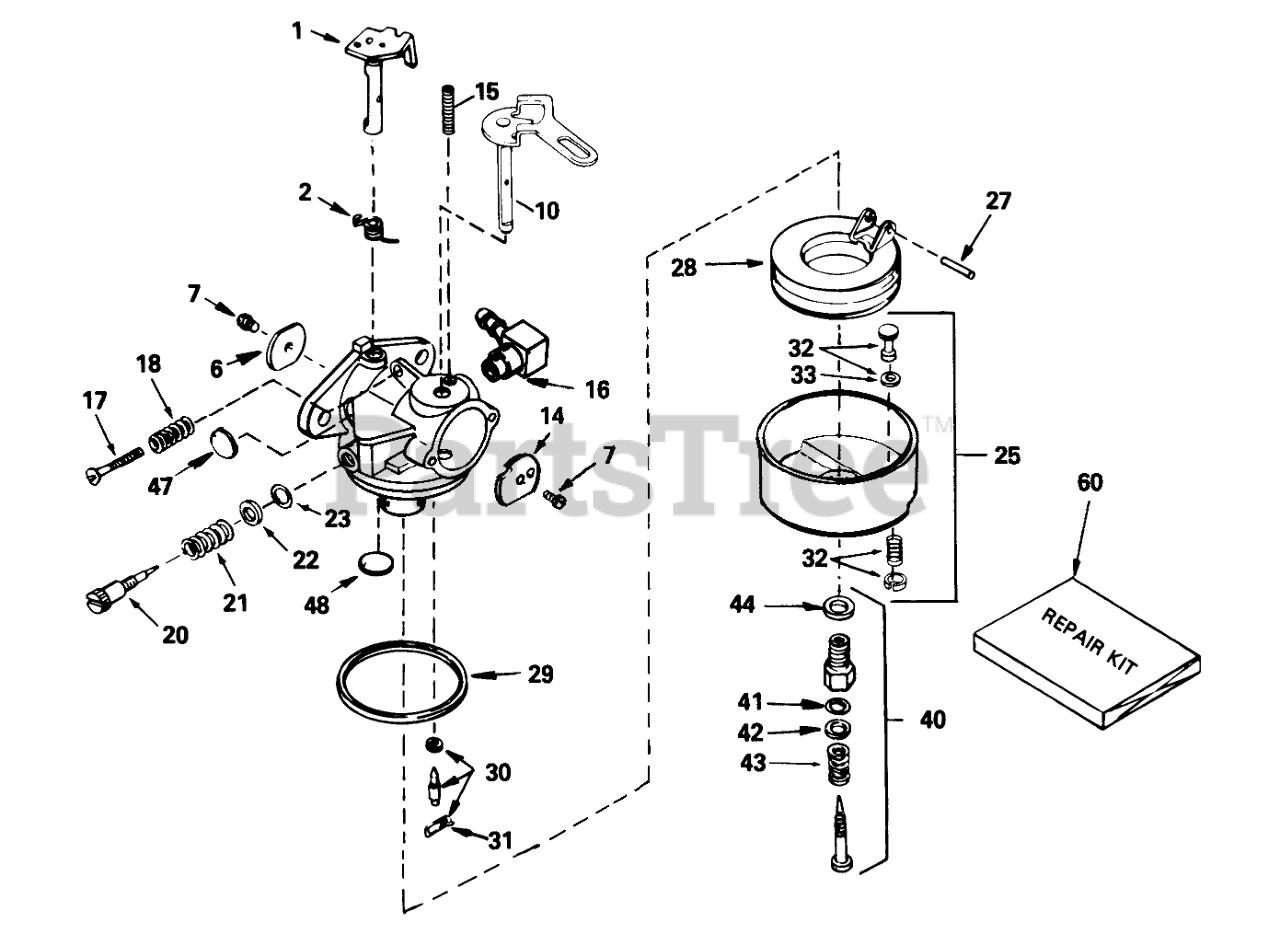

CARBURETOR NO. 632107A Parts Diagram

  • Title

1

Tecumseh 631615

Throttle Shaft and Lever ASM

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631767

Spring-Return, Throttle

$1.99

$

In Stock, only 4 left!

0

6

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 16

0

10

Tecumseh 632108

Choke Shaft and Lever Asm

$235.99

$

In Stock, only 1 left!

0

14

Tecumseh 631815

Shutter-choke

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 631807

Fitting-Fuel

$8.49

$

In Stock, only 2 left!

0

17

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

20

Toro 621838

Screw-Idle

Note: Incl. Items Marked

$

$

Currently unavailable

21

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

22

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 6

0

23

Tecumseh 630740

"O"Ring

Note: Incl. Items Marked

$2.49

$

In Stock, only 2 left!

0

25

Tecumseh 631951

Bowl-Assembly (Incl. Ref. #32 & 33)

$17.99

$

In Stock, only 1 left!

0

27

Tecumseh 631024

Shaft-Float

Note: Incl. Items Marked

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Incl. Items Marked

$2.49

$

In Stock, Qty 9

0

30

Tecumseh 631021

Inlet Needle-Seat & Clip (Incl. Ref. #31)
(Superseded to 631021B)

Note: Incl. Items Marked

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 27136A

Drain Assembly-Bowl (Incl. Ref. #33)

$7.49

$

In Stock, only 1 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain

$1.49

$

In Stock, Qty 16

0

40

Tecumseh 31839

Screw Adjustment Assembly (Incl. Ref. #41-44)

Note: Incl. Items Marked

$15.99

$

In Stock, only 1 left!

0

41

Tecumseh 630740

"O"Ring

Note: Incl. Items Marked

$2.49

$

In Stock, only 2 left!

0

42

Tecumseh 630739

Washer

$1.99

$

In Stock, Qty 6

0

43

Tecumseh 630738

Spring

$1.99

$

In Stock, Qty 8

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

Note: Incl. Items Marked

$2.49

$

Usually ships in 3-12 days

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Incl. Items Marked

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Incl. Items Marked

$1.99

$

In Stock, Qty 5

0

60

Tecumseh 31840

Kit-Repair

$20.99

$

In Stock, only 2 left!

0

Tecumseh 632107A

Carburetor (Incl. Ref. #1-60)
(Superseded to 640084B)

Note: Not illustrated

$109.99

$

Usually ships in 3-12 days

0
