38052 (521) - Toro 21" Snow Thrower (SN: 008000001 - 008999999) (1988) ENGINE TECUMSEH MODEL HS50-67259G Parts Diagram

21" Snow Thrower

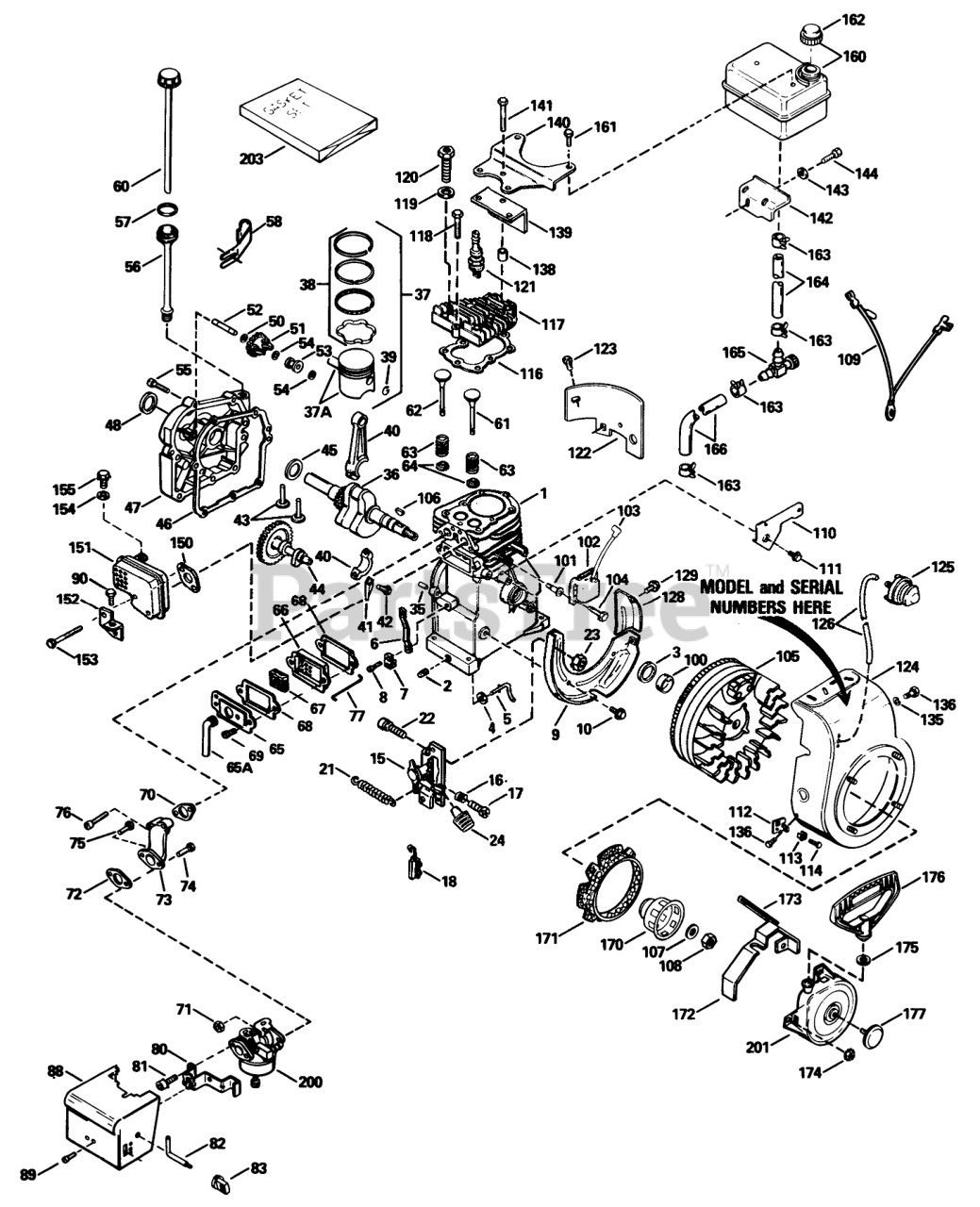

ENGINE TECUMSEH MODEL HS50-67259G Parts Diagram

  • Title

1

Tecumseh 33674A

Cylinder Assembly (Incl. Ref. #2, 3 & 35)
(Superseded to 33674B)

$

$

Not available

2

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

3

Tecumseh 32600

Seal-Oil

$

$

Not available

4

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

6

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

7

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

8

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

9

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

$9.49

$

Usually ships in 3-12 days

0

10

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

15

Tecumseh 33858A

Control Assembly-Bracket (Incl. Ref. #16-23)
(Superseded to 36677)

$47.99

$

In Stock, only 1 left!

0

16

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

17

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

21

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

22

Tecumseh 650139

Screw

$1.99

$

In Stock, only 4 left!

0

23

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

24

Tecumseh 35440

Knob-Control

$3.99

$

In Stock, only 1 left!

0

35

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

36

Tecumseh 34740

Crankshaft ASM

$137.99

$

Usually ships in 3-12 days

0

37

Tecumseh 34535

Piston-Pin & Ring Assy. (Std.)(Incl. Ref. #37A, 38 & 39)

$74.99

$

In Stock, only 1 left!

0

37

Tecumseh 34536

Piston-Pin & Ring Assembly (.010 oversize)(Incl. Ref. #37A, 38 & 39)

$

$

Not available

37

Tecumseh 34537

Piston-Pin & Ring Assembly (.020 oversize)(Incl. Ref. #37A, 38 & 39)

$

$

Not available

37A

Tecumseh 33562B

Piston & Pin Assy. (Std.)(Incl. Ref. #39)

$44.99

$

Usually ships in 3-12 days

0

37A

Tecumseh 33563B

Piston & Pin Assembly (.010 oversize)(Incl. Ref. #39)

$

$

Not available

37A

Tecumseh 33564B

Piston & Pin Assembly (.020 oversize)(Incl. Ref. #39)

$

$

Not available

38

Tecumseh 33567

Ring Set-Piston Std.
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

38

Tecumseh 33568

Ring Set-Piston .010 oversize

$

$

Not available

38

Tecumseh 33569

Ring Set-Piston .020 oversize

$

$

Not available

39

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

40

Tecumseh 32875

Rod Assy.-Connecting (Incl. Ref. #41 & 42)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

41

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

42

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

43

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

44

Tecumseh 33158

Camshaft
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

45

Tecumseh 32323

Washer-Thrust

$8.49

$

Usually ships in 3-12 days

0

46

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

$7.49

$

In Stock, Qty 7

0

47

Tecumseh 34674A

Cover-Cylinder (Incl. Ref. #48 & 52)
(Superseded to 34674C)

$

$

Not available

48

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 17

0

50

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

51

Tecumseh 30591

Governor Gear ASM

$13.99

$

In Stock, only 1 left!

0

52

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

53

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

54

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

55

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

56

Tecumseh 35554

Tube-Fill, Oil

$19.99

$

In Stock, only 1 left!

0

57

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

58

Tecumseh 35539

Clip-Tube, Fill

$1.99

$

Usually ships in 3-12 days

0

60

Tecumseh 35556

Dipstick

$7.49

$

Usually ships in 3-12 days

0

61

Tecumseh 29313C

Valve-Exhaust (Std.)

$

$

Not available

61

Tecumseh 29315C

Valve-Intake (1/32" oversize)

$

$

Not available

62

Tecumseh 32644A

Valve-Intake (STD)

$9.99

$

Usually ships in 3-12 days

0

62

Tecumseh 32645A

Valve-Intake (1/32 O S)

$61.99

$

In Stock, only 2 left!

0

63

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

64

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 3 left!

0

65

Tecumseh 34146

Cover-Breather

$3.99

$

In Stock, only 1 left!

0

65A

Tecumseh 35350

Tube-Breather

$6.49

$

Usually ships in 3-12 days

0

66

Tecumseh 27666

Body-Breather

$14.99

$

In Stock, only 4 left!

0

67

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

68

Tecumseh 27234

Gasket-Breather
(Superseded to 27234A)

$5.99

$

In Stock, only 1 left!

0

69

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

70

Tecumseh 33673

Gasket-Intake
(Superseded to 33673A)

$5.99

$

In Stock, only 2 left!

0

71

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

72

Tecumseh 26756

Gasket

$2.99

$

In Stock, Qty 8

0

73

Tecumseh 33691

Pipe-Intake

$25.99

$

Usually ships in 3-12 days

0

74

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

75

Tecumseh 650870

Screw (1/4-28 x 1-11/16)

$1.99

$

In Stock, Qty 5

0

76

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 9

0

77

Tecumseh 32698

Link-Governor to Throttle

$1.99

$

In Stock, only 4 left!

0

80

Tecumseh 34583

Bracket-Choke
(Superseded to 34583A)

$12.99

$

In Stock, Qty 6

0

81

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

82

Tecumseh 34582

Rod-Choke

$5.49

$

Usually ships in 3-12 days

0

83

Tecumseh 35438

Knob-Control

$3.99

$

In Stock, only 2 left!

0

88

Tecumseh 35072

Cover-Carburetor
(Superseded to 35072B)

$

$

Not available

89

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

90

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

100

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

101

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

102

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

In Stock, only 1 left!

0

103

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

104

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

105

Tecumseh 611081

CLAMP
(Superseded to 611081A)

$

$

Not available

106

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

107

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

108

Tecumseh 650863

Nut-Flywheel

$

$

Not available

109

Tecumseh 35557

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

110

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, Qty 5

0

111

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

112

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

113

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

114

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 3 left!

0

116

Tecumseh 33554

Oil Fill Tube
(Superseded to 36443)

$5.99

$

In Stock, Qty 7

0

117

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

118

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

119

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

120

Tecumseh 650818

Screw ( 5/16-18 x 1-1/2)

$3.99

$

In Stock, only 2 left!

0

121

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 15

0

122

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

123

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

124

Tecumseh 34813A

Housing-Blower
(Superseded to 33663E)

$

$

Not available

125

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

$10.99

$

In Stock, only 4 left!

0

126

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

128

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

129

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

135

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

136

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

138

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

139

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

140

Tecumseh 28371B

Plate-Fuel Tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

141

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

142

Tecumseh 34182

Bracket-Fuel Tank

$13.99

$

Usually ships in 3-12 days

0

143

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

144

Tecumseh 650805

Screw Assembly
(Superseded to 650561)

$1.99

$

In Stock, only 2 left!

0

150

Tecumseh 33670

Gasket-Exhaust
(Superseded to 35865)

$2.49

$

In Stock, only 2 left!

0

151

Tecumseh 33697A

Muffler

$40.99

$

Usually ships in 3-12 days

0

152

Tecumseh 33333

Bracket-Cover, Carburetor

$3.99

$

Usually ships in 3-12 days

0

153

Tecumseh 650327

Screw-Fil. Hd.
(Superseded to 650327A)

$6.99

$

In Stock, Qty 13

0

154

Tecumseh 8345

Washer

$1.99

$

In Stock, only 2 left!

0

155

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

160

Tecumseh 34711

Tank Assembly-Fuel (Incl. Ref. #162 & 163)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

161

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

162

Tecumseh 34210

Cap, Fuel

$8.49

$

In Stock, Qty 12

0

163

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

164

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

165

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

166

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

170

Tecumseh 34694

Cup-Starter

$11.99

$

Usually ships in 3-12 days

0

171

Tecumseh 35354

Screen-Starter

$

$

Currently unavailable

172

Tecumseh 34127

Guard-Starter

$

$

Not available

173

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

174

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

175

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

176

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

177

Tecumseh 35161

Plug-Starter

$

$

Not available

200

Tecumseh 632107

Carburetor (Incl. Ref. #72)
(Superseded to 640084B)

$109.99

$

Usually ships in 3-12 days

0

201

Tecumseh 590604

Starter-Rewind

$

$

Not available

203

Tecumseh 33683A

Gasket Set (Incl. Items Marked )
(Superseded to 33683C)

$20.99

$

In Stock, only 4 left!

0
