38052 (521) - Toro 21" Snow Thrower (SN: 007000001 - 007999999) (1987) HANDLE ASSEMBLY Parts Diagram

21" Snow Thrower

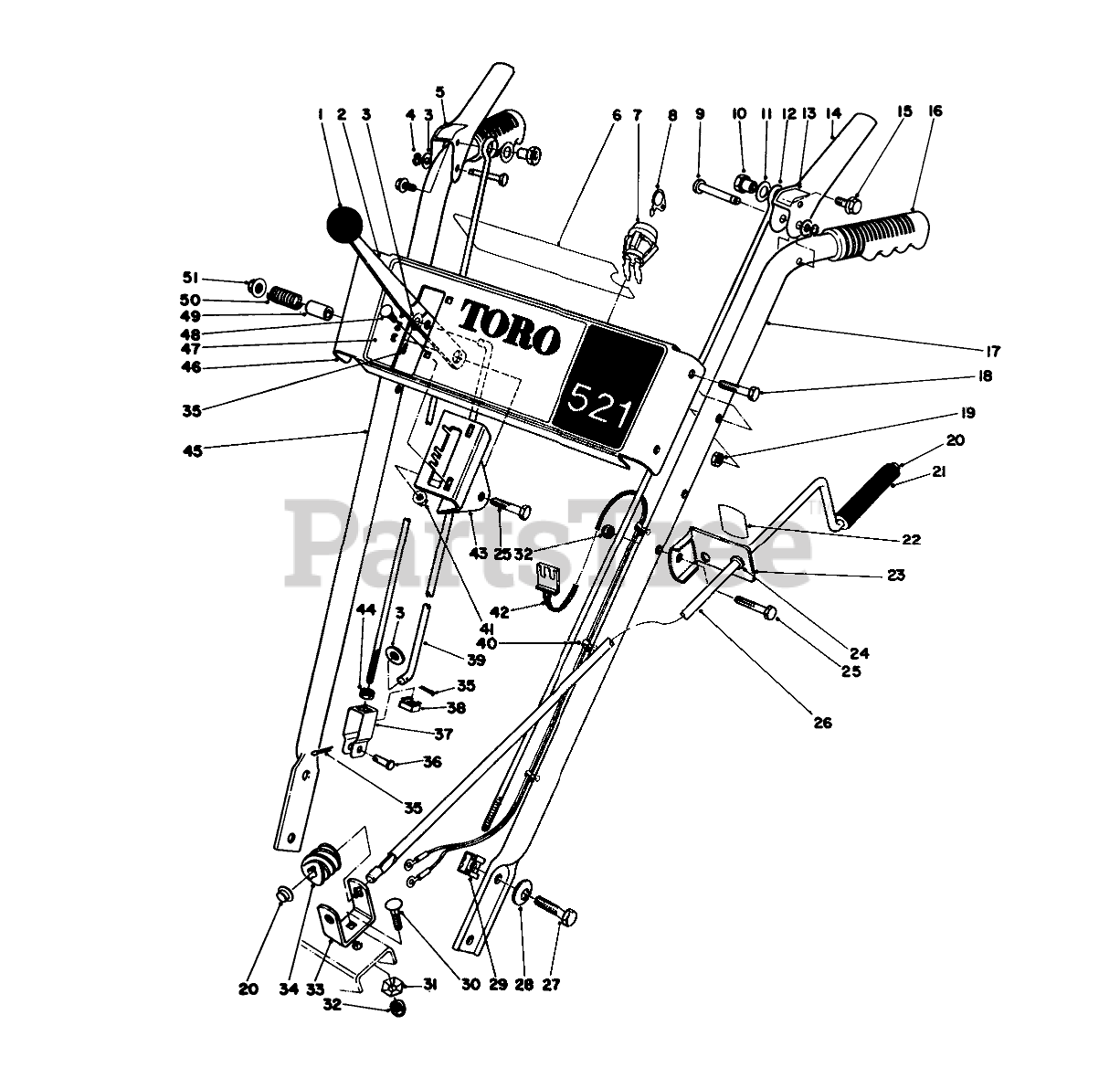

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

2

Toro 37-8820

SPEED SELECTOR B
(Superseded to 37-8820-03)

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32151-73

RING-CLIP

$2.99

$

In Stock, Qty 6

0

5

Toro 52-5650

AUGER DRIVE DECAL

$

$

Not available

6

Toro 54-9760

BACK DECAL

$

$

Not available

7

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

8

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

9

Toro 52-5600

PIN-LEVER, CONTROL

$28.99

$

Usually ships in 3-6 days

0

10

Toro 47-4990

POST-MOUNTING, LINKAGE

$27.99

$

Usually ships in 3-6 days

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

12

Toro 52-5590

LINK-UPPER

$23.99

$

Usually ships in 3-6 days

0

13

Toro 52-5630

DECAL

$

$

Not available

14

Toro 52-5580

Handle-Control
(Superseded to 94-8887-03)

$

$

Not available

15

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

16

Toro 37-9110

Grip
(Superseded to 74-1360)

$

$

Not available

17

Toro 52-5570

LEFT HANDLE

$118.99

$

In Stock, only 1 left!

0

18

Toro 321-37

SCREW-HH

$11.99

$

In Stock, only 2 left!

0

19

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

20

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

21

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

22

Toro 29-6370

CHUTE DECAL

$

$

Not available

23

Toro 6-3069

Bracket-Chute Control (Incl. Ref. #22 & 24)
(Superseded to 12-7739)

$

$

Not available

24

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 8

0

25

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 40-8270

ROD-CONTROL, CHUTE

$161.99

$

Usually ships in 3-6 days

0

27

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

29

Toro 3290-196

NUT

$9.99

$

Usually ships in 3-6 days

0

30

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

31

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 40-8280

BRACKET-WORM

$18.99

$

In Stock, only 1 left!

0

34

Toro 40-8250

GEAR-WORM, CHUTE

$15.99

$

Usually ships in 3-6 days

0

35

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

36

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

37

Toro 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

38

Toro 32115-5

NUT-RETAINED

$7.49

$

Usually ships in 3-6 days

0

39

Toro 39-7570

ROD-SELECTOR, SPEED

$41.99

$

Usually ships in 3-6 days

0

40

Toro 17-9120

Mount-Wire

$2.49

$

Usually ships in 3-6 days

0

41

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

42

Toro 43-7390

Wire Harness Assembly (Incl. Ref. #40)

$

$

Not available

43

Toro 39-1280

Mount-Speed Selector
(Superseded to 39-1280-03)

$

$

Not available

44

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

45

Toro 52-5560

RIGHT HANDLE

$

$

Not available

46

Toro 43-7360

ESCUTCHEON PLT B

$

$

Not available

47

Toro 53-7640

CONT PLT DECAL 521

$

$

Not available

48

Toro 3229-22

SCREW-CARRIAGE
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

49

Toro 40-8130

SPACER

$10.99

$

In Stock, only 1 left!

0

50

Toro 37-9150

SPRING

$10.99

$

In Stock, only 1 left!

0

51

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days
