38052 (521) - Toro 21" Snow Thrower (SN: 005000001 - 005999999) (1985) ENGINE TECUMSEH MODEL HS50-67246E Parts Diagram

21" Snow Thrower

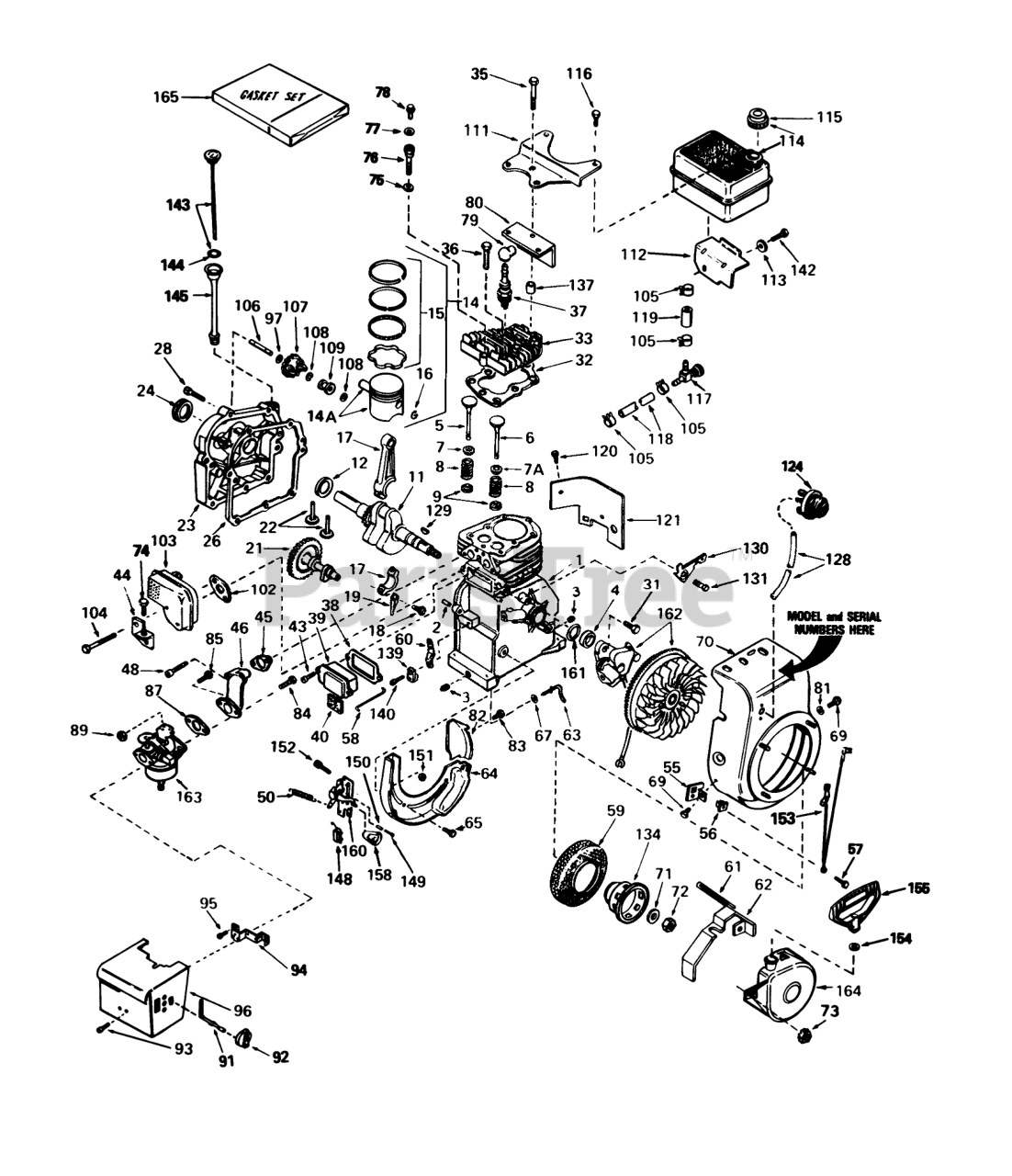

ENGINE TECUMSEH MODEL HS50-67246E Parts Diagram

  • Title

1

Tecumseh 33674

Cylinder Assy. (Incl. Ref. #2, 3 & 4)
(Superseded to 33674B)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 32644A

Valve-Intake (Std.)(Incl. Ref. #9)

$9.99

$

In Stock, only 2 left!

0

5

Tecumseh 32645A

Valve-Intake (1/32" oversize)(Incl. Ref. #9)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313C

Valve-Exhaust (Std)(Incl. Ref. #9)

$

$

Not available

6

Tecumseh 29315C

Valve-Exhaust (1/32" oversize)(Incl. Ref. #9)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

7A

Tecumseh 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 1 left!

0

11

Tecumseh 34740

Crankshaft ASM

$137.99

$

Usually ships in 3-12 days

0

12

Tecumseh 32323

Washer-Thrust

$8.49

$

In Stock, only 1 left!

0

14

Tecumseh 34535

Piston-Pin & Ring Assy. (Std.)(Incl. Ref. #14A, 15 & 16)

$74.99

$

In Stock, only 1 left!

0

14

Tecumseh 34536

Piston-Pin & Ring Assy. (.010 oversize)(Incl. Ref. #14A, 15 & 16)

$

$

Not available

14

Tecumseh 34537

Piston-Pin & Ring Assy. (.020 oversize)(Incl. Ref. #14A, 15 & 16)

$

$

Not available

14A

Tecumseh 33562B

Piston & Pin Assy. (Std.)(Incl. Ref. #16)

$44.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 33563B

Piston & Pin Assy. (.010 oversize)(Incl. Ref. #16)

$

$

Not available

14A

Tecumseh 33564B

Piston & Pin Assy. (.020 oversize)(Incl. Ref. #16)

$

$

Not available

15

Tecumseh 33567

Ring Set-Piston Std.
(Superseded to 40004)

$74.99

$

In Stock, only 1 left!

0

15

Tecumseh 33568

Ring Set-Piston .010 oversize

$

$

Not available

15

Tecumseh 33569

Ring Set-Piston .020 oversize

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 33661

Rod Assy.-Connecting (Incl. Ref. #18 & 19)
(Superseded to 32875)

$47.99

$

In Stock, only 1 left!

0

18

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

21

Tecumseh 33158

Camshaft
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 34674

Cover-Cylinder (Incl. Ref. #24 & 106)
(Superseded to 34674C)

$

$

Not available

24

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, only 3 left!

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$7.49

$

In Stock, Qty 8

0

28

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 33554

Oil Fill Tube
(Superseded to 36443)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$5.99

$

In Stock, Qty 11

0

33

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

35

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 15

0

37

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 15

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$7.49

$

In Stock, only 2 left!

0

39

Tecumseh 31337

Breather Assy. (Incl. Ref. #38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

44

Tecumseh 33333

Bracket-Cover, Carburetor

$3.99

$

Usually ships in 3-12 days

0

45

Tecumseh 33673

Gasket-Intake
(Superseded to 33673A)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$5.99

$

In Stock, only 2 left!

0

46

Tecumseh 33691

Pipe-Intake

$25.99

$

Usually ships in 3-12 days

0

48

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 9

0

50

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

55

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

56

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

57

Tecumseh 650643

Screw
(Superseded to 650760)

$1.99

$

In Stock, only 3 left!

0

58

Tecumseh 32698

Link-Governor to Throttle

$1.99

$

Usually ships in 3-12 days

0

59

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

61

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

62

Tecumseh 34127

Guard-Starter

$

$

Not available

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 5

0

70

Tecumseh 34813

Housing-Blower
(Superseded to 33663E)

$

$

Not available

71

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

73

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

74

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

76

Tecumseh 650818

Screw ( 5/16-18 x 1-1/2)

$3.99

$

In Stock, only 2 left!

0

77

Tecumseh 8345

Washer

$1.99

$

In Stock, only 2 left!

0

78

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

79

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 4 left!

0

80

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

81

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

83

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

85

Tecumseh 650601

Screw-Fil. Hd.

$

$

Currently unavailable

87

Tecumseh 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$2.99

$

In Stock, Qty 10

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, Qty 5

0

91

Tecumseh 34582

Rod-Choke

$5.49

$

In Stock, only 1 left!

0

92

Tecumseh 34585

Knob-Control
(Superseded to 35438)

$3.99

$

In Stock, only 1 left!

0

93

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 18

0

94

Tecumseh 34583

Bracket-Choke
(Superseded to 34583A)

$12.99

$

In Stock, Qty 7

0

95

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

Usually ships in 3-12 days

0

96

Tecumseh 35072

Cover-Carburetor
(Superseded to 35072B)

$

$

Not available

97

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

102

Tecumseh 33670

Gasket-Exhaust
(Superseded to 35865)

Note: Indicates parts included in Gasket Set, Ref. Num 165.

$2.49

$

In Stock, only 4 left!

0

103

Tecumseh 33697A

Muffler

$40.99

$

Usually ships in 3-12 days

0

104

Tecumseh 650327

Screw-Fil. Hd.
(Superseded to 650327A)

$6.99

$

In Stock, Qty 13

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 10

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

107

Tecumseh 30591

Gear Assy.-Govemor (Incl. Ref. #97)

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

111

Tecumseh 28371B

Plate-Fuel Tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 34182

Bracket-Fuel Tank

$13.99

$

Usually ships in 3-12 days

0

113

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

114

Tecumseh 34711

Tank Assy.-Fuel (Incl. Ref. #115)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

115

Tecumseh 34210

Cap, Fuel

$8.49

$

In Stock, Qty 12

0

116

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

Usually ships in 3-12 days

0

117

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 4 left!

0

119

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

124

Tecumseh 34814

Primer Assy.
(Superseded to 35769)

$14.99

$

Usually ships in 3-12 days

0

128

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, Qty 9

0

129

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

130

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, Qty 5

0

131

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

134

Tecumseh 34694

Cup-Starter

$11.99

$

Usually ships in 3-12 days

0

137

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

142

Tecumseh 650805

Screw Assembly
(Superseded to 650561)

$1.99

$

In Stock, only 2 left!

0

143

Tecumseh 34676

Dipstick-Oil (Incl. Ref. #144)
(Superseded to 34676A)

$15.99

$

Usually ships in 3-12 days

0

144

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 1 left!

0

145

Tecumseh 33893A

Tube Fill

$

$

Not available

148

Tecumseh 610973

Terminal

$3.99

$

In Stock, only 1 left!

0

149

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

150

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

151

Tecumseh 30322

Nut-Lock

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

Usually ships in 3-12 days

0

152

Tecumseh 650139

Screw

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 4 left!

0

153

Tecumseh 34241

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

154

Tecumseh 27261

Washer

$1.99

$

Usually ships in 3-12 days

0

155

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

In Stock, only 1 left!

0

158

Tecumseh 32410

Knob-Control

$5.49

$

In Stock, only 4 left!

0

160

Tecumseh 33858A

Bracket Assy.-Control (Incl. Ref. #148 thru 152)
(Superseded to 36677)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$47.99

$

In Stock, only 1 left!

0

161

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

162

Tecumseh 611030

Magneto (The complete magneto in not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list)

$

$

Currently unavailable

163

Tecumseh 632107

Carburetor (Incl. Ref. #87)
(Superseded to 640084B)

$109.99

$

Usually ships in 3-12 days

0

164

Tecumseh 590576

Starter Assy.-Rewind
(Superseded to 590604)

$

$

Not available

165

Tecumseh 33683

Gasket Set
(Superseded to 33683C)

$20.99

$

In Stock, only 4 left!

0
