38052 (521) - Toro 21" Snow Thrower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

21" Snow Thrower

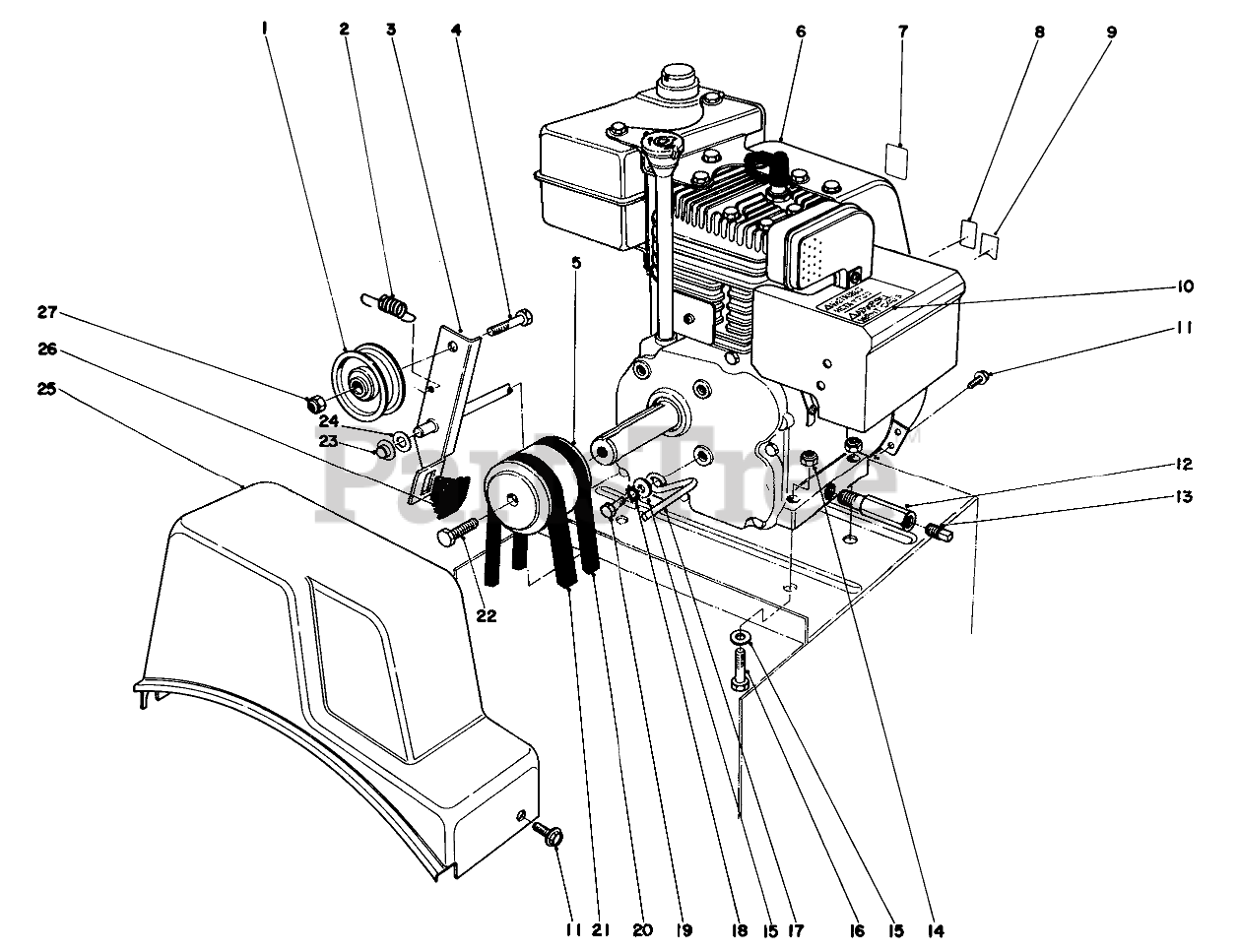

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

2

Toro 10-3890

EXTENSION SPRING

$27.99

$

Usually ships in 3-6 days

0

3

Toro 8-8649

Auger Clutch (Incl. Ref. #26)
(Superseded to 14-7959)

$

$

Not available

4

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 15

0

5

Toro 43-7370

PULLEY-ENGINE

$305.99

$

Usually ships in 3-6 days

0

6

Toro 221-753

Engine

$

$

Not available

7

Toro 39-3860

PRIMER DECAL

$

$

Not available

8

Toro 37-8890

DECAL THROTTLE

$

$

Not available

9

Toro 39-3850

CHOKE DECAL

$

$

Not available

10

Toro 29-6390

Decal Hot Surface Warning
(Superseded to 53-7680)

$

$

Not available

11

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

12

Toro 49-3040

PIPE-NIPPLE

$

$

Not available

13

Toro 281-7

CAP-PIPE

$3.99

$

In Stock, only 1 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 37-8990

RETAINER-BELT

$10.99

$

Usually ships in 3-6 days

0

18

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

19

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

20

Toro 37-9090

V BELT-3L, TRACTION

$16.99

$

In Stock, Qty 5

0

21

Toro 37-9080

V-BELT (29.50 INCH)

$23.99

$

In Stock, Qty 8

0

22

Toro 43-7290

SCREW-SPECIAL

$8.49

$

Usually ships in 3-6 days

0

23

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 37-6900

COVER-BELT

$71.99

$

Usually ships in 3-6 days

0

26

Toro 40-8140

Brake Pad
(Superseded to 66-8060)

$18.99

$

In Stock, Qty 20+

0

27

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0
