38050 (724) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) STARTER MOTOR KIT-MODEL 23-3790 (FOR SNOWTHROWERS MODEL NO. 38040) Parts Diagram

Snow Thrower

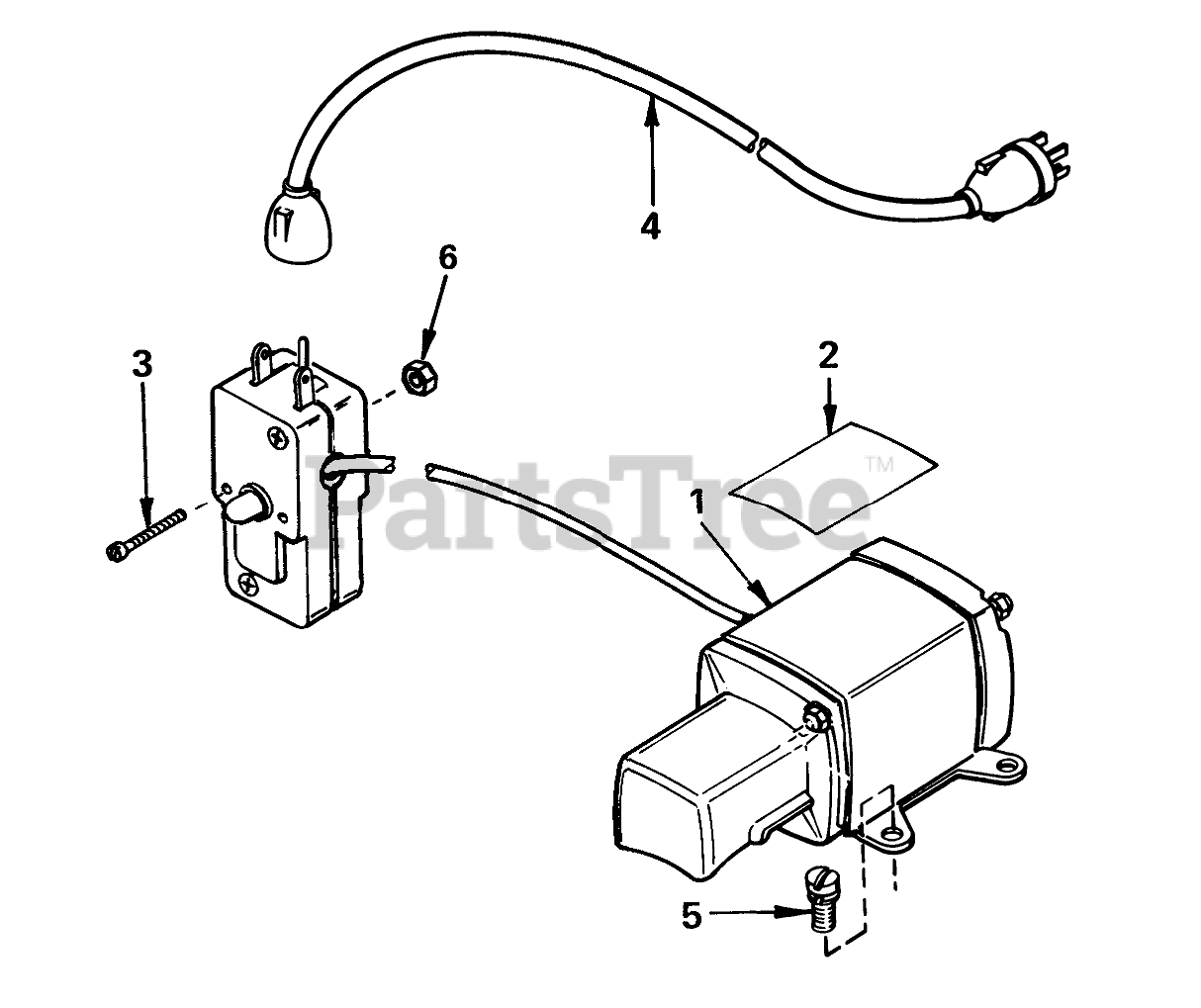

STARTER MOTOR KIT-MODEL 23-3790 (FOR SNOWTHROWERS MODEL NO. 38040) Parts Diagram

  • Title

1

Tecumseh 33517A

Motor, Cranking (CSA Approved) (Incl. #2 thru 6)
(Superseded to 33290E)

Note: Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$278.99

$

In Stock, only 1 left!

0

2

Tecumseh 34161

Decal

Note: Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Currently unavailable

3

Tecumseh 650741

Screw, Pan Hd.
(Superseded to 650819)

Note: Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 32450A

Cord-Extension
(Superseded to 32450B)

Note: Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Not available

5

Tecumseh 650759

Screw (T-30, 1/4-20 x 23/32)

Note: Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

Usually ships in 3-12 days

0

6

Tecumseh 650742

Nut & Lockwasher

Note: Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

In Stock, only 2 left!

0
