38050 (724) - Toro Snow Thrower (SN: 008000001 - 008999999) (1978) STARTER MOTOR KIT-MODEL 23-4410 (FOR SNOWTHROWER MODELS NO. 38050) Parts Diagram

Snow Thrower

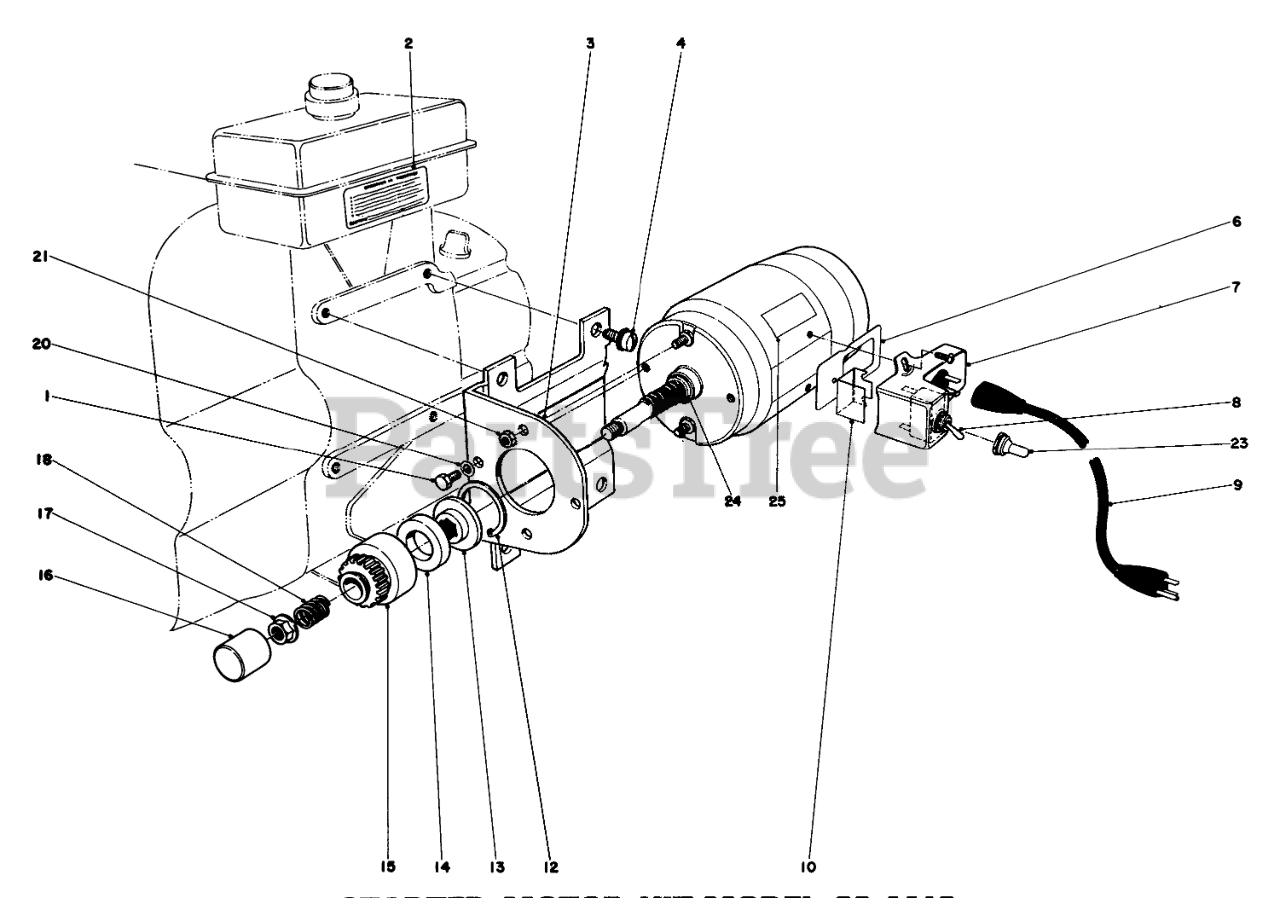

STARTER MOTOR KIT-MODEL 23-4410 (FOR SNOWTHROWER MODELS NO. 38050) Parts Diagram

  • Title

1

Toro 3290-237

SLOT HD SCREW

$0.99

$

Usually ships in 3-6 days

0

2

Toro 21-5140

Instruction Decal

$

$

Not available

3

Toro 23-4610

BRACKET

$72.99

$

Usually ships in 3-6 days

0

4

Toro 32140-27

1/4-20X1/2 HX HD SEMS

$

$

Not available

6

Toro 23-7680

GASKET

$

$

Not available

7

Toro 25-9970

Switch & Plug Housing

$

$

Not available

8

Toro 6-1659

Switch (Incl. Ref. #23)

$83.99

$

Usually ships in 3-6 days

0

9

Toro 20-7050

Cord

$

$

Not available

10

Toro 20-7170

SWITCH INSULATOR

$

$

Not available

12

Toro 3215142

Retaining Clip

$

$

Currently unavailable

13

Toro 20-7140

Pinion Nut
(Superseded to 25-4000)

$

$

Not available

14

Toro 54724

Rubber Ring

$

$

Currently unavailable

15

Toro 20-7130

PINION 16 TOOTH

$

$

Not available

16

Toro 20-7960

WEATHER CAP

$

$

Not available

17

Toro 32128-16

NUT-HHF

$0.99

$

In Stock, only 3 left!

0

18

Toro 20-7120

COMPRESSION SPRING

$

$

Not available

20

Toro 3254-1

WASHER-LOCK, INT

$0.99

$

Usually ships in 3-6 days

0

21

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

23

Toro 218-473

BOOT-SWITCH

$21.99

$

Usually ships in 3-6 days

0

24

Toro 23-9590

Spacer
(Superseded to 23-9591)

$

$

Not available

25

Toro 23-8630

Decal

$

$

Currently unavailable

Toro 23-4410

Starter Motor Complete
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available

Toro 20-7110

Pinion Assembly (Incl. Ref. Nos. 12 thru 15)

Note: Not illustrated

$

$

Not available
