38050 (724) - Toro Snow Thrower (SN: 007000001 - 007999999) (1987) TRACTION ASSEMBLY Parts Diagram

Snow Thrower

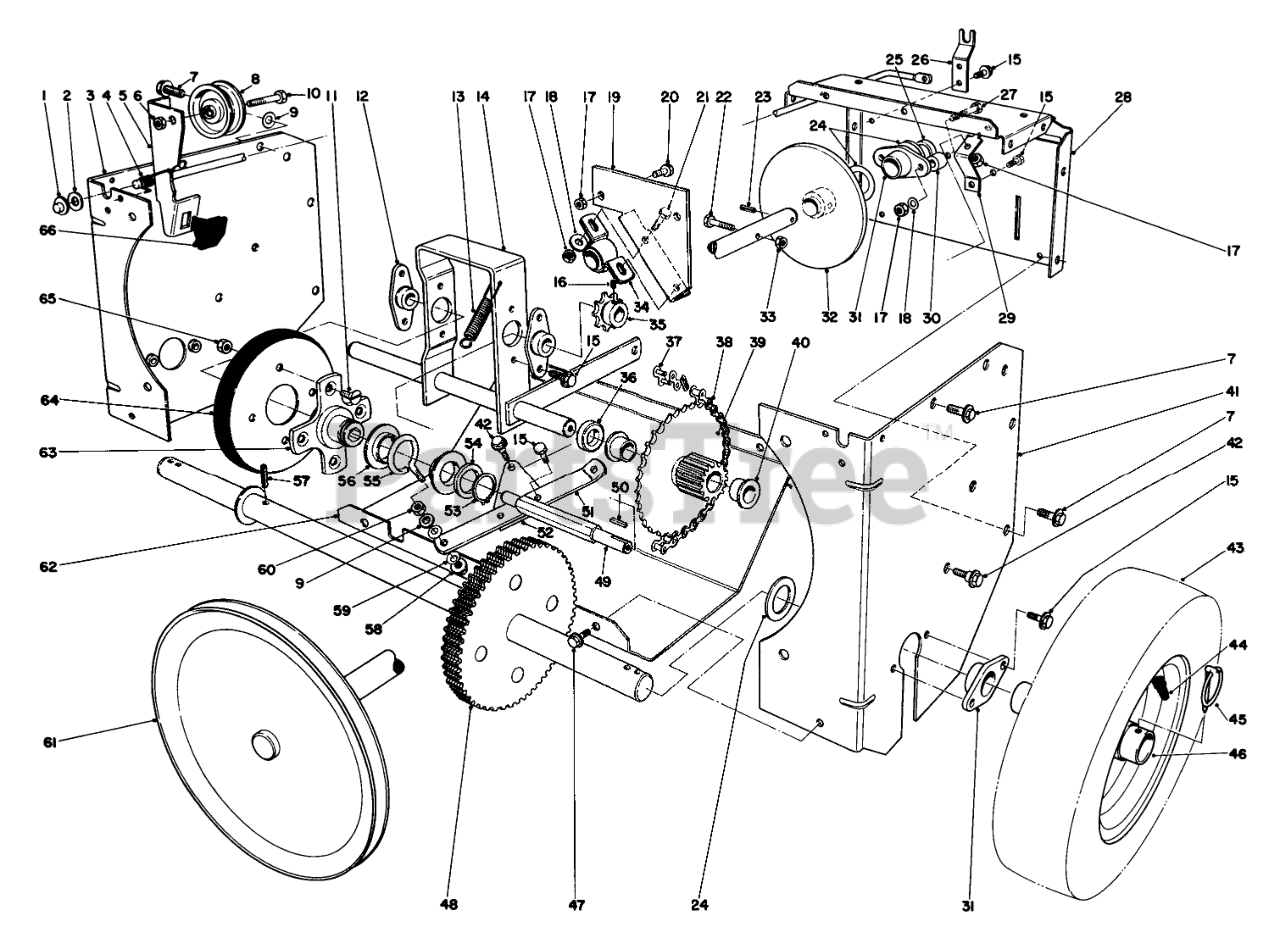

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-383

PUSH NUT
(Superseded to 93-3236)

$

$

Not available

2

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 20-1420

RH TRACT SIDE PLT R

$

$

Not available

4

Toro 20-1160

TORSION CLUTCH SPRING

$19.99

$

In Stock, only 1 left!

0

5

Toro 8-9019

Clutch Rod (Incl. Ref. #66)

$

$

Not available

6

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

7

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

9

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

10

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

12

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$39.99

$

Usually ships in 3-6 days

0

13

Toro 11-4640

TENSION SPRING

$

$

Not available

14

Toro 20-1580

PIVOT SHAFT WA B

$

$

Not available

15

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

16

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 36-9990

SHAFT SUPT BRKT B

$

$

Not available

20

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 15

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 321-33

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

23

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

25

Toro 26-6370

DRIVE SHAFT SPACER

$

$

Not available

26

Toro 20-1080

CLUTCH ROD SUPPORT
(Superseded to 57-8480)

$

$

Not available

27

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

28

Toro 26-6360

CENTER FRAME R

$

$

Not available

29

Toro 20-1760

PIVOT BRACKET

$

$

Not available

30

Toro 26-6380

BRG STANDOFF

$

$

Not available

31

Toro 20-1730

AXLE BEARING

$46.99

$

In Stock, Qty 10

0

32

Toro 20-1550

FRICTION PLT WA
(Superseded to 20-1550-03)

$

$

Not available

33

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

34

Toro 36-9980

PILLOW BLOCK BRG

$88.99

$

In Stock, only 1 left!

0

35

Toro 5-9820

SPROCKET

$100.99

$

Usually ships in 3-6 days

0

36

Toro 3-7384

COSHAFT SPACER

$

$

Not available

37

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

38

Toro 20-1810

ROLLER-CHAIN

$93.99

$

Usually ships in 3-6 days

0

39

Toro 20-1640

Gear & Bushing (Incl. Ref. #40)
(Superseded to 94-8856)

$181.99

$

Usually ships in 3-6 days

0

40

Toro 3-1506

BUSHING

$2.99

$

Usually ships in 3-6 days

0

41

Toro 20-1430

LH TRACT SIDE PLT R

$

$

Not available

42

Toro 11-8140

SHOULDER SCREW

$

$

Not available

43

Toro 231-80

Tire
(Superseded to 99-3240)

$

$

Not available

43

Toro 231-120

TIRE

$299.99

$

Usually ships in 3-6 days

0

44

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

44

Toro 232-46

TUBE-INNER

$37.99

$

Usually ships in 3-6 days

0

45

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

Usually ships in 3-6 days

0

46

Toro 20-1750

Wheel
(Superseded to 241-128)

$210.99

$

Usually ships in 3-6 days

0

46

Toro 241-124

Wheel
(Superseded to 241-128)

$210.99

$

Usually ships in 3-6 days

0

47

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

48

Toro 20-1680

AXLE & GEAR WA

$

$

Not available

49

Toro 20-1630

FRICTION WHL SHAFT

$112.99

$

In Stock, only 1 left!

0

50

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

51

Toro 20-1780

SHIFT LINKAGE

$

$

Not available

52

Toro 20-1770

PIVOT PLATE

$

$

Not available

53

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

54

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, Qty 6

0

55

Toro 11-8050

SLIDER RING COLLAR
(Superseded to 78-1790)

$63.99

$

Usually ships in 3-6 days

0

56

Toro 11-8080

SLIDER RING

$

$

Not available

57

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

58

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

59

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

60

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

61

Toro 22-7930

PULLEY/SHFT WA

$339.99

$

Usually ships in 3-6 days

0

62

Toro 20-1840

LOWER SHIELD R

$142.99

$

Usually ships in 3-6 days

0

63

Toro 20-3310

TRACTION DISC HUB

$

$

Not available

64

Toro 40-8170

FRICTION WHEEL

$85.99

$

In Stock, only 3 left!

0

65

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

66

Toro 40-8140

Brake Pad
(Superseded to 66-8060)

$18.99

$

In Stock, Qty 20+

0

Toro 20-9800

Tire Chain Kit
(Superseded to 62-7630)

Note: Not illustrated

$

$

Not available

Toro 20-9800

Tire Chain Kit
(Superseded to 62-7630)

Note: Optional equipment

$

$

Not available

Toro 56-2700

Chains-Tire

Note: Optional equipment

$195.99

$

Usually ships in 3-6 days

0

Toro 56-2700

Chains-Tire

Note: Not illustrated

$195.99

$

Usually ships in 3-6 days

0

Toro 232-36

TUBE

Note: Not illustrated

$

$

Not available

Toro 232-36

TUBE

Note: Optional equipment

$

$

Not available

Toro 12-0169

Loose Parts

Note: Not illustrated

$

$

Not available

Toro 12-0179

Loose Parts Kit

Note: Not illustrated

$

$

Not available
