38050 (724) - Toro Snow Thrower (SN: 006000001 - 006999999) (1986) STARTER MOTOR KIT-MODEL 38-7590 (OPTIONAL) Parts Diagram

Snow Thrower

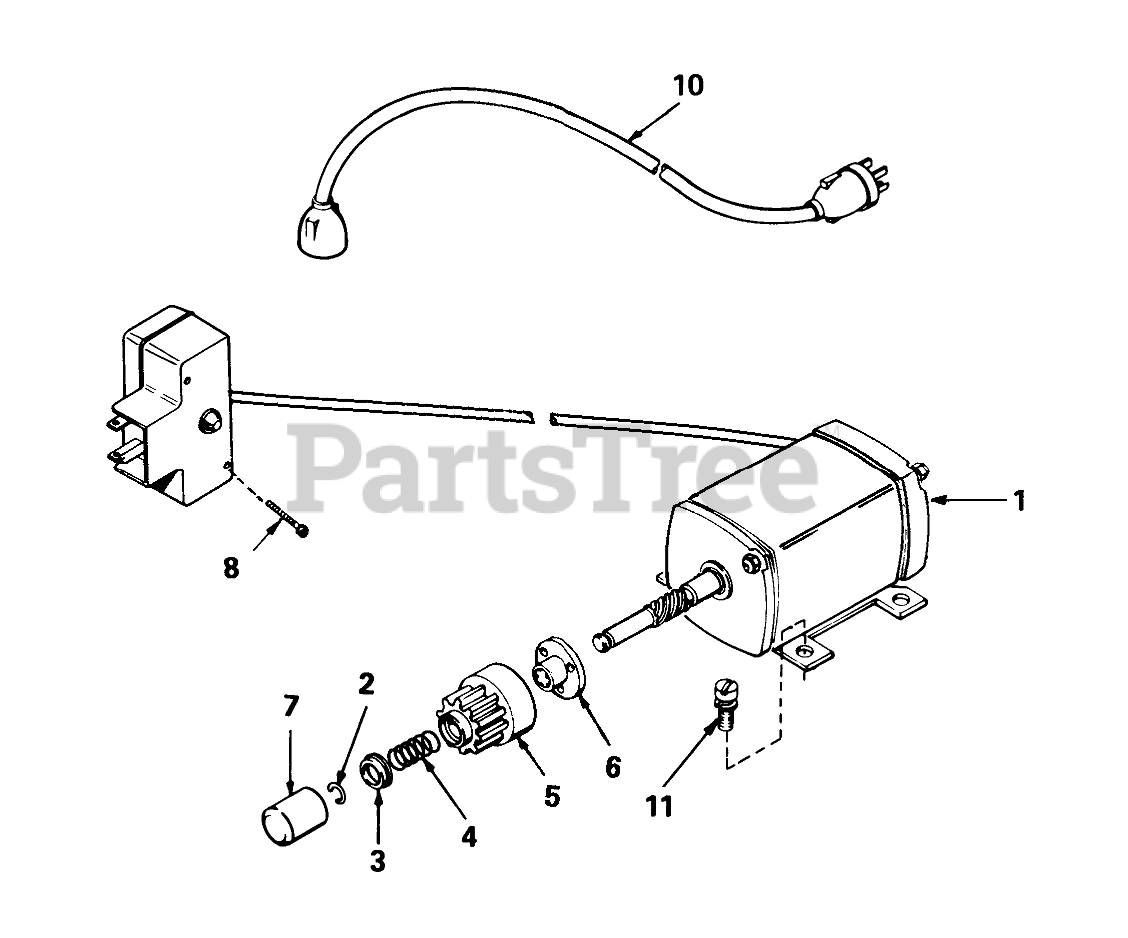

STARTER MOTOR KIT-MODEL 38-7590 (OPTIONAL) Parts Diagram

  • Title

1

Tecumseh 33518B

Motor, Cranking (CSA Approved) (Incl. Ref. #2 thru 11)
(Superseded to 33328D)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$249.48

$

Usually ships in 3-12 days

0

2

Tecumseh 33842

Ring-Retainer

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$3.99

$

In Stock, Qty 5

0

3

Tecumseh 33430

Retainer-Spring
(Superseded to 33843)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$7.99

$

In Stock, only 1 left!

0

4

Tecumseh 33431

Spring-Anti Drift

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$3.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33432

Gear

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$40.99

$

Usually ships in 3-12 days

0

6

Tecumseh 33433

Nut-Engaging
(Superseded to 33433A)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$19.99

$

Usually ships in 3-12 days

0

7

Tecumseh 33451

Cover-Dust

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$3.49

$

In Stock, only 4 left!

0

8

Tecumseh 650819

Screw

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

Usually ships in 3-12 days

0

10

Tecumseh 32450B

Cord-Extension (10-6)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Not available

11

Tecumseh 33063

Screw, Hex Washer Hd.
(Superseded to 33063A)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Currently unavailable
