38050 (724) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) STARTER MOTOR KIT-MODEL 38-7590 (OPTIONAL) Parts Diagram

Snow Thrower

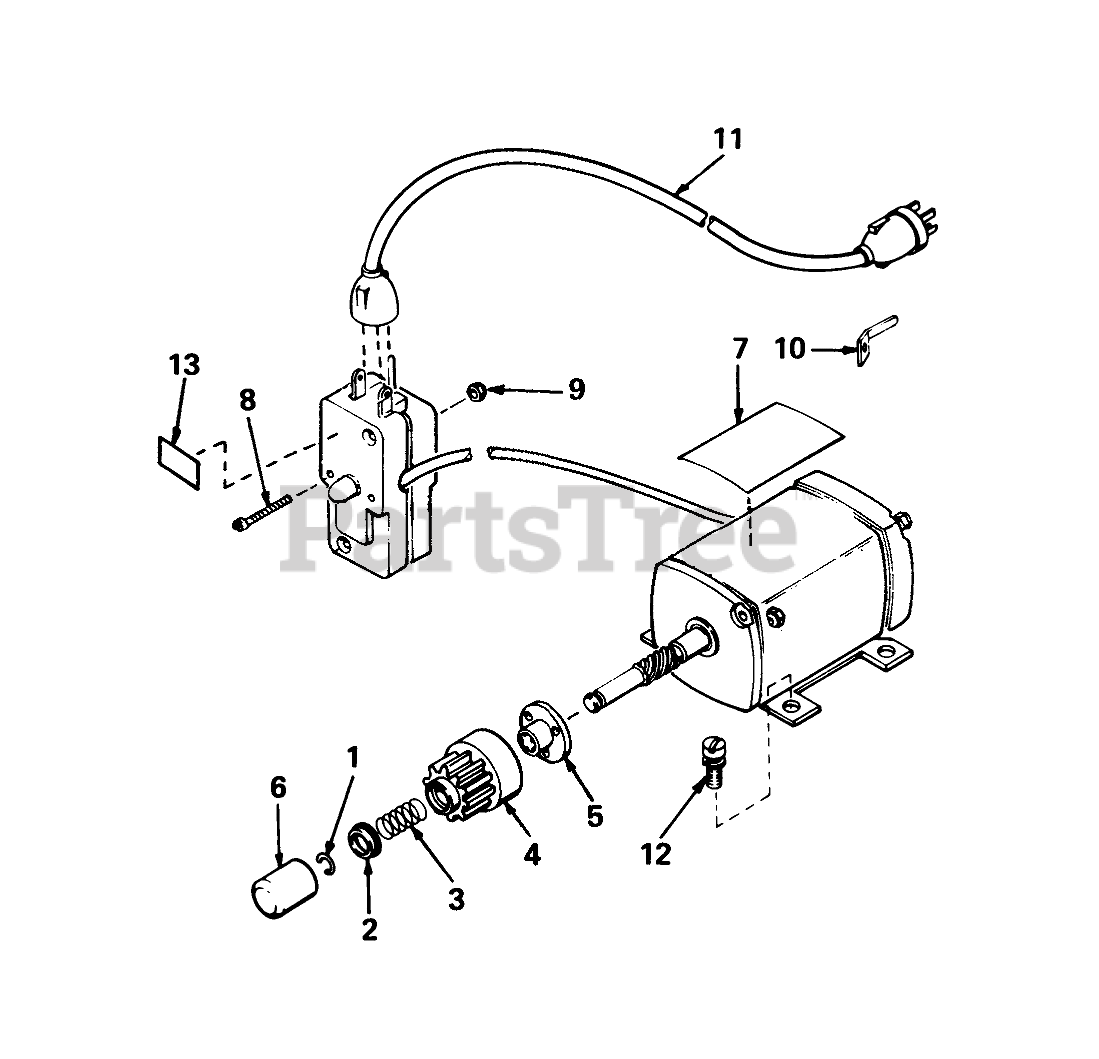

STARTER MOTOR KIT-MODEL 38-7590 (OPTIONAL) Parts Diagram

  • Title

1

Tecumseh 33842

Ring-Retainer

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$3.99

$

In Stock, Qty 5

0

2

Tecumseh 33430

Retainer-Spring
(Superseded to 33843)

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$7.99

$

In Stock, only 1 left!

0

3

Tecumseh 33431

Spring-Anti Drift

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 33432

Gear

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$40.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33433

Nut-Engaging
(Superseded to 33433A)

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$19.99

$

Usually ships in 3-12 days

0

6

Tecumseh 33451

Cover-Dust

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$3.49

$

In Stock, only 4 left!

0

7

Tecumseh 34179

Decal

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable

8

Tecumseh 650741

Screw, Pan Hd.
(Superseded to 650819)

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$1.99

$

Usually ships in 3-12 days

0

9

Tecumseh 650742

Nut & Lockwasher

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$1.99

$

In Stock, only 2 left!

0

10

Tecumseh 32704

Clip

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable

11

Tecumseh 32450A

Cord-Extension
(Superseded to 32450B)

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Not available

12

Tecumseh 30063

Screw

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$1.99

$

In Stock, Qty 20+

0

13

Tecumseh 34161

Decal

Note: Note Obtain individual replacement Parts from your local Tecumseh Dealer.

$

$

Currently unavailable
