38045 - Husqvarna Walk-Behind Mower (Original) DRIVE Parts Diagram

Walk-Behind Mower

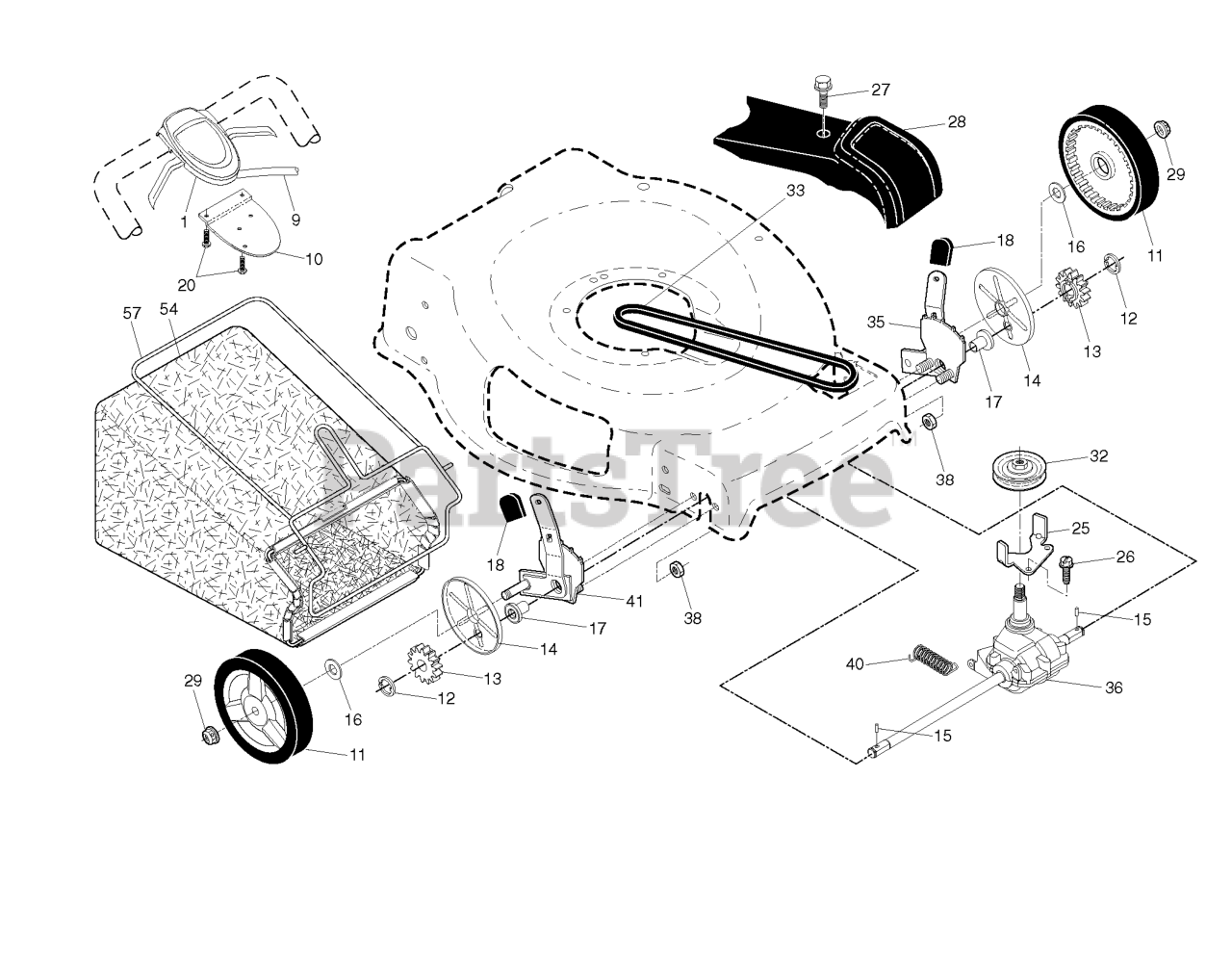

DRIVE Parts Diagram

  • Title

28

Husqvarna 532421097

COVER.DRIVE.22.LABEL.HUSQVARNA

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532421836

BEARING.ASM.
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 7

0

29

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 532431142

ADJUSTER.ASM.9.22+/RF/LR.21/LF
(Superseded to 581497908)

Note: INCLUDES BEARING, KEY #17

$22.99

$

In Stock, Qty 8

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

33

Husqvarna 532426609

BELT.DRIVE.FWD.
(Superseded to 532196853)

$20.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532431144

ADJUSTER.ASM.9.22+/RF/LR.21/RF
(Superseded to 581497907)

Note: INCLUDES BEARING, KEY #17

$

$

Not available

14

Husqvarna 581840401

COVER.DUST.WHEEL.INNER.WALK

$6.99

$

In Stock, Qty 5

0

15

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 6

0

57

Husqvarna 532419951

RB FRAME.GBAG.22PLUS
(Superseded to 585054702)

$34.99

$

In Stock, Qty 10

0

36

Husqvarna 532424657

TRANSMISSION.22PLUS.FGD.AW2/EZ
(Superseded to 589600601)

$125.99

$

In Stock, only 2 left!

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

32

Husqvarna 532443262

RP PULLEY.DRIVE.EZ/VAR.SCREWON

$13.99

$

In Stock, only 1 left!

0

9

Husqvarna 532431649

CABLE.CONTROL.22FGD.GEN2

$60.99

$

In Stock, only 3 left!

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 8

0

1

Husqvarna 579708920

CONTROL.AW2.22FGD.STR.GRY/BLK

$

$

Not available

25

Husqvarna 532431711

BRACKET.BELT.GUIDE.22+FGD.BZP

$

$

Not available

40

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

54

Husqvarna 532438584

GBAG.A3610247T.SILV.HUSWT.BLUE
(Superseded to 580947307)

$87.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0
