38045 (524) - Toro Snow Thrower (SN: 005000001 - 005999999) (1985) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

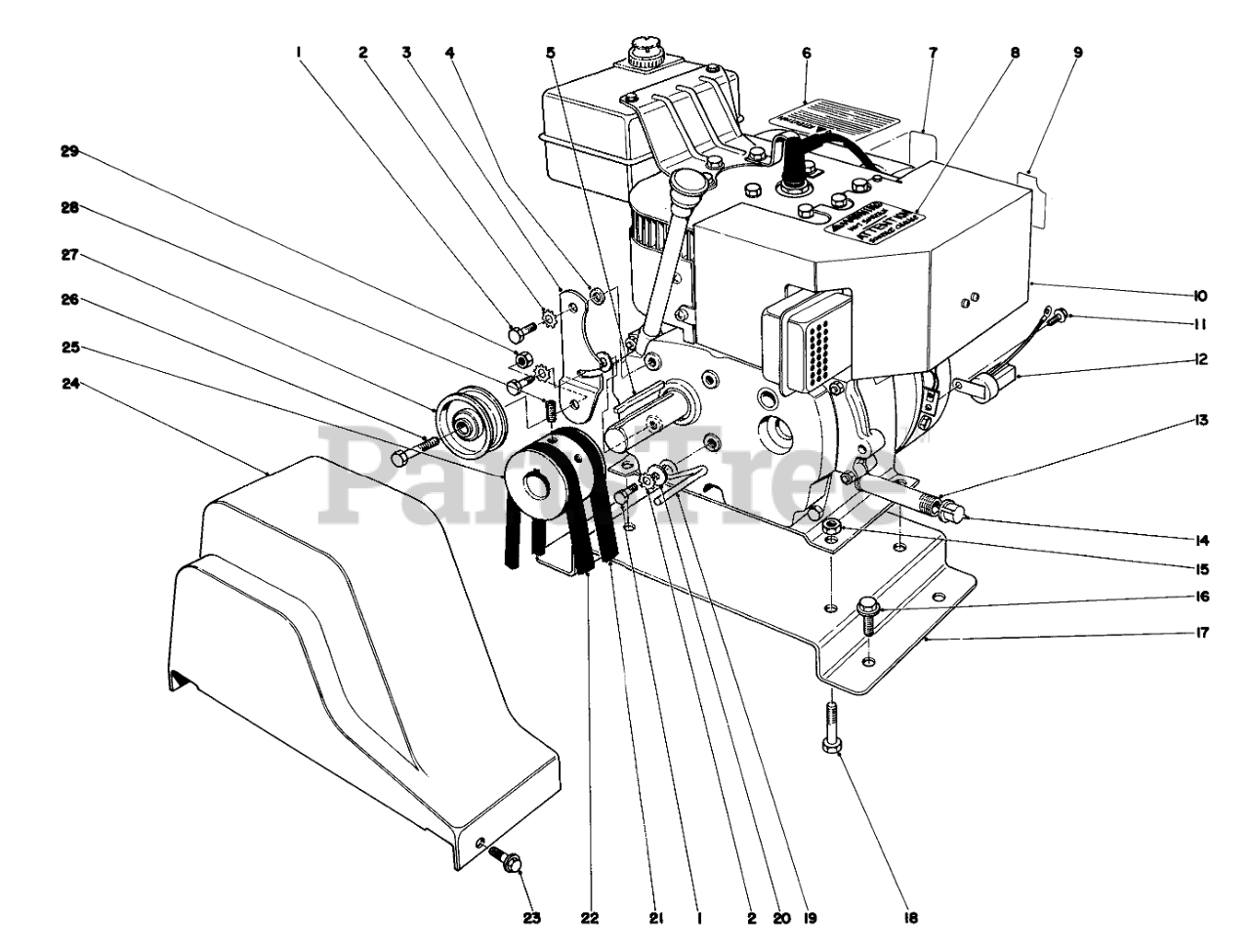

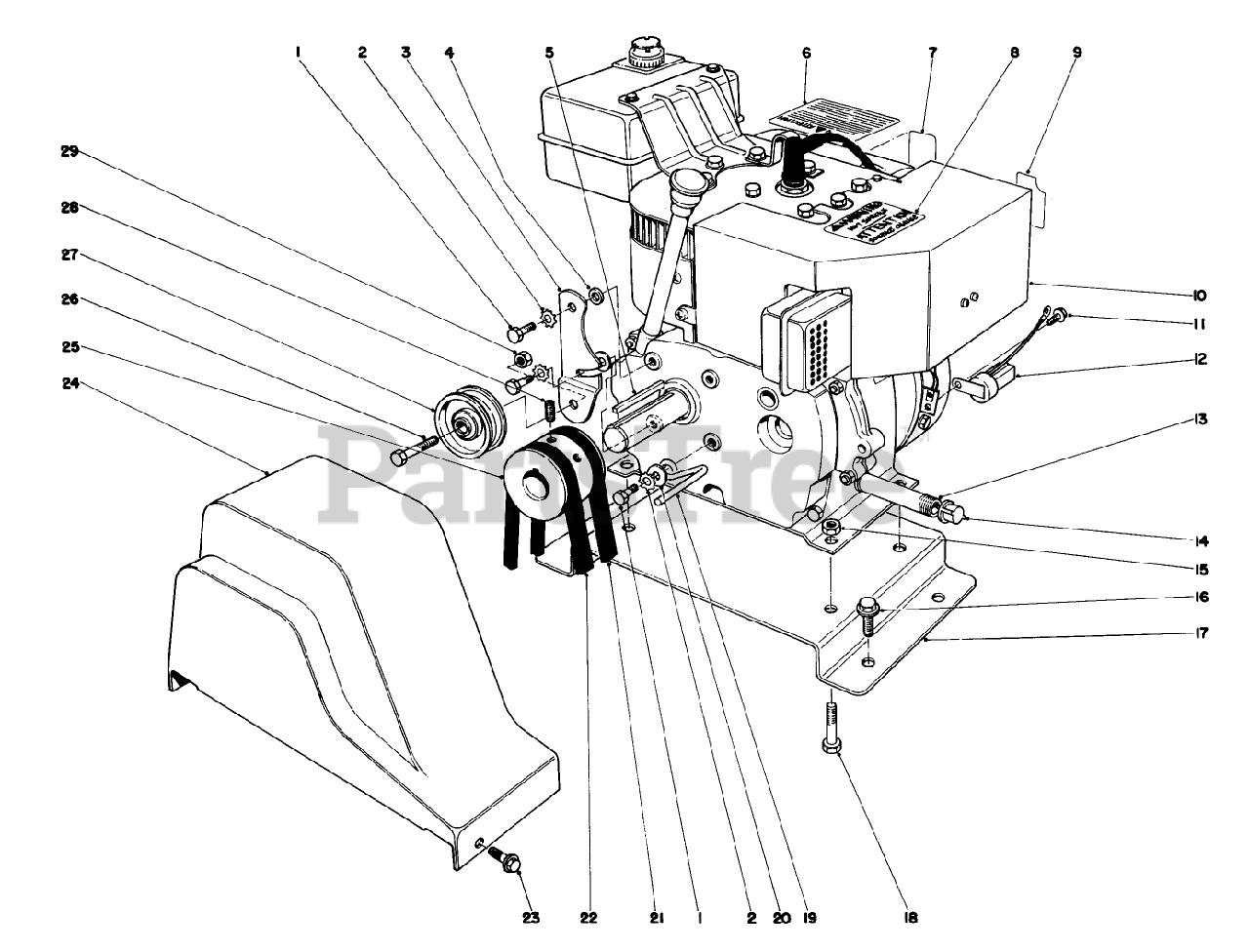

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

3

Toro 20-1800

ENGINE IDLER ARM

$

$

Not available

4

Toro 40-8490

SPACER

$

$

Not available

5

Toro 5-0930

KEY

$

$

Not available

6

Toro 39-7200

HAZARDS CAUTION DECAL
(Superseded to 54-9750)

$

$

Not available

7

Toro 39-7110

Decal-Primer

$

$

Not available

8

Toro 39-7100

Decal
(Superseded to 53-7680)

$

$

Not available

9

Toro 42-1730

CHOKE DECAL

$

$

Not available

10

Toro 221-674

Engine

$

$

Currently unavailable

11

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0

12

Toro 41-8600

INTERLOCK MODULE

$125.99

$

Usually ships in 3-6 days

0

13

Toro 289-34

NIPPLE-PIPE

$40.99

$

Usually ships in 3-6 days

0

14

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

17

Toro 25-5990

ENG MTG PLATE R

$

$

Not available

18

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 15

0

19

Toro 17-5530

BELT RETAINER

$

$

Not available

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 20-1820

V-BELT

$25.99

$

In Stock, only 3 left!

0

22

Toro 26-9670

V-BELT

$28.99

$

In Stock, Qty 9

0

23

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

24

Toro 20-1830

BELT GUARD

$

$

Not available

25

Toro 21-4100

ENGINE PULLEY

$

$

Not available

26

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 15

0

27

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

28

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

29

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0
