38045 (524) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

Snow Thrower

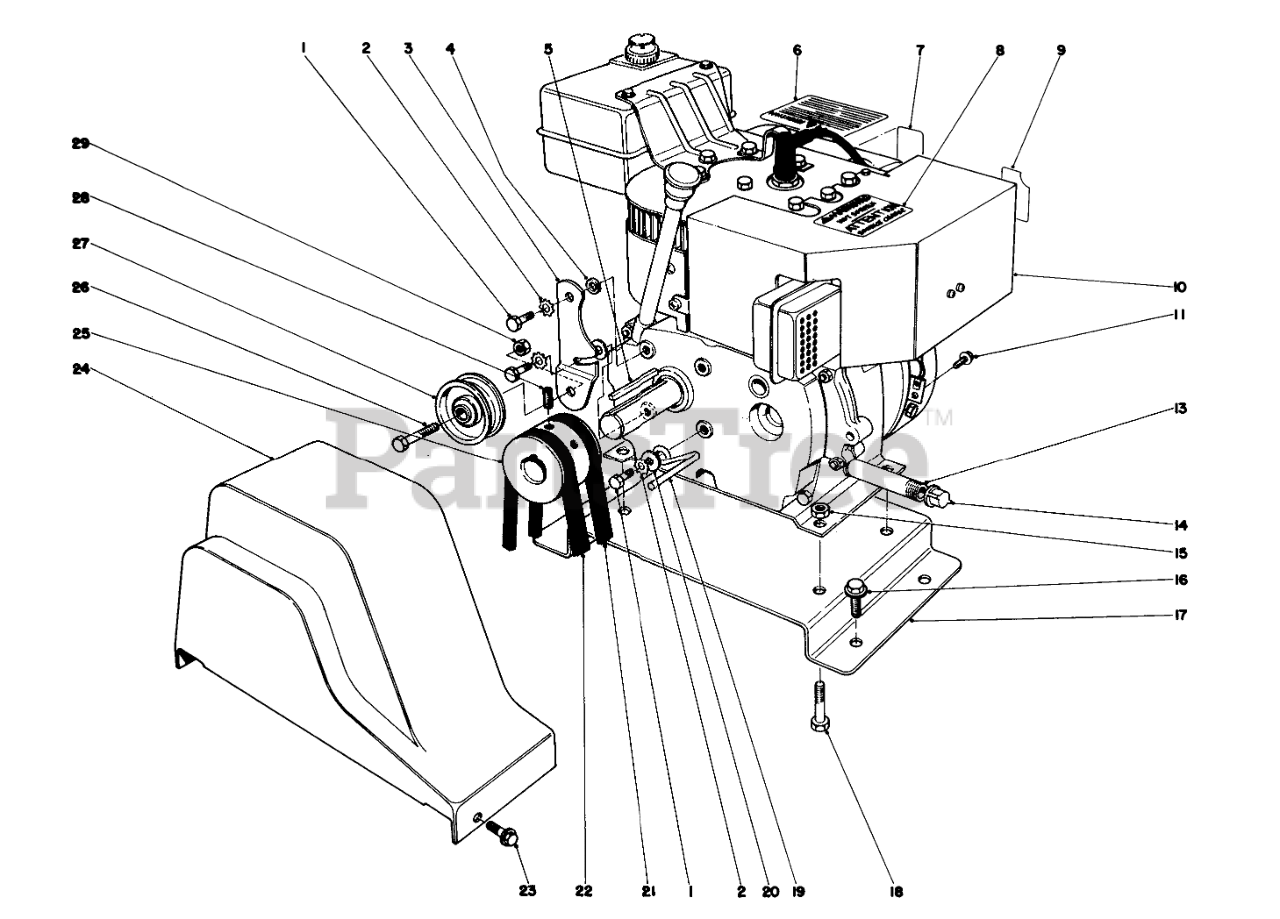

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

3

Toro 20-1800

ENGINE IDLER ARM

$

$

Not available

4

Toro 40-8490

SPACER

$

$

Not available

5

Toro 5-0930

KEY

$

$

Not available

7

Toro 221-674

Engine

$

$

Currently unavailable

8

Toro 39-7110

Decal-Primer

$

$

Not available

9

Toro 42-1730

CHOKE DECAL

$

$

Not available

10

Toro 39-7100

Decal
(Superseded to 53-7680)

$

$

Not available

11

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

13

Toro 289-34

NIPPLE-PIPE

$40.99

$

Usually ships in 3-6 days

0

14

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

17

Toro 25-5990

ENG MTG PLATE R

$

$

Not available

18

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

19

Toro 17-5530

BELT RETAINER

$

$

Not available

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Toro 20-1820

V-BELT

$25.99

$

In Stock, only 1 left!

0

22

Toro 26-9670

V-BELT

$28.99

$

In Stock, only 2 left!

0

23

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

24

Toro 20-1830

BELT GUARD

$

$

Not available

25

Toro 214100

Pulley

$

$

Currently unavailable

26

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 16

0

27

Toro 34244

Idler Pulley

$

$

Currently unavailable

28

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$13.99

$

Usually ships in 3-6 days

0

29

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0
