38045 (524) - Toro Snow Thrower (SN: 000000001 - 000999999) (1980) TRACTION ASSEMBLY Parts Diagram

Snow Thrower

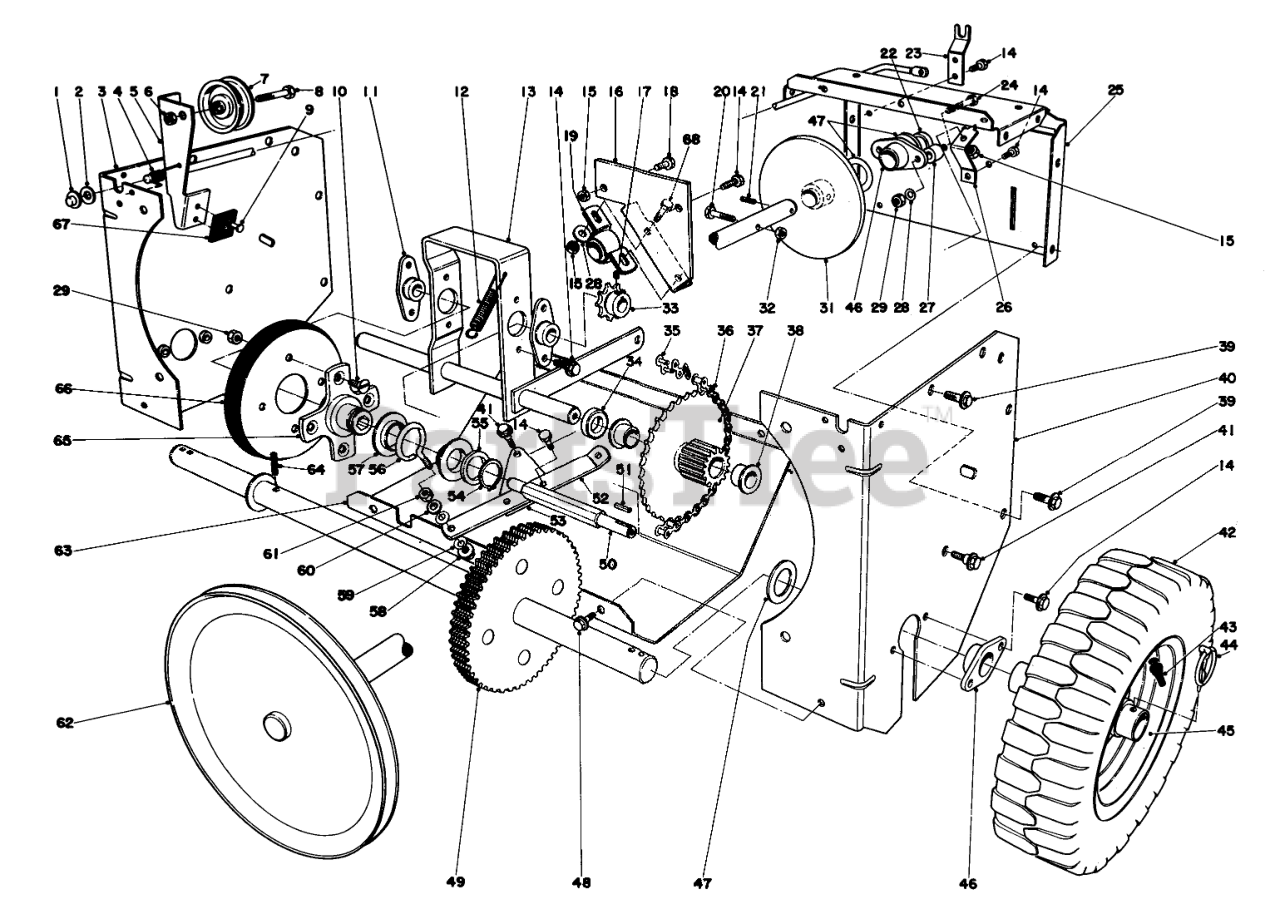

TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-383

PUSH NUT
(Superseded to 93-3236)

$

$

Not available

2

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 20-1420

RH TRACT SIDE PLT R

$

$

Not available

4

Toro 20-1160

TORSION CLUTCH SPRING

$19.99

$

In Stock, only 2 left!

0

5

Toro 25-5950

Clutch Rod (Incl. Ref. #9&67)

$

$

Not available

6

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

7

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

8

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 16

0

9

Toro 3295-23

.185 DIA X .375 RT +

$11.99

$

Usually ships in 3-6 days

0

10

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

11

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$39.99

$

In Stock, only 2 left!

0

12

Toro 11-4640

TENSION SPRING

$

$

Not available

13

Toro 20-1580

PIVOT SHAFT WA B

$

$

Not available

14

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 36-9990

SHAFT SUPT BRKT B

$

$

Not available

17

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

18

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

19

Toro 36-9980

PILLOW BLOCK BRG

$88.99

$

In Stock, only 1 left!

0

20

Toro 321-33

SCREW-HH

$8.99

$

In Stock, only 1 left!

0

21

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

22

Toro 26-6370

DRIVE SHAFT SPACER

$

$

Not available

23

Toro 20-1080

CLUTCH ROD SUPPORT
(Superseded to 57-8480)

$

$

Not available

24

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

25

Toro 26-6360

CENTER FRAME R

$

$

Not available

26

Toro 20-1760

PIVOT BRACKET

$

$

Not available

27

Toro 26-6380

BRG STANDOFF

$

$

Not available

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 20-1550

FRICTION PLT WA
(Superseded to 20-1550-03)

$

$

Not available

32

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 2 left!

0

33

Toro 5-9820

SPROCKET

$100.99

$

Usually ships in 3-6 days

0

34

Toro 3-7384

COSHAFT SPACER

$

$

Not available

35

Toro 2710-11

LINK-CHAIN

$6.49

$

In Stock, only 1 left!

0

36

Toro 20-1810

ROLLER-CHAIN

$93.99

$

Usually ships in 3-6 days

0

37

Toro 20-1640

Gear & Bushing (Incl. Ref. #38)
(Superseded to 94-8856)

$181.99

$

Usually ships in 3-6 days

0

38

Toro 3-1506

BUSHING

$2.99

$

Usually ships in 3-6 days

0

39

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

40

Toro 20-1430

LH TRACT SIDE PLT R

$

$

Not available

41

Toro 11-8140

SHOULDER SCREW

$

$

Not available

42

Toro 231-80

Tire
(Superseded to 99-3240)

$

$

Not available

43

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

44

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

45

Toro 20-1750

Wheel
(Superseded to 241-128)

$210.99

$

Usually ships in 3-6 days

0

46

Toro 20-1730

AXLE BEARING

$46.99

$

In Stock, Qty 10

0

47

Toro 3-0737

WASHER

$9.49

$

In Stock, only 3 left!

0

48

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

49

Toro 20-1680

AXLE & GEAR WA

$

$

Not available

50

Toro 20-1630

FRICTION WHL SHAFT

$112.99

$

In Stock, only 1 left!

0

51

$12.99

$

In Stock, only 2 left!

0

52

Toro 20-1780

SHIFT LINKAGE

$

$

Not available

53

Toro 20-1770

PIVOT PLATE

$

$

Not available

54

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

55

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

56

Toro 11-8050

SLIDER RING COLLAR
(Superseded to 78-1790)

$63.99

$

Usually ships in 3-6 days

0

57

Toro 11-8080

SLIDER RING

$

$

Not available

58

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

59

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

60

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 3 left!

0

61

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

62

Toro 22-7930

PULLEY/SHFT WA

$339.99

$

In Stock, only 1 left!

0

63

Toro 20-1840

LOWER SHIELD R

$142.99

$

Usually ships in 3-6 days

0

64

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

65

Toro 20-3310

TRACTION DISC HUB

$

$

Not available

66

Toro 3-5461

Disc
(Superseded to 40-8170)

$85.99

$

In Stock, only 4 left!

0

67

Toro 20-3100

BRAKE PAD
(Superseded to 66-8050)

$

$

Not available

68

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

Toro 20-9800

Tire Chain Kit
(Superseded to 62-7630)

Note: Optional equipment

$

$

Not available

Toro 8-6829

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 232-36

TUBE

Note: Optional equipment

$

$

Not available

Toro 232-36

TUBE

Note: Not illustrated

$

$

Not available
