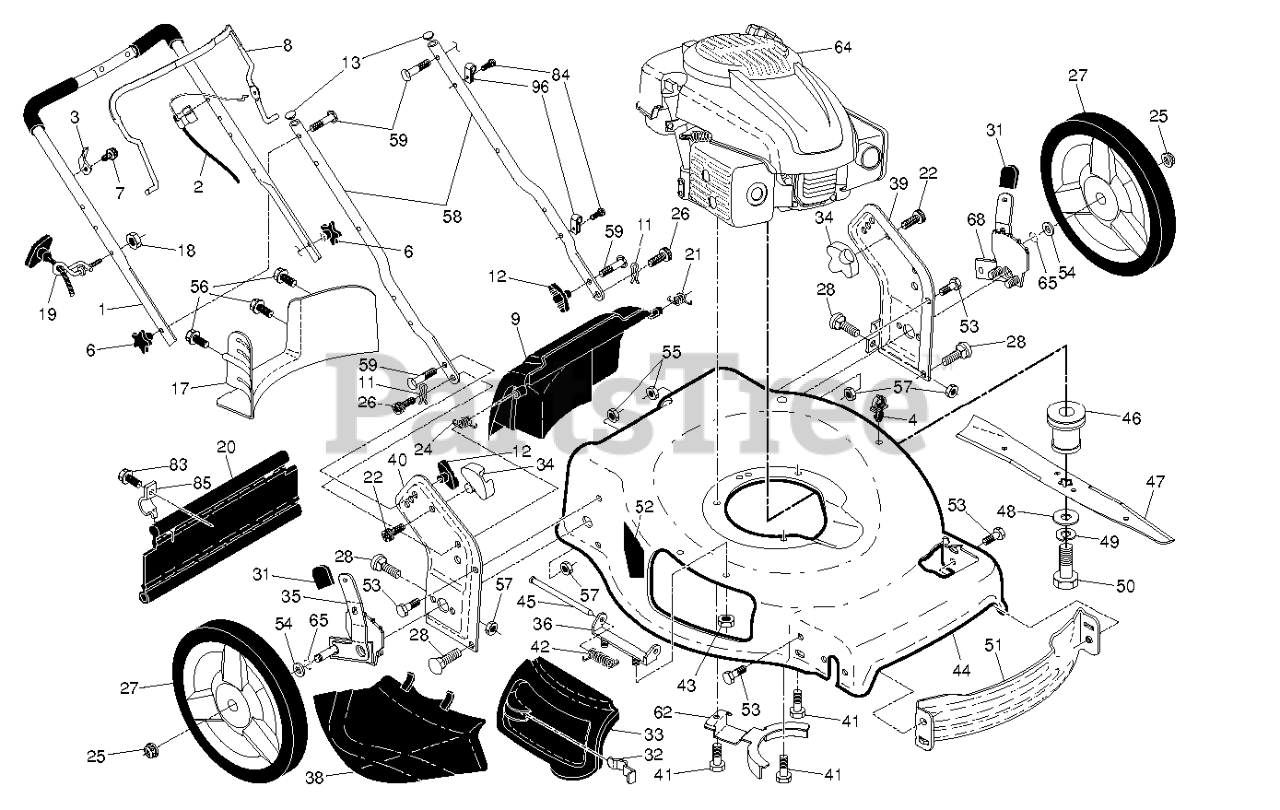

38045 (380451) - Husqvarna Walk-Behind Mower (2012-01) FRAME Parts Diagram

Walk-Behind Mower

FRAME Parts Diagram

  • Title

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 13

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$11.99

$

In Stock, Qty 9

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 594942002)

$10.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532440510

$

$

Currently unavailable

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

7

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

27

Husqvarna 532448173

WHEEL.12X1.75.CF.H3SPKRAD3
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532433430

BAIL.MZR.EZ2.DSTR.22+.ORG.E

$15.99

$

Usually ships in 3-10 days

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

68

Husqvarna 532431141

ADJUSTER.ASM.9POS.HW.R/L

Note: REAR, LEFT

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

21

Husqvarna 532419949

SPRING.LH.BLACK

$6.49

$

In Stock, Qty 10

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 2 left!

0

35

Husqvarna 532431140

ADJUSTER.ASM.9POS.HW.R/R

Note: REAR, RIGHT

$26.99

$

In Stock, only 1 left!

0

55

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

64

000000000

Note: KOHLER XT173-0084 FOR SERVICE & PARTS 1-800-544-2444

$

$

Not available

20

Husqvarna 532429157

SKIRT.REAR.22PLUS.RGD/FGD.NEW

$17.99

$

In Stock, only 1 left!

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532445019

KNOB.WING.PLASTIC.BLACK
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

39

Husqvarna 532442531

BRACKET.HANDLE.LT.22+.W/DP.GRE
(Superseded to 581353702)

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

40

Husqvarna 532440526

RP.BRACKET.ASM.HANDLE.RT.22+.
(Superseded to 581353602)

$

$

Not available

28

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

1

Husqvarna 532427658

HANDLE.ASM.GRY.W/GRIP

$60.99

$

In Stock, only 1 left!

0

46

Husqvarna 532421782

ADPTER.BLAD.25M.VS.22PLU.STAR
(Superseded to 581473301)

$17.99

$

In Stock, Qty 13

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

$

$

Not available

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 7

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532427307

BAFFLE.22PLUS.FGD.REAR.

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532425923

CABLE.MZR.47.75.SNAP-IN.PU.L

$18.99

$

In Stock, only 1 left!

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, only 4 left!

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

24

Husqvarna 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, Qty 5

0

54

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 5

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532420463

BLADE.22PLUS

$22.99

$

In Stock, only 3 left!

0

31

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, only 4 left!

0

62

Husqvarna 532425711

BRACKET.KEEPER.BELT

$

$

Not available

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 11

0

4

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0
