38035 (3521) - Toro Snow Thrower (SN: 006000001 - 006999999) (1986) STARTER MOTOR KIT NO. 23-3790 Parts Diagram

Snow Thrower

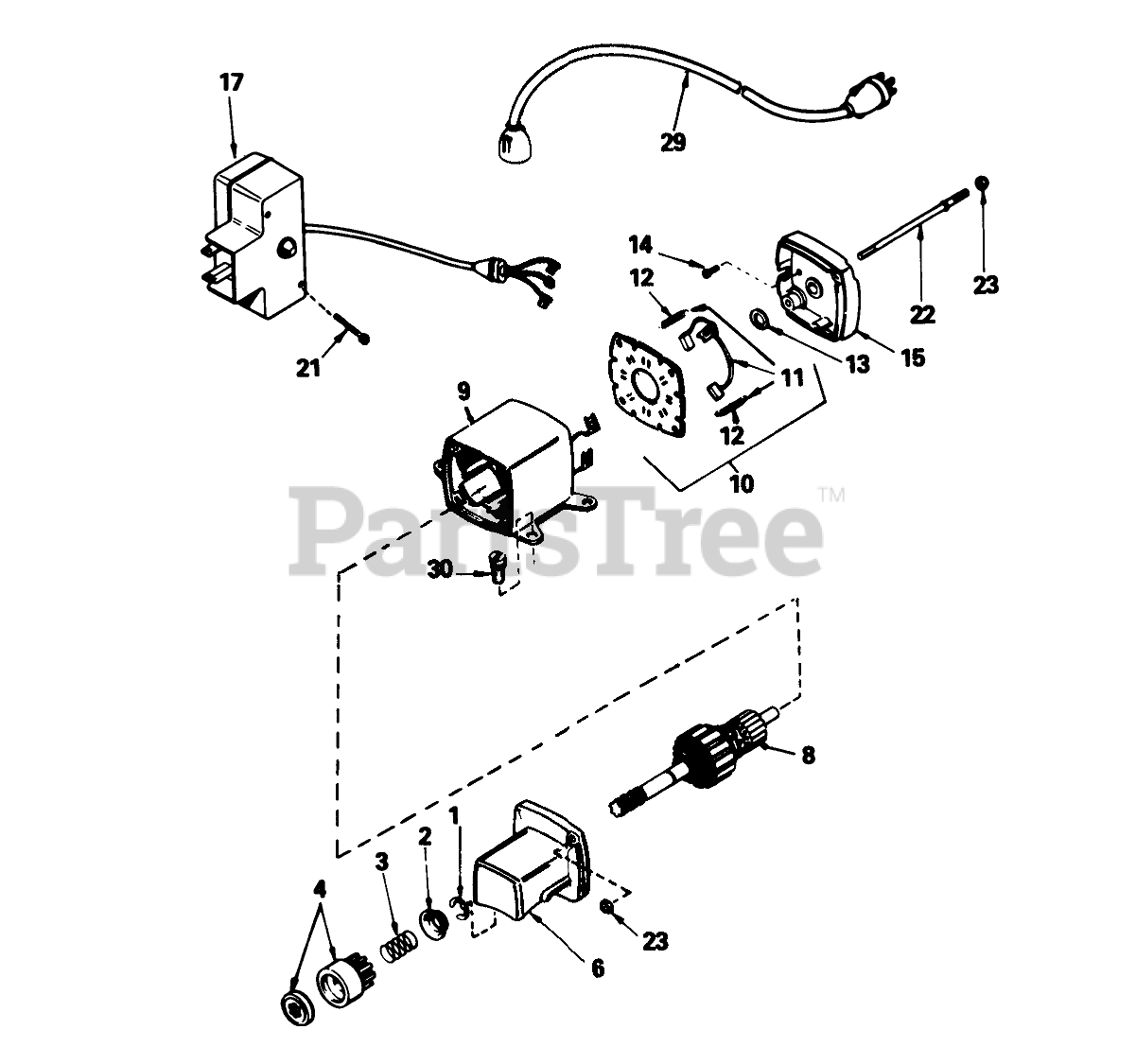

STARTER MOTOR KIT NO. 23-3790 Parts Diagram

  • Title

1

Tecumseh 32738

Ring-Retainer
(Superseded to 31749)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

Usually ships in 3-12 days

0

2

Tecumseh 33522

Retainer-Spring

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$5.99

$

Usually ships in 3-12 days

0

3

Tecumseh 33769

Spring-Anti Drift

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$3.99

$

In Stock, only 2 left!

0

4

Tecumseh 33524

Nut & Gear
(Superseded to 37332)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$56.99

$

Usually ships in 3-12 days

0

6

Tecumseh 33526

Cap Assy.-Drive End

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$41.99

$

Usually ships in 3-12 days

0

8

Tecumseh 33527

Armature

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Currently unavailable

9

Tecumseh 33528

Housing Assy.

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Currently unavailable

10

Tecumseh 33438

Card Assy.-Brush (Incl. Ref. #11)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Currently unavailable

11

Tecumseh 33439

Brush & Spring Kit (Incl. Ref. #12)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$61.99

$

Usually ships in 3-12 days

0

12

Tecumseh 33440

1545D SUP TO W/3256

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$3.99

$

Usually ships in 3-12 days

0

13

Tecumseh 590500

Washer-Thrust

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

In Stock, only 1 left!

0

14

Tecumseh 33441

Screw-Ground

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Not available

15

Tecumseh 33442

Cap Assy.-Commutator End

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Currently unavailable

17

Tecumseh 34665

Box Assy.-Switch

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Currently unavailable

21

Tecumseh 650819

Screw

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

In Stock, only 3 left!

0

22

Tecumseh 33529

Bolt

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Not available

23

Tecumseh 33450

Nut-Lock
(Superseded to 651016)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

In Stock, Qty 5

0

29

Tecumseh 32450

Cord, Extension (10-)
(Superseded to 32450B)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$

$

Not available

30

Tecumseh 650759

Screw (T-30, 1/4-20 x 23/32)

Note: Obtain individual replacement parts from your local Tecumseh Dealer.

$1.99

$

Usually ships in 3-12 days

0
