38035 (3521) - Toro Snow Thrower (SN: 006000001 - 006999999) (1986) AUGER ASSEMBLY Parts Diagram

Snow Thrower

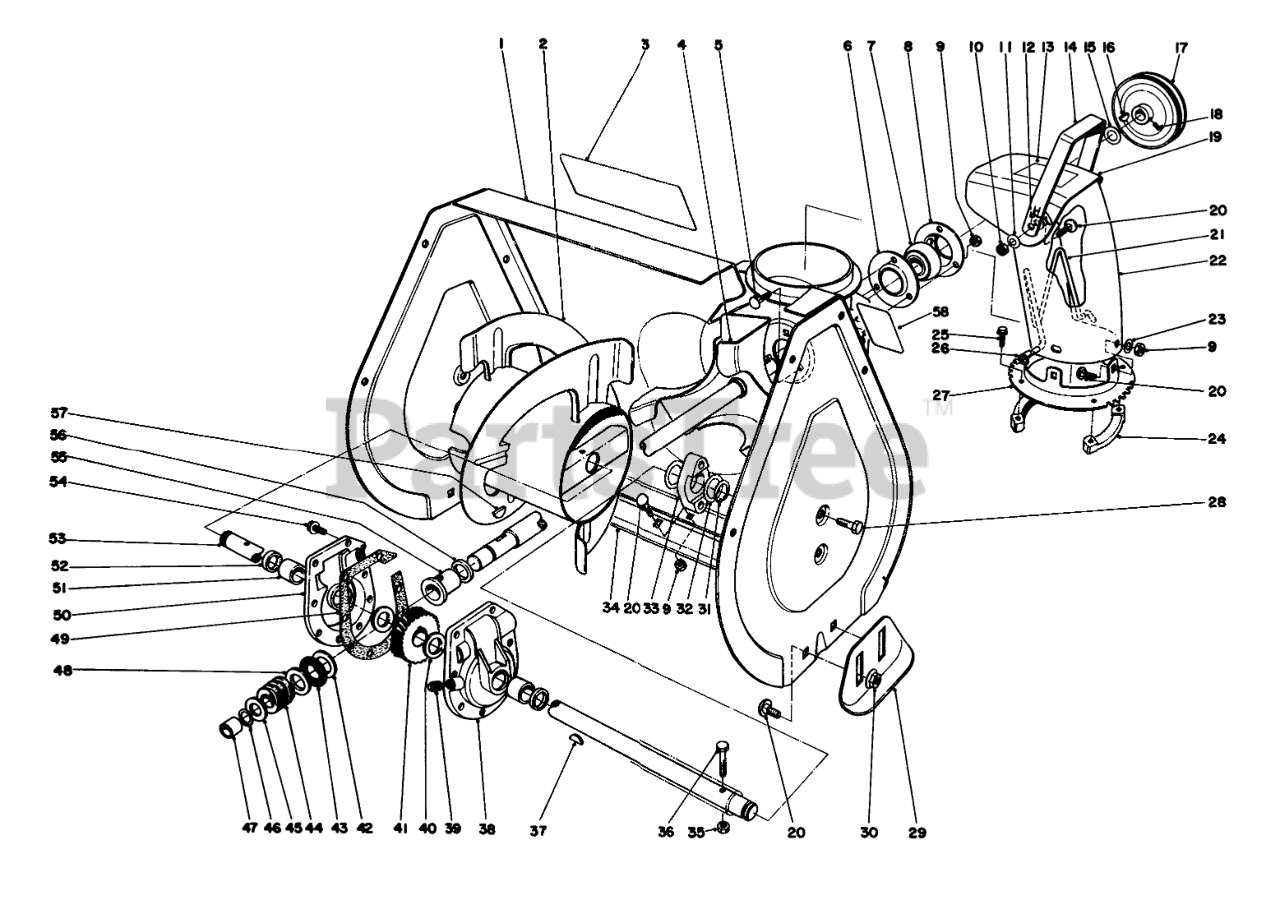

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 43-7320

Auger Housing
(Superseded to 94-2784)

$

$

Not available

2

Toro 39-1180

Auger R.H.
(Superseded to 39-1180-03)

$578.99

$

Usually ships in 3-6 days

0

Toro 39-1190

Auger L.H.
(Superseded to 39-1190-03)

Note: Not illustrated

$575.99

$

Usually ships in 3-6 days

0

3

Toro 54-9910

AUGER WARNING DECAL

$

$

Not available

4

Toro 37-6990

Shaft & Impeiler
(Superseded to 37-6990-03)

$

$

Not available

5

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

6

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 13

0

7

Toro 26-6100

Ball Bearing
(Superseded to 12-8789)

$30.99

$

In Stock, Qty 6

0

8

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

11

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 8

0

12

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

13

Toro 53-7660

Decal-Danger
(Superseded to 94-2558)

$42.99

$

In Stock, only 1 left!

0

14

Toro 37-8930

Handle Deflector

$

$

Not available

15

Toro 3-0737

WASHER

$9.99

$

In Stock, only 2 left!

0

16

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 19

0

17

Toro 37-6890

PULLEY

$227.99

$

Usually ships in 3-6 days

0

18

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 5

0

19

Toro 11-9359

Deflector (Incl. Ref. #13)

$

$

Not available

20

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

21

Toro 53-7590

CHUTE WIRE

$

$

Not available

22

Toro 53-7600

DISCHARGE CHUTE

$

$

Not available

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 37-6490

RING-CHUTE, RETAINER

$20.99

$

In Stock, Qty 5

0

25

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

26

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

27

Toro 37-8940

Chute Ring

$

$

Not available

28

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, only 3 left!

0

29

Toro 40-8160

Skid
(Superseded to 40-8160-01)

$25.99

$

In Stock, Qty 6

0

30

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

32

Toro 5-1550

WASHER

$7.49

$

Usually ships in 3-6 days

0

33

Toro 37-6550

BEARING-AUGER
(Superseded to 136-8685)

$78.99

$

In Stock, only 2 left!

0

34

Toro 39-1550

Blade-Scraper
(Superseded to 39-1551-01)

$67.99

$

In Stock, only 2 left!

0

35

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

36

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 3257-33

KEY-WOODRUFF

$2.49

$

Usually ships in 3-6 days

0

38

Toro 37-8860

Gear Case L.H. (Incl. Ref. #51 & 52)
(Superseded to 14-2459)

$155.99

$

In Stock, only 2 left!

0

39

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

40

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 3 left!

0

41

Toro 23-9050

Gear
(Superseded to 5-7180)

$161.99

$

Usually ships in 3-6 days

0

42

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, Qty 5

0

43

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 4 left!

0

44

Toro 5-7170

GEAR

$116.99

$

In Stock, only 3 left!

0

45

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

46

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

47

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

48

Toro 252-80

WASHER-THRUST

$10.99

$

In Stock, Qty 8

0

49

Toro 51-0460

GASKET-CASE, GEAR

$9.49

$

In Stock, only 2 left!

0

50

Toro 37-8850

Gear Case R.H. (Incl. Ref. #51 & 52)
(Superseded to 14-2449)

$155.99

$

In Stock, only 2 left!

0

51

Toro 256-237

BUSHING

$15.99

$

In Stock, only 1 left!

0

52

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, only 2 left!

0

53

Toro 37-6800

AUGER SHAFT

$275.99

$

Usually ships in 3-6 days

0

54

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

55

Toro 37-6560

BUSHING-INPUT

$43.99

$

In Stock, only 2 left!

0

56

Toro 237-87

RING-QUAD

$7.49

$

In Stock, Qty 7

0

57

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 13

0

58

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$11.99

$

In Stock, only 3 left!

0

Toro 37-6960

21 GEAR CASE ASM

Note: Not illustrated

$

$

Not available
