38035 (3521) - Toro Snow Thrower (SN: 004000001 - 004999999) (1984) ENGINE TECUMSEH MODEL H35-45582N Parts Diagram

Snow Thrower

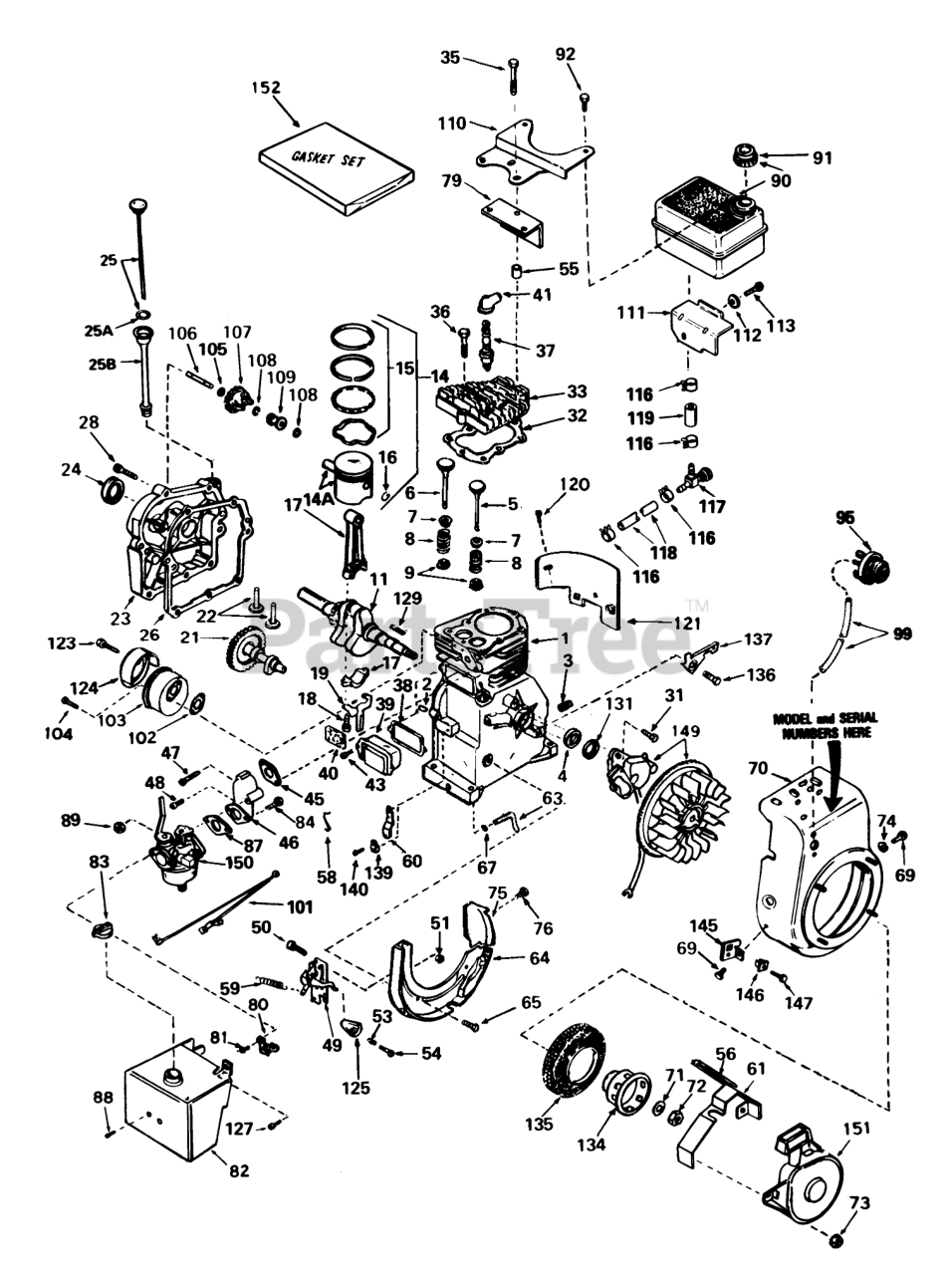

ENGINE TECUMSEH MODEL H35-45582N Parts Diagram

  • Title

1

Tecumseh 34708

Cylinder Assy. (Incl. #2, 3 & 4)
(Superseded to 36560A)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 29314B

Valve, Intake (Std.) (Incl. #9)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

5

Tecumseh 29315C

Valve, Intake (1/32" oversize) (Incl. #9)

$

$

Not available

6

Tecumseh 29313C

Valve, Exhaust (Std.) (Incl. #9)

$

$

Not available

6

Tecumseh 29315C

Valve, Exhaust (1/32" oversize) (Incl. #9)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 34709

481-1253 SENATOR RO
(Superseded to 37303)

$127.99

$

Usually ships in 3-12 days

0

14

Tecumseh 34514

Piston, Pin & Ring Assy. (Std.) (Incl. #14A, 15 & 16)

$

$

Not available

14

Tecumseh 34515

Piston, Pin & Ring Assy. (.010 oversize) (Incl. #14A, 15 & 16)

$

$

Not available

14

Tecumseh 34516

Piston, Pin & Ring Assy. (.020 oversize) (Incl. #14A, 15 & 16)

$79.99

$

Usually ships in 3-12 days

0

14A

Tecumseh 32538B

Piston & Pin Assy. (Std.) (Incl. #16)

$

$

Not available

14A

Tecumseh 32548B

Piston & Pin Assy. (.010 over size) (Incl. #16)

$

$

Not available

14A

Tecumseh 32549B

Piston & Pin Assy. (.020 over size) (Incl. #16)

$50.99

$

Usually ships in 3-12 days

0

15

Tecumseh 28986

Piston Ring Set Std.

$

$

Not available

15

Tecumseh 28987

Piston Ring Set .010 O.S.

$

$

Not available

15

Tecumseh 28988

Piston Ring Set .020 O.S.

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 30963B

Rod Assy., Connecting (Incl. #18 & 19)

$29.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

19

Tecumseh 28594

53020/22 GIL.HYDRO

$8.99

$

In Stock, only 2 left!

0

21

Tecumseh 33149

Camshaft (Compression Release
(Superseded to 33149A)

$

$

Not available

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 34683

Cover, Cylinder (Incl. #24 & 106)
(Superseded to 34683B)

$85.99

$

Usually ships in 3-12 days

0

24

Tecumseh 26208

Seal Oil

$8.49

$

In Stock, only 1 left!

0

25

Tecumseh 34676

Dipstick, Oil (Incl. #25A)
(Superseded to 34676A)

$15.99

$

Usually ships in 3-12 days

0

25A

Tecumseh 33590

O-Ring

$1.99

$

In Stock, only 1 left!

0

25B

Tecumseh 33893A

Tube Fill

$

$

Not available

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$7.49

$

In Stock, Qty 7

0

28

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 29953B

Gasket-Cylinder Head
(Superseded to 29953C)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$16.99

$

In Stock, only 1 left!

0

33

Tecumseh 30579

CYLINDER HEAD
(Superseded to 36438)

$

$

Not available

35

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 12

0

37

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 12

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$7.49

$

In Stock, only 2 left!

0

39

Tecumseh 31337

Breather Assy. (Incl. #38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

41

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

45

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$1.99

$

In Stock, Qty 8

0

46

Tecumseh 28416A

Pipe, Intake (Incl. #47)

$

$

Not available

47

Tecumseh 650840

Screw-Hex Hd.

$1.99

$

Usually ships in 3-12 days

0

48

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 9

0

49

Tecumseh 33858A

Control Assy., Speed (Incl. #50 thru 54)
(Superseded to 36677)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$47.99

$

In Stock, only 1 left!

0

50

Tecumseh 650139

Screw

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 4 left!

0

51

Tecumseh 30322

Nut-Lock

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

Usually ships in 3-12 days

0

53

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

54

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

55

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

56

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

58

Tecumseh 31858

Jet-Main
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

59

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

60

Tecumseh 31510

Lever-Governor
(Superseded to 37735)

$13.99

$

In Stock, only 1 left!

0

61

Tecumseh 34127

Guard-Starter

$

$

Not available

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

Note: In original production, the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

70

Tecumseh 34813

Housing-Blower
(Superseded to 33663E)

$

$

Not available

71

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

73

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

74

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

75

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

76

Toro 6750701

Screw, Hex Washer Hd. Shakeproof Self-drilling

$

$

Currently unavailable

79

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

80

Tecumseh 32398

Bracket-Choke

$19.99

$

In Stock, only 3 left!

0

81

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

82

Tecumseh 34411

Cover, Carburetor

$

$

Not available

83

Tecumseh 34585

Knob-Control
(Superseded to 35438)

$3.99

$

In Stock, only 2 left!

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

87

Tecumseh 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$2.99

$

In Stock, Qty 9

0

88

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

90

Tecumseh 34711

Tank, Fuel (Incl. #91)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

91

Tecumseh 34210

Cap, Fuel

$8.49

$

In Stock, Qty 12

0

92

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

95

Tecumseh 34814

Primer Assy.
(Superseded to 35769)

$14.99

$

Usually ships in 3-12 days

0

99

Tecumseh 32180B

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, only 4 left!

0

101

Tecumseh 34241

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

102

Tecumseh 30081

Gasket Exhaust
(Superseded to 30081A)

Note: Indicates parts included in Gasket Set, Ref. Num 152.

$1.49

$

In Stock, only 2 left!

0

103

Tecumseh 30996

Muffler

$

$

Not available

104

Tecumseh 650493

Screw

$3.99

$

In Stock, Qty 7

0

105

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

107

Tecumseh 30591

Gear Assy., Governor (Incl. #105)

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 28371B

Plate-Fuel Tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

111

Tecumseh 34182

Bracket-Fuel Tank

$13.99

$

Usually ships in 3-12 days

0

112

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

113

Tecumseh 650805

Screw Assembly
(Superseded to 650561)

$1.99

$

In Stock, only 2 left!

0

116

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

117

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

119

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

123

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

124

Tecumseh 30997

Cover-Muffler

$1.99

$

In Stock, Qty 5

0

125

Tecumseh 32410

Knob-Control

$5.49

$

In Stock, only 4 left!

0

127

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 4 left!

0

129

Tecumseh 610961

Key-Flywheel

$1.49

$

In Stock, Qty 20+

0

131

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

134

Tecumseh 34694

Cup-Starter

$11.99

$

Usually ships in 3-12 days

0

135

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

136

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

137

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, Qty 5

0

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

145

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

146

Tecumseh 28545

Grommet

$1.99

$

In Stock, Qty 5

0

147

Tecumseh 650643

Screw
(Superseded to 650760)

$1.99

$

In Stock, only 3 left!

0

149

Tecumseh 611030

Magneto (The complete magneto in not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list)

$

$

Currently unavailable

150

Tecumseh 632114

Carburetor (Incl. #87)

$119.99

$

Usually ships in 3-12 days

0

151

Tecumseh 590473

Starter Assy., Rewind
(Superseded to 590602)

$

$

Not available

152

Tecumseh 33233

Gasket Set
(Superseded to 33233A)

$16.99

$

In Stock, only 1 left!

0
