38030 - Toro SnowMaster 20 Snow Thrower (SN: 008000001 - 008999999) (1978) STARTER MOTOR & SWITCH ASSEMBLY (MODEL 38030) Parts Diagram

SnowMaster 20 Snow Thrower

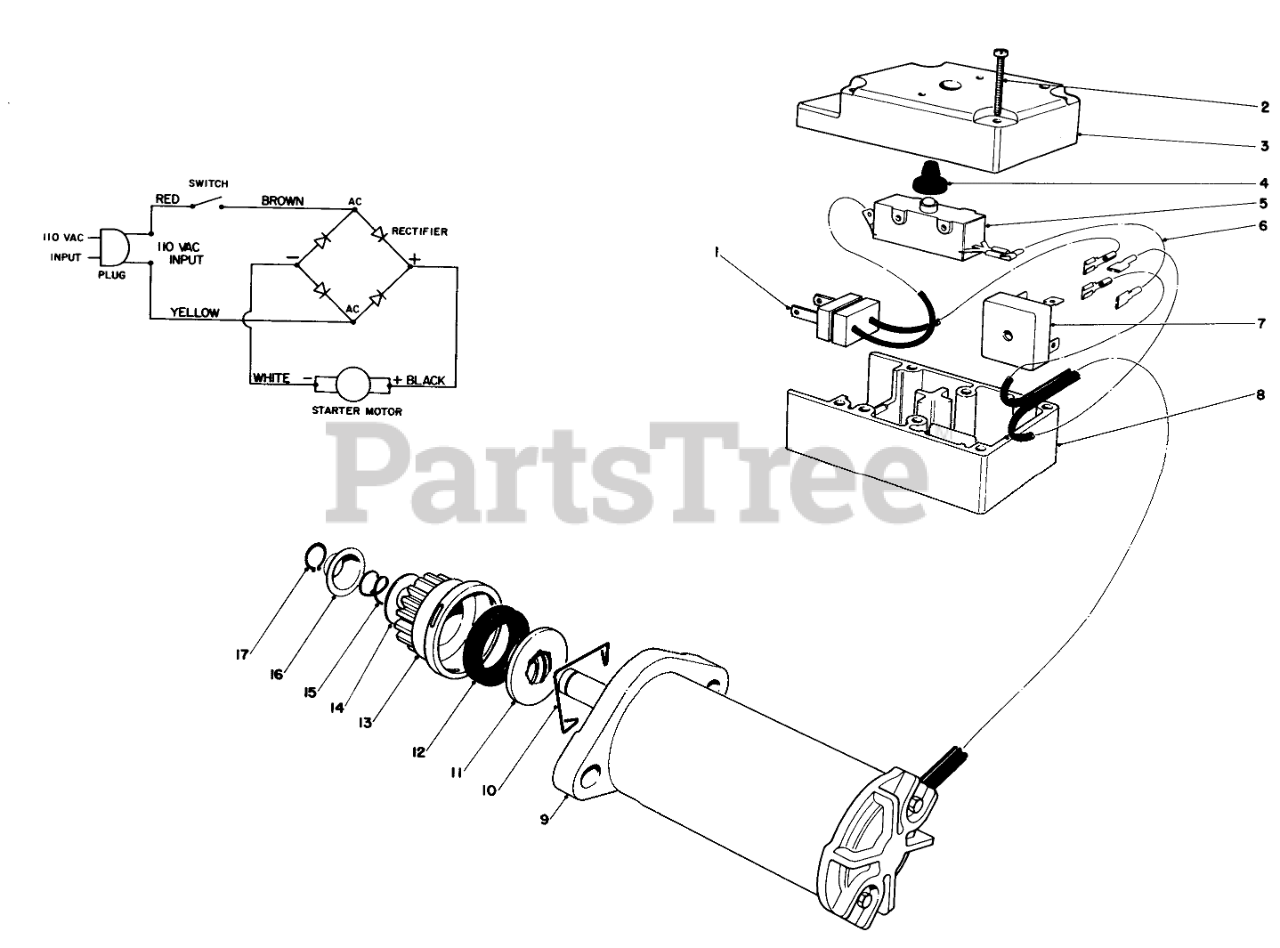

STARTER MOTOR & SWITCH ASSEMBLY (MODEL 38030) Parts Diagram

  • Title

1

Toro 28-9080

PLUG

$

$

Not available

2

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

3

Toro 28-9960

Cap-Switch Housing

$

$

Not available

4

Toro 28-9090

Boot-Switch

$

$

Not available

5

Toro 28-9070

Switch

$

$

Not available

6

Toro 28-9980

Wire-Switch to Rectifier

$

$

Not available

7

Toro 29-6050

Bridge Rectifier
(Superseded to 37-7600)

$27.99

$

In Stock, only 1 left!

0

8

Toro 28-9970

Base-Switch Housing

$

$

Not available

9

Toro 33-4390

Pivot Washer
(Superseded to 92-6021)

$

$

Not available

10

Toro 5-6530

RETAINING CLIP

$8.49

$

In Stock, only 1 left!

0

11

Toro 33-3220

Helix Pinion
(Superseded to 36-5350)

$

$

Not available

12

Toro 25-3400

RUBBER RING

$

$

Not available

13

Toro 28-9110

PINION GEAR

$

$

Not available

14

Toro 33-5570

WASHER

$

$

Not available

15

Toro 33-3230

COMP SPRING

$6.99

$

In Stock, Qty 8

0

16

Toro 33-3210

PINION STOP

$20.99

$

In Stock, Qty 7

0

17

Toro 32151-49

RET RING

$4.99

$

In Stock, Qty 9

0

Toro 28-9140

Starter Motor Assembly (Incl. Ref. #9-17)

Note: Not illustrated

$

$

Not available

Toro 8-0379

Pinion Assembly (Incl. Ref. #10-13)
(Superseded to 36-5350)

Note: Not illustrated

$

$

Not available

Toro 28-9170

CORD
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
