38030 - Toro SnowMaster 20 Snow Thrower (SN: 008000001 - 008999999) (1978) ENGINE ASSEMBLY ENGINE TECUMSEH MODEL NO. AH520 TYPE 1583 UNIT MODEL 38030 Parts Diagram

SnowMaster 20 Snow Thrower

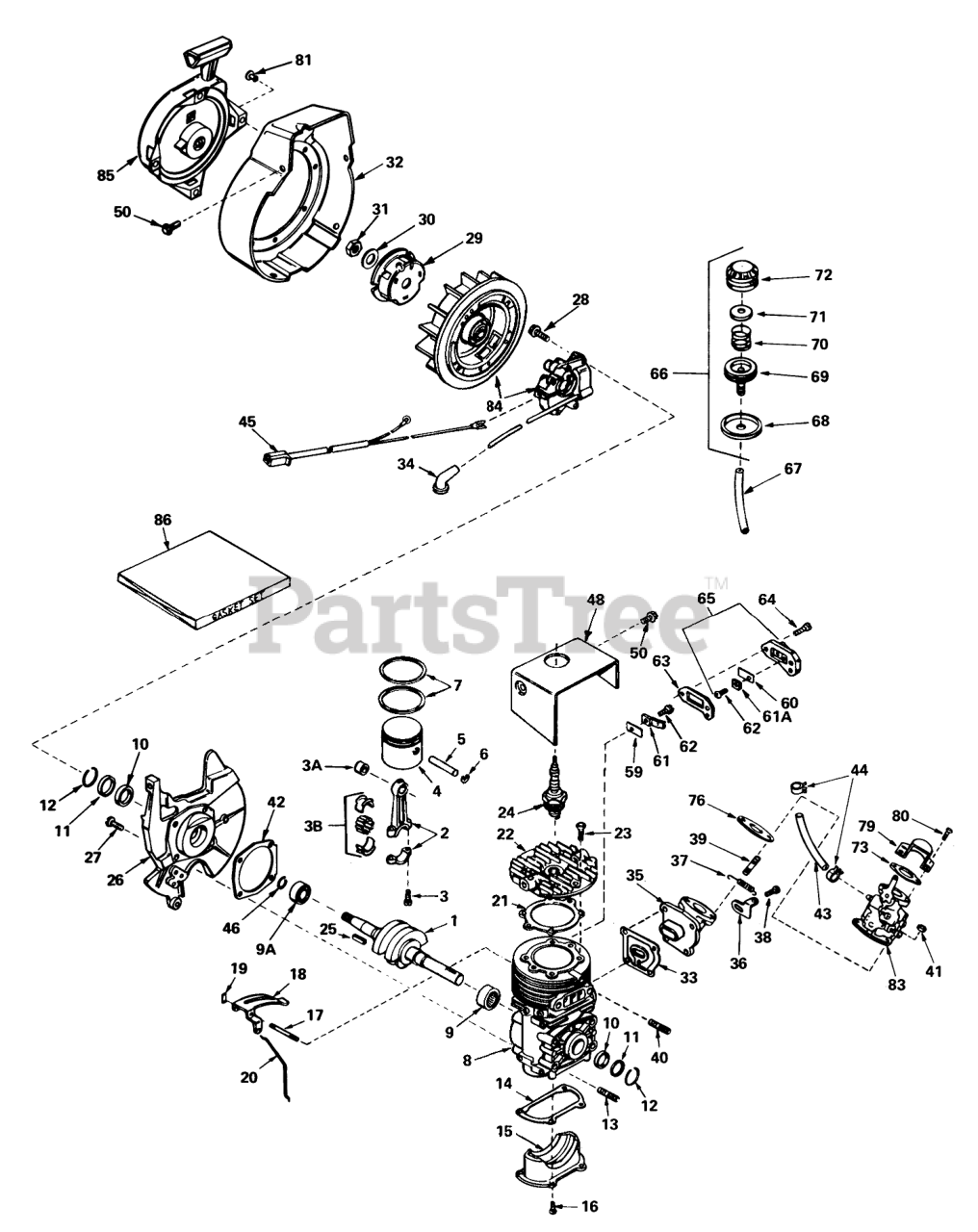

ENGINE ASSEMBLY ENGINE TECUMSEH MODEL NO. AH520 TYPE 1583 UNIT MODEL 38030 Parts Diagram

  • Title

1

Tecumseh 290489

Crankshaft

$

$

Currently unavailable

2

Tecumseh 310244

Rod Assembly, Connecting (Incl. Nos. 3, 3A & 3B)

$

$

Currently unavailable

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

3B

Tecumseh 530149

Bearing & Liner Set Needle

$27.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310230

Piston
(Superseded to 310283A)

$33.99

$

Usually ships in 3-12 days

0

5

Tecumseh 310178

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 250271

Block Assembly, Cylinder(Incl. Nos. 9, 10thru 13, 17 & 40)
(Superseded to 250271B)

$

$

Currently unavailable

9

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

9A

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510105

Seal, Crankshaft

$2.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510106

Retainer, Crankshaft Seal
(Superseded to 510106A)

$3.99

$

In Stock, only 1 left!

0

12

Tecumseh 510109A

Spring, Crankshaft Seal Retainer

$3.99

$

Usually ships in 3-12 days

0

13

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 510270

Gasket, Cover
(Superseded to 510270A)

Note: Indicates items included in Gasket Set part no. 510264D.

$5.49

$

Usually ships in 3-12 days

0

15

Tecumseh 570370

Plate, Cover
(Superseded to 570370A)

$

$

Not available

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Tecumseh 490287

Vane Assy., Air

$

$

Currently unavailable

19

Tecumseh 490278

Clip,Air Vane

$

$

Currently unavailable

20

Tecumseh 490288

Link, Governor

$

$

Currently unavailable

21

Tecumseh 510274

Gasket, Head
(Superseded to 510274A)

Note: Indicates items included in Gasket Set part no. 510264D.

$1.99

$

In Stock, Qty 5

0

22

Tecumseh 250240

Support
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 610830A

Plug, Spark (RJ-13Y or equivalent)

$5.49

$

In Stock, only 2 left!

0

25

Tecumseh 650496

Key, Flywheel

$1.49

$

In Stock, Qty 20+

0

26

Tecumseh 350390

Base Assembly, Shroud (Incl. Nos. 10, 11 & 12)(Type 1583)
(Superseded to 350390A)

$

$

Currently unavailable

26

Tecumseh 350388

Base Assembly, Shroud (Incl. Nos. 10, 11 & 12)(Type 1585)
(Superseded to 350405A)

$50.99

$

Usually ships in 3-12 days

0

27

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

29

Tecumseh 590416

Starter Cup

$9.99

$

Usually ships in 3-12 days

0

30

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

31

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 350392

Housing, Blower (Type 1583)

$

$

Currently unavailable

32

Tecumseh 350391

Housing, Blower
(Superseded to 350392)

$

$

Currently unavailable

33

Tecumseh 510312

Gasket, Port
(Superseded to 510312A)

Note: Indicates items included in Gasket Set part no. 510264D.

$1.99

$

In Stock, Qty 5

0

34

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

35

Tecumseh 570627

Elbow Assy., Adapter

$

$

Currently unavailable

36

Tecumseh 570626

Lever, Adjusting

$

$

Not available

37

Tecumseh 490286

Spring, Adjusting Lever

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 650700

Stud Carburetor

$

$

Not available

40

Tecumseh 650801

Stud

$1.99

$

In Stock, only 3 left!

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, only 3 left!

0

42

Tecumseh 510292

Gasket, Shroud Base
(Superseded to 510292A)

Note: Indicates items included in Gasket Set part no. 510264D.

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 9

0

44

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

45

Tecumseh 610999

Harness, Wire

$

$

Currently unavailable

46

Tecumseh 570630

Ring, Retaining

$

$

Currently unavailable

48

Tecumseh 350389

Shroud, Cylinder

$

$

Currently unavailable

50

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

59

Tecumseh 470136

Reed, Compression Release

$3.99

$

In Stock, only 2 left!

0

60

Tecumseh 470135

Reed, Compression Release

$5.49

$

In Stock, only 1 left!

0

61

Tecumseh 470151

Plate, Reed Hold Down

$

$

Currently unavailable

61A

Tecumseh 470137

Plate, Reed Hold Down

$2.49

$

In Stock, only 1 left!

0

62

Tecumseh 650654

Screw

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 510263

Gasket, Compression Release
(Superseded to 510263A)

Note: Indicates items included in Gasket Set part no. 510264D.

$1.99

$

In Stock, only 4 left!

0

64

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

65

Tecumseh 570437A

Cover Assembly, Compression Release (Incl. Nos. 60, 61A & 62)

$

$

Currently unavailable

66

Tecumseh 570629

Primer Assembly (Incl.Nos. 68 thru 72)
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

67

Tecumseh 32180A

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, only 4 left!

0

68

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

69

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

70

Tecumseh 570443

Spring, Primer Bulb

$

$

Currently unavailable

71

Tecumseh 570444

Washer, Primer Bulb

$

$

Currently unavailable

72

Tecumseh 570442

Bulb, Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

73

Tecumseh 510206

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

76

Tecumseh 510213

Gasket, Carburetor
(Superseded to 510213A)

Note: Indicates items included in Gasket Set part no. 510264D.

$1.99

$

In Stock, only 4 left!

0

79

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

80

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

81

Rivet, Pop (3/16" dia.)(Can be purchased locally)

$

$

Not available

83

Tecumseh 631887

Carburetor (Incl. No. 76)
(Superseded to 631993)

$125.99

$

Usually ships in 3-12 days

0

84

Tecumseh 610772A

Magneto

$

$

Currently unavailable

84

Tecumseh 610794A

Magneto

$

$

Currently unavailable

85

Tecumseh 590537

Starter-Rewind
(Superseded to 590706)

$68.99

$

In Stock, only 1 left!

0

86

Tecumseh 510264D

Gasket Set
(Superseded to 510264E)

$26.99

$

In Stock, only 1 left!

0
