38025 (1800) - Toro Power Curve Snow Thrower (SN: 049000001 - 049999999) (1994) HOUSING & ROTOR ASSEMBLY Parts Diagram

Power Curve Snow Thrower

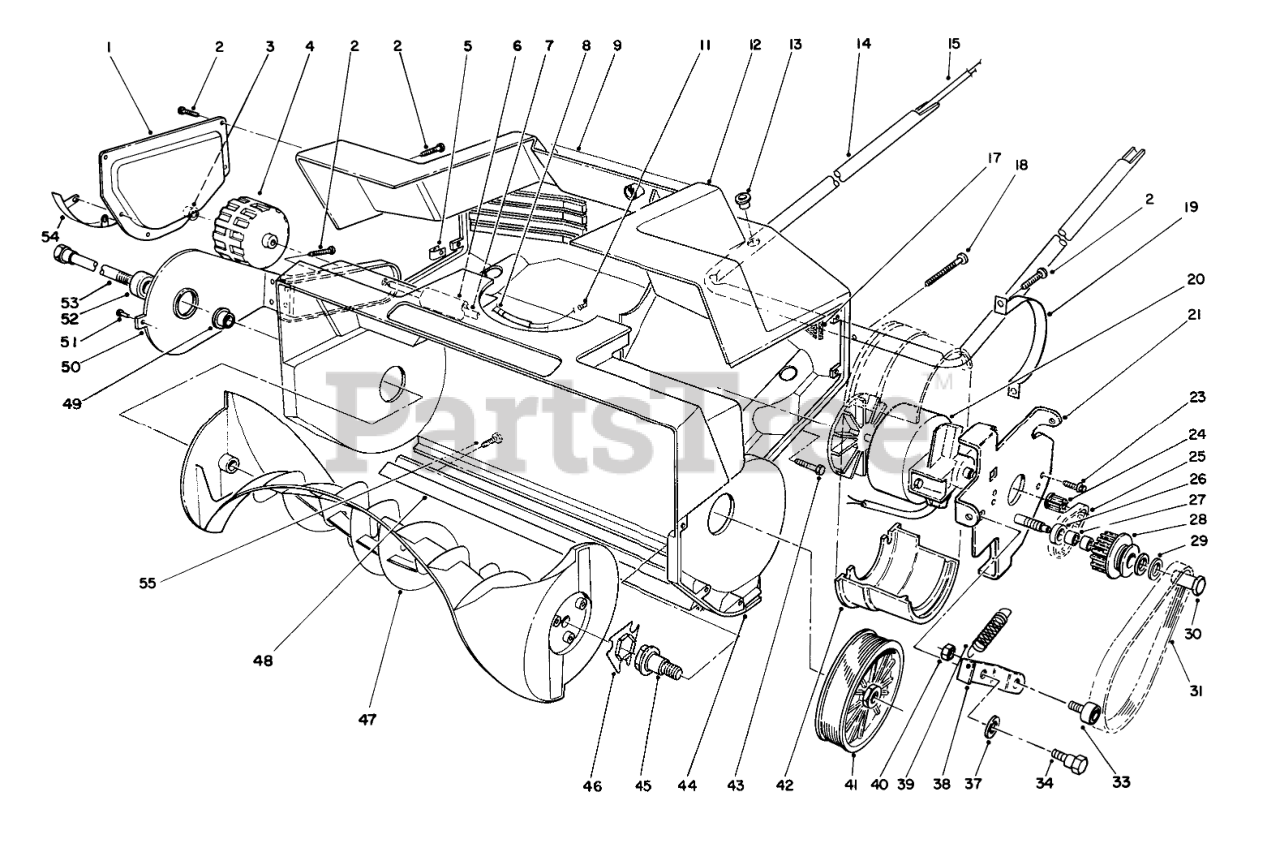

HOUSING & ROTOR ASSEMBLY Parts Diagram

  • Title

1

Toro 73-0220

PLATE - SIDE, PAINTED

$

$

Not available

2

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

3

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 73-5720

Wheel

$

$

Not available

5

Toro 249-42

U-CLIP

$

$

Not available

6

Toro 73-0250

SLEEVE, AXLE

$

$

Not available

7

Toro 73-0370

Shaft-Axle

$12.99

$

Usually ships in 3-6 days

0

8

Toro 64-5820

Relief-Strain

$

$

Not available

9

Toro 73-0450

Decal-Danger
(Superseded to 104-9382)

$

$

Not available

11

Toro 218-511

Connector

$

$

Not available

12

Toro 73-0302

SHROUD W/O AMP LABEL

$214.99

$

Usually ships in 3-6 days

0

13

Toro 256-307

BUSHING

$

$

Not available

14

Toro 73-0280

Tube-Lower Handle
(Superseded to 104-9365-03)

$85.99

$

Usually ships in 3-6 days

0

15

Toro 73-3630

Wire Harness
(Superseded to 110-3111)

$

$

Not available

17

Toro 73-1800

Filter-Foam

$

$

Not available

18

Toro 32144-88

Screw-Pan Head

$1.99

$

In Stock, only 2 left!

0

19

Toro 73-0120

Strap-Motor

$

$

Not available

20

Toro 73-3520

Motor

$

$

Not available

21

Toro 73-8680

Motor Plate ASM

$98.99

$

Usually ships in 3-6 days

0

23

Toro 32144-100

Screw-Hex Washer Hd.

$1.49

$

In Stock, only 1 left!

0

24

Toro 73-3660

Pulley-Driver

$18.99

$

Usually ships in 3-6 days

0

25

Toro 73-0160

BELT-PULLEY, IDLER/DRIVER

$33.99

$

In Stock, Qty 5

0

26

Toro 73-3580

WASHER

$4.49

$

In Stock, Qty 5

0

27

Toro 252-102

Bearing

$

$

Not available

28

Toro 73-3810

PulleyAssembly-Idler (Incl. Ref. #27)

$

$

Not available

29

Toro 73-0041

WASHER-THRUST

$1.99

$

Usually ships in 3-6 days

0

30

Toro 73-3530

Bolt-Idler

$18.99

$

Usually ships in 3-6 days

0

31

Toro 61-8801

Belt-Drive
(Superseded to 61-8802)

$38.99

$

In Stock, only 4 left!

0

33

Toro 73-5730

Bearing Assembly (Incl. Ref. #40)

$40.99

$

In Stock, only 1 left!

0

34

Toro 27-0411

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

37

Toro 25-5641

WASHER

$4.49

$

Usually ships in 3-6 days

0

38

Toro 73-3600

Bracket-Idler

$

$

Not available

39

Toro 73-3680

Spring

$5.99

$

Usually ships in 3-6 days

0

40

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

41

Toro 73-3550

Pulley-Driven

$40.99

$

In Stock, only 2 left!

0

42

Toro 73-3650

Clamp-Motor Bracket

$

$

Not available

43

Toro 32104-97

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

44

Toro 73-3640

Housing-Rotor

$297.99

$

Usually ships in 3-6 days

0

45

Toro 73-0990

Shaft-Driver, Rotor

$47.99

$

Usually ships in 3-6 days

0

46

Toro 73-0860

Coupler-Rotor

$18.99

$

Usually ships in 3-6 days

0

47

Toro 73-8590

Rotor

$40.99

$

In Stock, Qty 8

0

48

Toro 73-3690

Scraper

$36.99

$

In Stock, Qty 7

0

49

Toro 73-8580

BUSHING

$3.99

$

Usually ships in 3-6 days

0

50

Toro 73-1900

Bracket-Wheel (Incl. Ref. #52)

$

$

Not available

51

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

52

Toro 61-8780

Bearing-Ball
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

53

Toro 73-0020

Shaft-Rotor
(Superseded to 107-3341)

$73.99

$

Usually ships in 3-6 days

0

54

Toro 73-1570

Skid-Housing

$34.99

$

In Stock, Qty 7

0

55

Toro 32144-108

Screw-Pan Head
(Superseded to 106-6461)

$1.99

$

Usually ships in 3-6 days

0
