38025 (1800) - Toro Power Curve Snow Thrower (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY Parts Diagram

Power Curve Snow Thrower

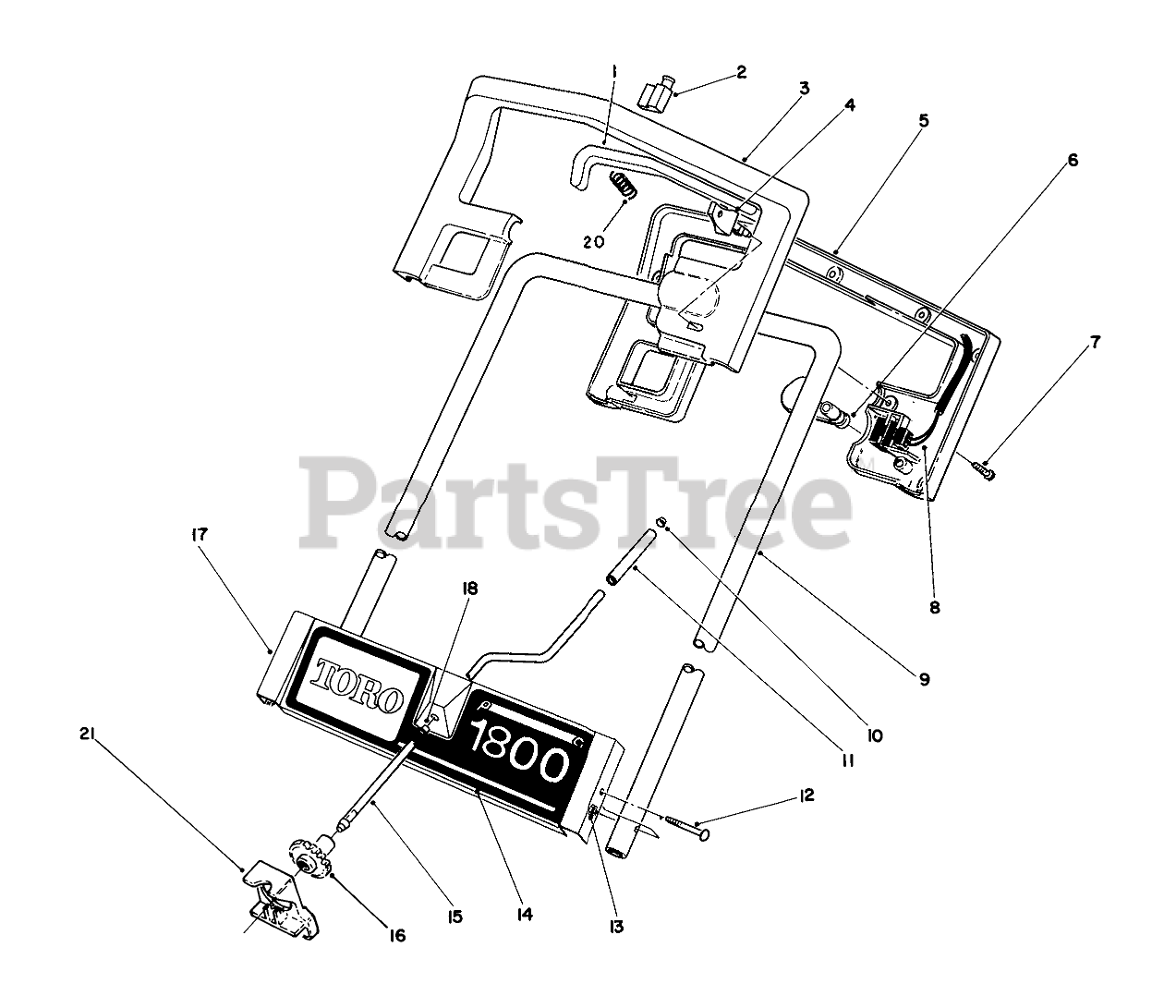

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 73-3510

Bar-Switch

$20.99

$

In Stock, only 1 left!

0

2

Toro 64-4930

SWITCH
(Superseded to 107-3323)

$19.99

$

In Stock, Qty 8

0

3

Toro 73-5700

Handle-Control, Upper

$37.99

$

Usually ships in 3-6 days

0

4

Toro 73-5190

Key

$8.49

$

In Stock, Qty 6

0

5

Toro 73-5710

Handle-Control, Lower

$

$

Not available

6

Toro 73-5690

Tab-Lock

$11.99

$

Usually ships in 3-6 days

0

7

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Toro 73-5640

Cord-Supply
(Superseded to 73-5642)

$14.99

$

In Stock, only 1 left!

0

9

Toro 73-3460

Tube-Handle, Upper
(Superseded to 104-9364-03)

$

$

Not available

10

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

11

Toro 73-0251

Sleeve-Crank, Chute

$

$

Not available

12

Toro 33-8951

Screw-HH

$1.49

$

In Stock, Qty 10

0

13

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

14

Toro 73-0490

DECAL - ESCUTCHEON

$

$

Not available

15

Toro 73-0240

Rod-Crank, Chute

$

$

Not available

16

Toro 73-0230

Gear-Crank, Chute

$10.99

$

Usually ships in 3-6 days

0

17

Toro 73-0310

Plate-Escutcheon
(Superseded to 73-0310-03)

$

$

Not available

18

Toro 256-306

Bushing-Nyliner

$1.49

$

In Stock, Qty 9

0

20

Toro 73-3450

Spring

$1.99

$

In Stock, Qty 6

0

21

Toro 73-3710

Brake-Gear

$6.99

$

Usually ships in 3-6 days

0
