38025 (1800) - Lawn-Boy 18" Power Curve Snow Thrower (SN: 311000001 - 311999999) (2011) CHUTE ASSEMBLY Parts Diagram

18" Power Curve Snow Thrower

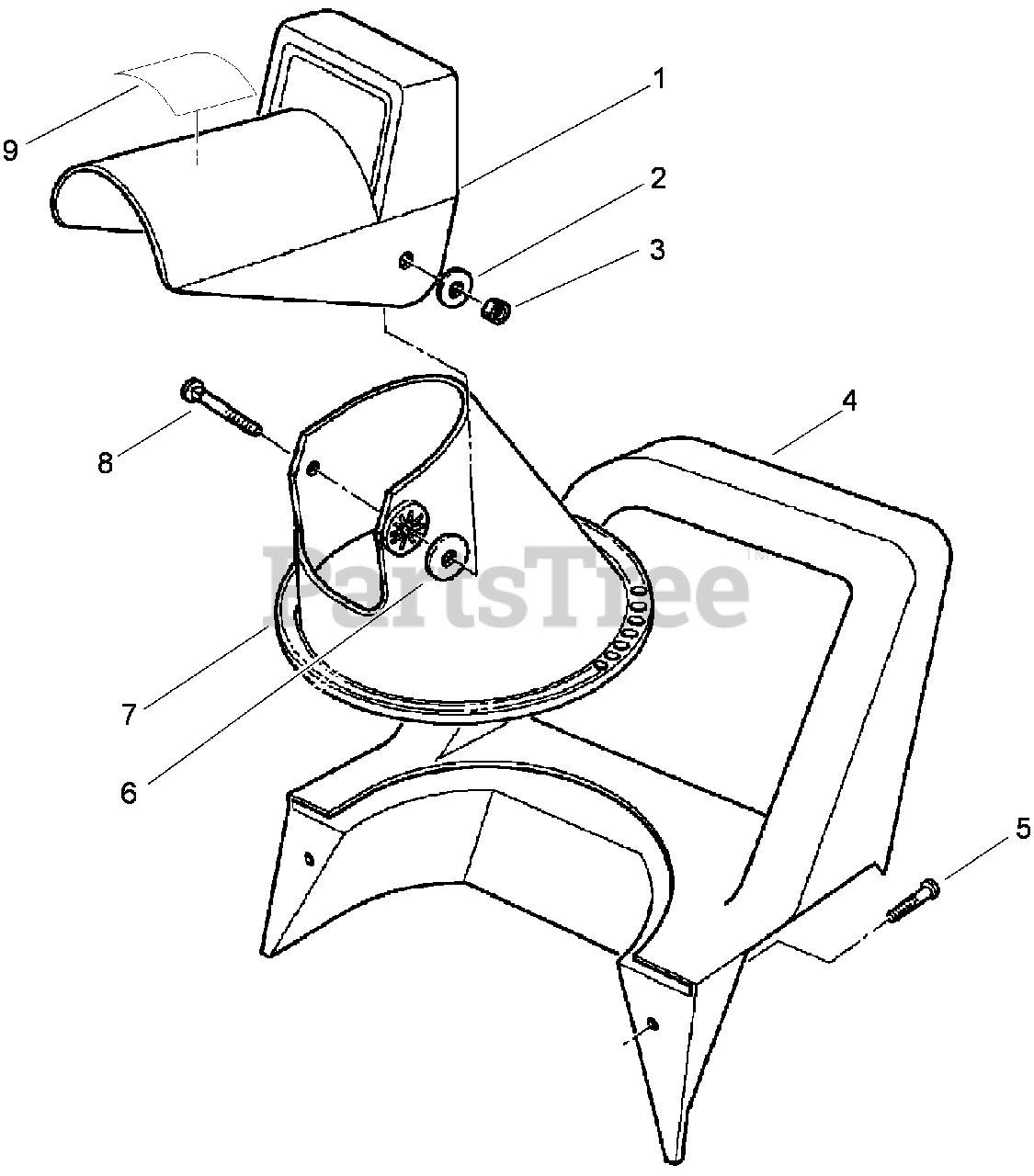

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 73-0190

Chute-Deflector

$32.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 73-0260

Handle-Middle

$

$

Not available

5

Lawn-Boy 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

7

Lawn-Boy 73-0180

Chute-Lower

$46.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

9

Lawn-Boy 114-9286

Decal-Danger

$

$

Not available

Lawn-Boy 73-0520

Loose Parts (Incl. Ref. #2, 3, 6, & 8, page 4)(Incl. Ref. #12, & 13 page 3)

Note: Not illustrated

$

$

Not available
