38025 (1800) - Lawn-Boy 18" Power Curve Snow Thrower (SN: 001000001 - 001111100) (1991) HOUSING & ROTOR ASSEMBLY Parts Diagram

18" Power Curve Snow Thrower

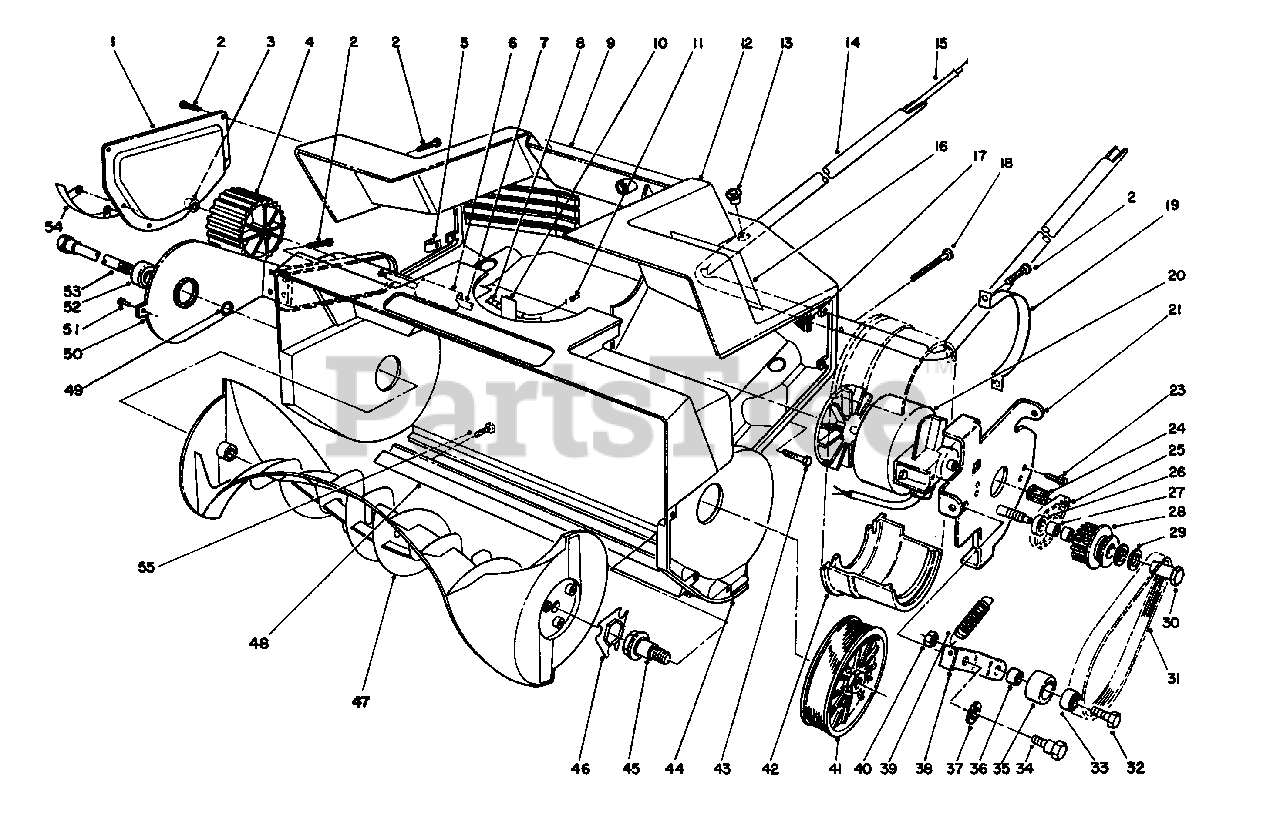

HOUSING & ROTOR ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 73-0220

Plate-Side

$

$

Not available

2

Lawn-Boy 32104-121

Screw-Pan Hd.
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 32112-1

Push Nut

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 73-0440

Wheel

$

$

Not available

5

Lawn-Boy 249-42

U-Clip-Tinnerman

$

$

Not available

6

Lawn-Boy 73-0250

Sleeve-Axle

$

$

Not available

7

Lawn-Boy 73-0370

Shaft-Axle

$12.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 64-5820

Relief-Strain

$

$

Not available

9

Lawn-Boy 73-0451

Decal-Danger Used on Machines Serial Nos. (1000101 Thru 1111100)

$

$

Currently unavailable

10

Lawn-Boy 249-44

Clip-Cord Used on Machines Serial Nos. (1000101 Thru 1111100)

$

$

Not available

11

Lawn-Boy 218-511

Connector

$

$

Not available

12

Lawn-Boy 73-0300

Shroud-Housing Used on Machines Serial Nos. (1000101 Thru 1111100)
(Superseded to 73-0301)

$

$

Not available

Lawn-Boy 73-0301

Shroud-Housing Used on Machines Serial Nos. (1200101 & UP)

Note: Not Illustrated

$

$

Not available

13

Lawn-Boy 256-307

Bushing

$

$

Not available

14

Lawn-Boy 73-0280

Tube-Lower Handle
(Superseded to 104-9365-03)

$85.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 73-3630

Wire Harness Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP)
(Superseded to 110-3111)

$

$

Not available

Lawn-Boy 73-0270

Wire Harness Used on Machines Serial Nos. (1000101 Thru 1011100)

Note: Not Illustrated

$

$

Not available

16

Lawn-Boy 73-0460

Decal-Warning Used on Machines Serial Nos. (1000101 Thru 1111100)

$

$

Not available

17

Lawn-Boy 73-1800

Filter-Foam

$

$

Not available

18

Lawn-Boy 32144-88

Screw-Pan Hd.

$1.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 73-0120

Strap-Motor

$

$

Not available

20

Lawn-Boy 73-0080

Motor Used on Machines Serial Nos. (1000101 Thru 1111100)

$

$

Not available

Lawn-Boy 73-3520

Motor Used on Machines Serial Nos. (1200101 & UP)

Note: Not Illustrated

$

$

Not available

21

Lawn-Boy 73-3700

Motor Plate Assembly
(Superseded to 73-8680)

$98.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 32144-100

Screw-Hex. Washer Hd.

$1.49

$

In Stock, only 1 left!

0

24

Lawn-Boy 73-3661

Pulley-Driver Used on Machines Serial Nos. (1000101 Thru 1111100)

$

$

Not available

Lawn-Boy 73-3660

Pulley-Driver Used on Machines Serial Nos. (1200101 & UP)

Note: Not Illustrated

$18.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 73-0160

Belt-Timing

$33.99

$

In Stock, Qty 5

0

26

Lawn-Boy 73-3580

Washer

$4.49

$

In Stock, Qty 5

0

27

Lawn-Boy 252-102

Bearing-Needle

$

$

Not available

28

Lawn-Boy 73-3570

Pulley-Idler (Incl. Ref. #27)
(Superseded to 73-3810)

$

$

Not available

29

Lawn-Boy 73-0041

Washer-Thrust

$1.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 73-3530

Bolt-Idler

$18.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 61-8801

Belt-Drive
(Superseded to 61-8802)

$38.99

$

In Stock, only 4 left!

0

32

Lawn-Boy 322-45

Screw-Hex. Hd. Cap
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 251-307

Bearing-Ball
(Superseded to 251-259)

$16.99

$

In Stock, only 4 left!

0

34

Lawn-Boy 27-0411

Screw-Shoulder

$2.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 73-3560

Pulley

$

$

Currently unavailable

36

Lawn-Boy 73-3540

Spacer

$6.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 25-5641

Washer

$4.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 73-3600

Bracket-Idler

$

$

Not available

39

Lawn-Boy 73-3680

Spring

$5.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

41

Lawn-Boy 73-3550

Pulley-Driven

$40.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 73-3650

Clamp-Motor Bracket

$

$

Not available

43

Lawn-Boy 32104-97

Screw-Hex. Hd. Cap

$6.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 73-0200

Housing-Rotor Used on Machines Serial Nos. (1000101 Thru 1011100)

$

$

Not available

Lawn-Boy 73-3640

Housing-Rotor Used on Machines Serial Nos. (1100101 Thru 1111100&1200101 & UP)

Note: Not Illustrated

$297.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 73-0990

Shaft-Rotor Driver

$47.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 73-0860

Coupler-Rotor

$18.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 73-0400

Rotor
(Superseded to 73-8590)

$40.99

$

In Stock, Qty 8

0

48

Lawn-Boy 73-3690

Scraper Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP)

$36.99

$

In Stock, Qty 7

0

Lawn-Boy 73-1610

Scraper Used on Machines Serial Nos. (1100101 Thru 1011100)
(Superseded to 99-5390)

Note: Not Illustrated

$

$

Not available

49

Lawn-Boy 73-0040

Washer

$1.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 73-1900

Bracket-Wheel (Incl. Ref. #52)

$

$

Not available

51

Lawn-Boy 3290-271

Rivet-Pop

$0.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 61-8780

Bearing-Ball
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

53

Lawn-Boy 73-0020

Shaft-Rotor
(Superseded to 107-3341)

$73.99

$

Usually ships in 3-6 days

0

54

Lawn-Boy 73-1570

Skid-Housing

$34.99

$

In Stock, Qty 7

0

55

Lawn-Boy 32144-108

Screw-Pan Hd. Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP)
(Superseded to 106-6461)

$1.99

$

Usually ships in 3-6 days

0
