38025 (1800) - Lawn-Boy 18" Power Curve Snow Thrower (SN: 001000001 - 001111100) (1991) HANDLE ASSEMBLY Parts Diagram

18" Power Curve Snow Thrower

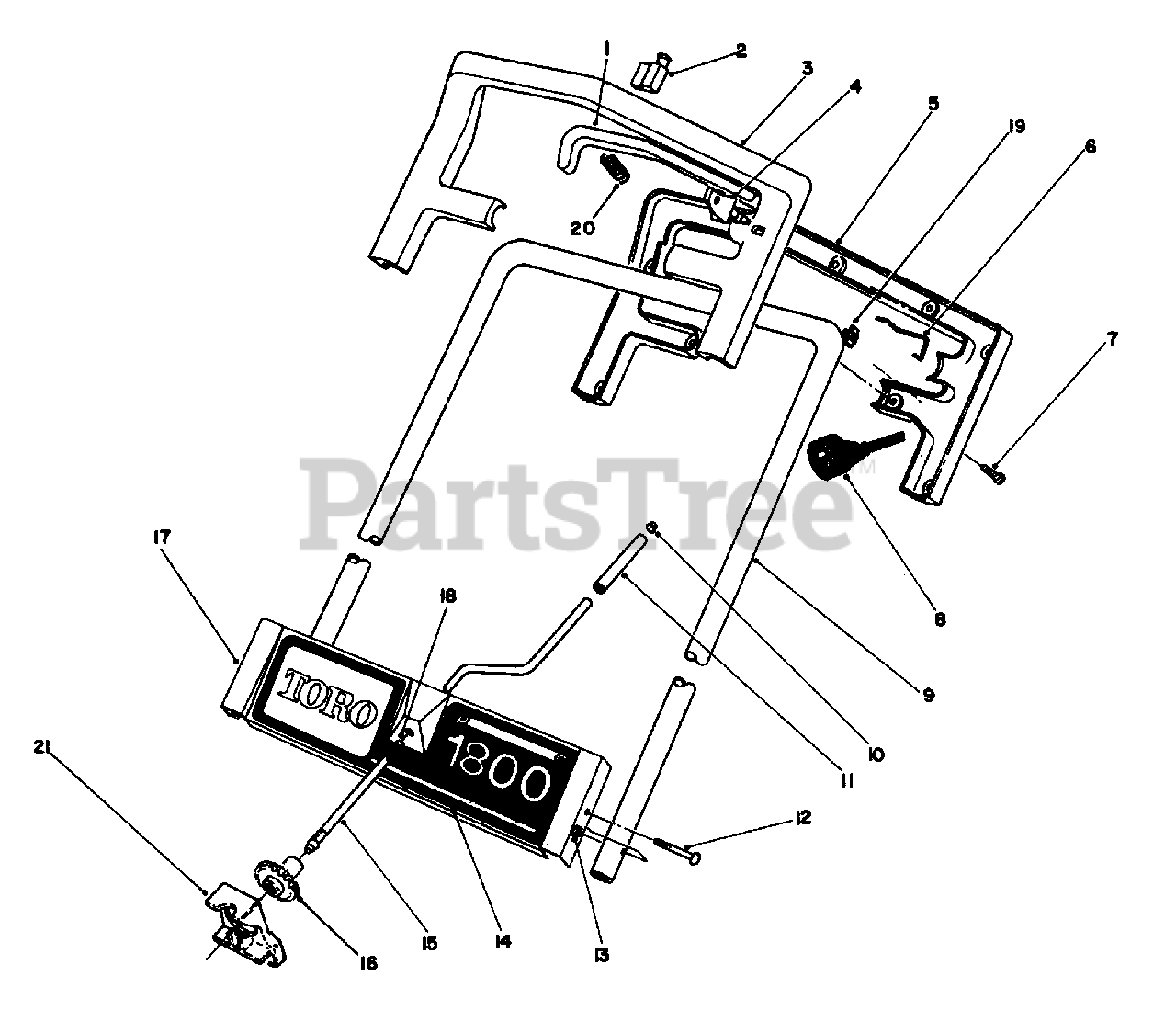

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 73-3510

Bar-Switch Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP)

$20.99

$

In Stock, only 1 left!

0

Lawn-Boy 73-0340

Bar-Switch Used on Machines Serial Nos. (1000101 Thru 1011100)
(Superseded to 100-1212)

Note: Not Illustrated

$

$

Not available

2

Lawn-Boy 64-4930

Switch
(Superseded to 107-3323)

$19.99

$

In Stock, Qty 8

0

3

Lawn-Boy 73-3610

Handle-Upper Control Used on Machines Serial Nos. (1100101 Thru 1111100 1200101 & UP)

$

$

Not available

Lawn-Boy 73-0320

Handle-Upper Control Used on Machines Serial Nos. (1000101 Thru 1011100)

Note: Not Illustrated

$

$

Not available

$

$

Not available

5

Lawn-Boy 73-3620

Handle-Lower Control Used on Machines Serial Nos. (1100101 THRU 1111100 & 1200101 & UP)

$

$

Not available

Lawn-Boy 73-0330

Handle-Lower Control Used on Machines Serial Nos. (1000101 Thru 1011100)

Note: Not Illustrated

$

$

Not available

6

Lawn-Boy 73-0350

Spring-Lock Used on Machines Serial Nos. (1000101 Thru 1011100)

$

$

Not available

Lawn-Boy 73-3480

Spring-Lock Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP)

Note: Not Illustrated

$

$

Not available

7

Lawn-Boy 32104-121

Screw-Pan Hd. Form.
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 73-3470

Cord-Supply Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP )

$

$

Not available

Lawn-Boy 73-0420

Cord-Supply Used on Machines Serial Nos. (1000101 Thru 1011100)

Note: Not Illustrated

$

$

Not available

9

Lawn-Boy 73-3460

Tube-Upper Handle Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP )
(Superseded to 104-9364-03)

$

$

Not available

Lawn-Boy 73-0290

Tube-Upper Handle Used on Machines Serial Nos. (1000101 Thru 1011100 )

Note: Not Illustrated

$99.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 32112-1

Push Nut

$6.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 73-0251

Sleeve-Chute Crank

$

$

Not available

12

Lawn-Boy 33-8951

Screw-Hex. Hd. Mach.

$1.49

$

In Stock, Qty 10

0

13

Lawn-Boy 3296-12

Nut-Lock

$1.49

$

In Stock, Qty 6

0

14

Lawn-Boy 73-0490

Decal-Escutcheon

$

$

Not available

15

Lawn-Boy 73-0240

Rod-Chute Crank

$

$

Not available

16

Lawn-Boy 73-0230

Gear-Chute Crank

$10.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 73-0310

Plate-Escutcheon
(Superseded to 73-0310-03)

$

$

Not available

18

Lawn-Boy 256-306

Bushing-Snap In

$1.49

$

In Stock, Qty 9

0

19

Lawn-Boy 73-3490

Lock-Slider Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP)

$

$

Not available

20

Lawn-Boy 73-3450

Spring Used on Machines Serial Nos. (1100101 Thru 1111100 & 1200101 & UP)

$1.99

$

In Stock, Qty 6

0

21

Lawn-Boy 73-3710

Brake-Gear

$6.99

$

Usually ships in 3-6 days

0
