38020 - Toro SnowMaster 20 Snow Thrower (SN: 008000001 - 008999999) (1978) CARBURETOR NO. 631887 Parts Diagram

SnowMaster 20 Snow Thrower

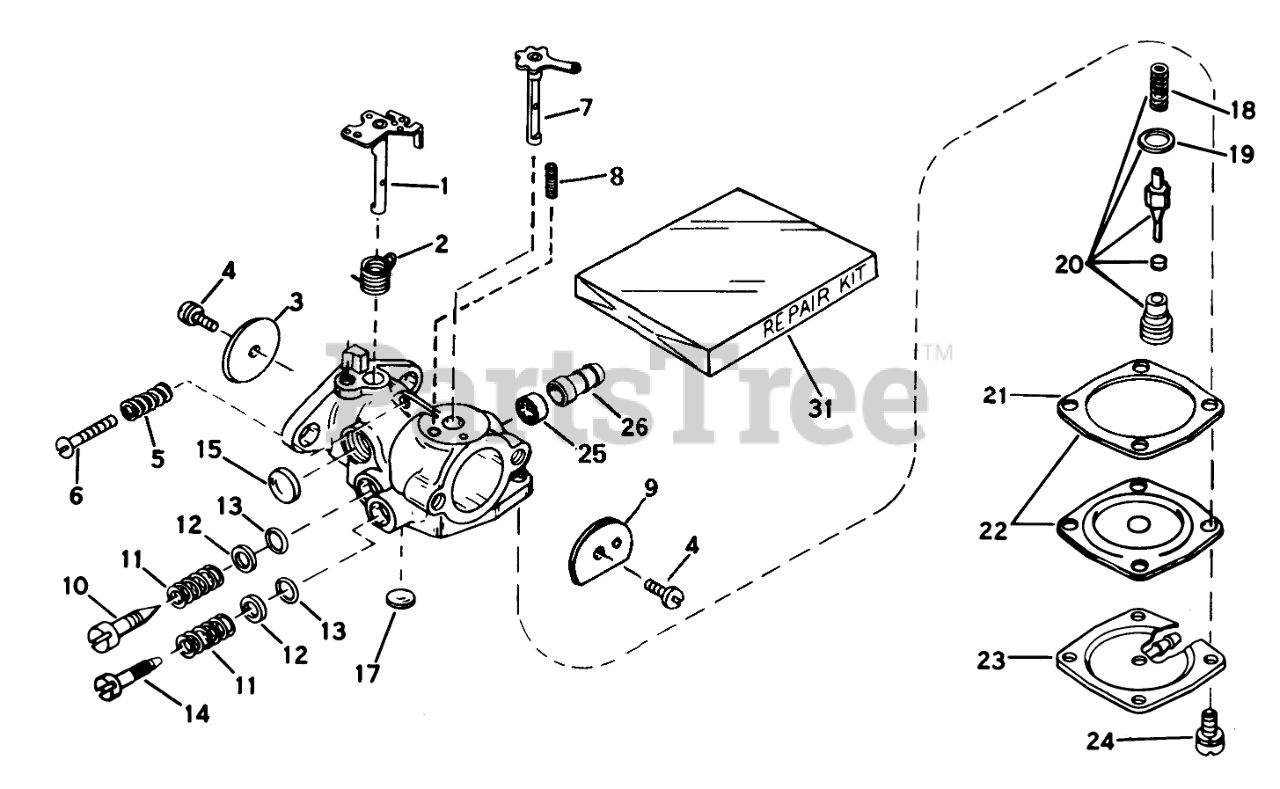

CARBURETOR NO. 631887 Parts Diagram

  • Title
1

Tecumseh 631868

Shaft & Lever Assy., Throttle

$7.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631066

Spring Return

$

$

Not available

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, Qty 5

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

7

Tecumseh 631888

Shaft & Lever Assembly

$

$

Not available

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 31837

Shutter-Choke

$1.99

$

In Stock, only 1 left!

0

10

Tecumseh 631562

Screw-Idle Adjustment

$5.49

$

In Stock, Qty 11

0

11

$1.99

$

In Stock, Qty 8

0

12

$1.99

$

In Stock, Qty 6

0

13

Tecumseh 630740

"O"Ring

Note: Indicates items included in Repair Kit part no. 631893.

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 630898

Screw Main Adjustment

$2.49

$

In Stock, Qty 8

0

15

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in Repair Kit part no. 631893.

$1.99

$

In Stock, only 1 left!

0

17

Tecumseh 630746

Plug Welch
(Superseded to 632554)

Note: Indicates items included in Repair Kit part no. 631893.

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 631049

Spring-Valve

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket-Valve Seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932A

Inlet Needle, Seat, Spring & Gasket Assembly (Incl.Nos.18 & 19)

Note: Indicates items included in Repair Kit part no. 631893.

$9.49

$

In Stock, Qty 11

0

21

Tecumseh 630750

Gasket-Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 2 left!

0

22

Tecumseh 630978

Diaphragm Assembly (Incl. No. 21)

Note: Indicates items included in Repair Kit part no. 631893.

$5.99

$

In Stock, only 4 left!

0

23

Tecumseh 631653

Cover, Diaphragm

$10.99

$

Usually ships in 3-12 days

0

24

Tecumseh 650545

Screw, Diaphragm Cover

$1.99

$

Usually ships in 3-12 days

0

25

Tecumseh 631201

Valve Check

$21.99

$

Usually ships in 3-12 days

0

26

Tecumseh 631803

Fuel Fitting
(Superseded to 632164)

$3.99

$

In Stock, only 1 left!

0

31

Tecumseh 631893

Kit-Repair
(Superseded to 631893A)

$23.99

$

In Stock, Qty 5

0
