38015 (421) - Toro Snow Thrower (SN: 001000001 - 001999999) (1981) CARBURETOR NO. 632113 Parts Diagram

Snow Thrower

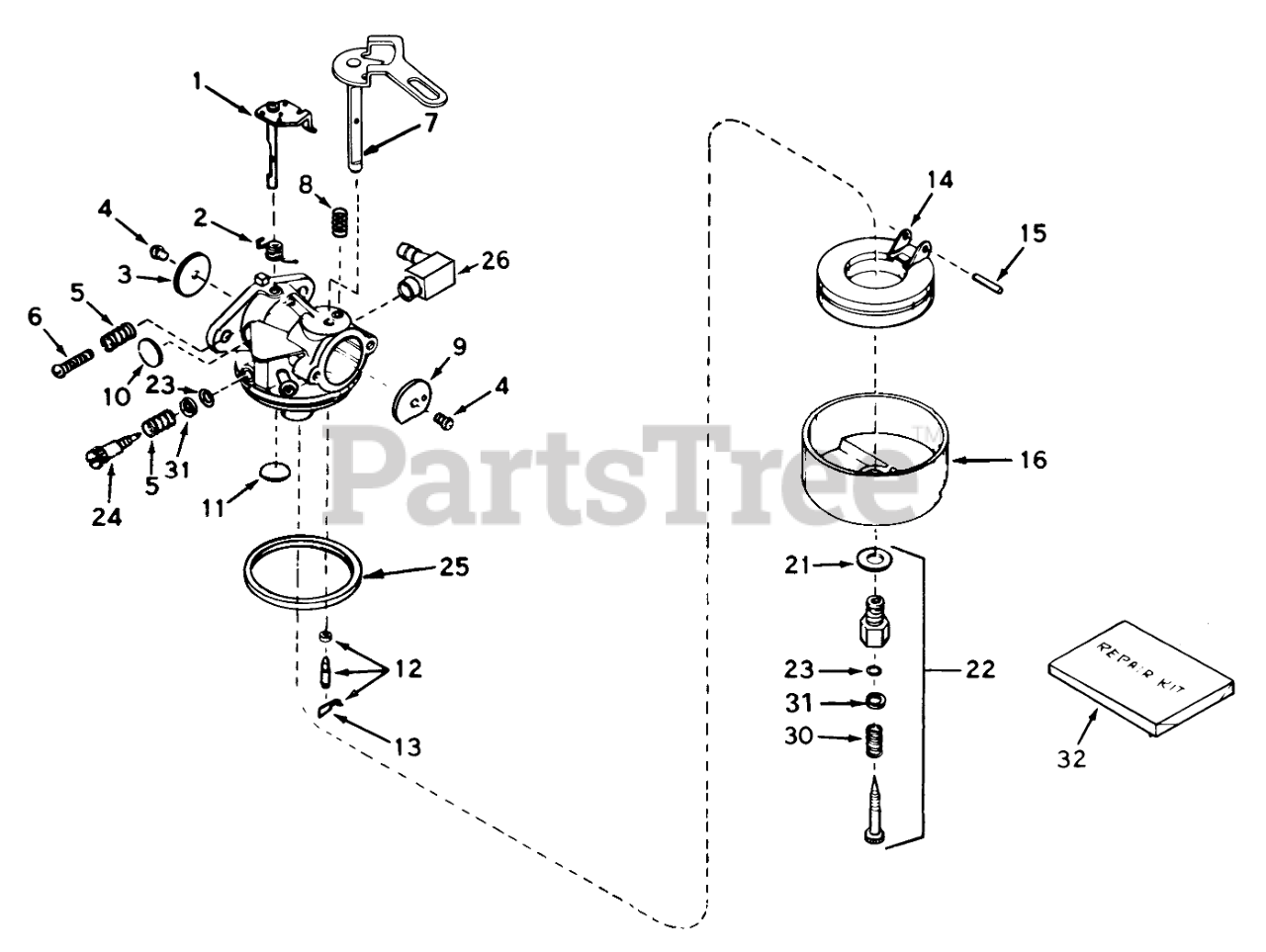

CARBURETOR NO. 632113 Parts Diagram

  • Title
1

Tecumseh 631615

Throttle Shaft and Lever ASM

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 632016

Spring, Return
(Superseded to 631767)

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

In Stock, only 1 left!

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 632108

Choke Shaft and Lever Asm

$235.99

$

In Stock, only 1 left!

0

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 631815

Shutter-choke

$1.99

$

In Stock, only 3 left!

0

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Indicates items included in Repair Kit part no. 31840

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Indicates items included in Repair Kit part no. 31840

$1.99

$

In Stock, only 3 left!

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assy. (Incl. Ref. #13)
(Superseded to 631021B)

Note: Indicates items included in Repair Kit part no. 31840

$6.99

$

In Stock, Qty 13

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, only 3 left!

0

15

Tecumseh 631024

Shaft-Float

Note: Indicates items included in Repair Kit part no. 31840

$1.99

$

In Stock, Qty 11

0

16

Tecumseh 631867

Bowl-Float (no drain)

$3.49

$

In Stock, Qty 14

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, only 1 left!

0

22

Tecumseh 31839

Adjustment Screw Assy., Main (Incl. Ref. #21, 23, 30 &31)

Note: Indicates items included in Repair Kit part no. 31840

$15.99

$

Usually ships in 3-12 days

0

23

Tecumseh 630740

"O"Ring

Note: Indicates items included in Repair Kit part no. 31840

$2.49

$

In Stock, only 1 left!

0

24

Tecumseh 631078

Screw, Idle Adj.
(Superseded to 631838)

Note: Indicates items included in Repair Kit part no. 31840

$3.99

$

In Stock, only 2 left!

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Indicates items included in Repair Kit part no. 31840

$2.49

$

In Stock, only 2 left!

0

26

Tecumseh 631807

Fitting-Fuel

$8.49

$

In Stock, only 2 left!

0

30

$1.99

$

In Stock, Qty 9

0

31

$1.99

$

In Stock, Qty 7

0

32

Tecumseh 31840

Kit-Repair

$20.99

$

In Stock, only 4 left!

0
