38015 (421) - Toro Snow Thrower (SN: 000000001 - 000999999) (1980) ENGINE TECUMSEH MODEL HS40-55513F Parts Diagram

Snow Thrower

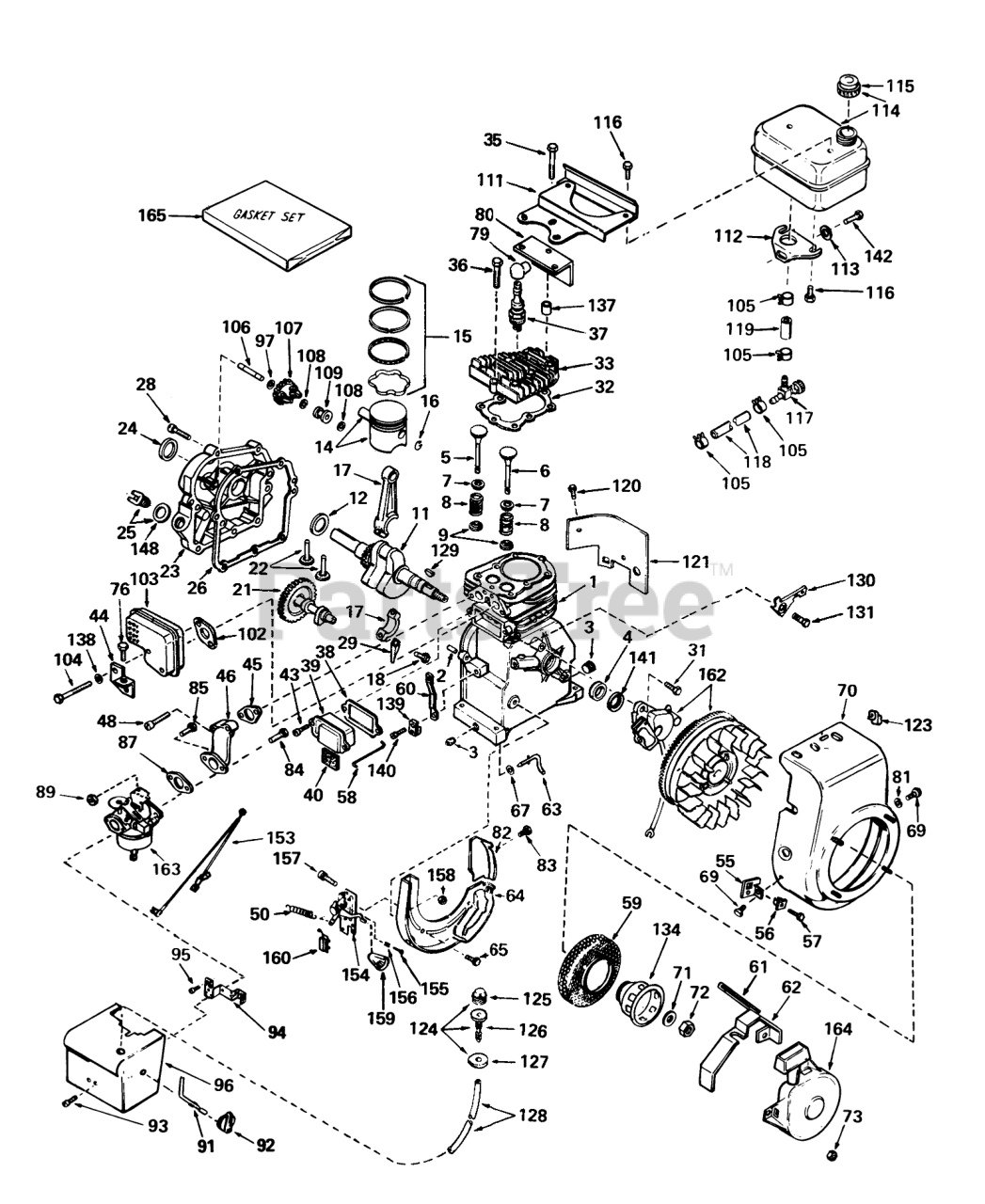

ENGINE TECUMSEH MODEL HS40-55513F Parts Diagram

  • Title

1

Tecumseh 33014A

Cylinder Assembly (Incl. Ref. #2, 3 & 4)
(Superseded to 36561)

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 2 left!

0

4

Tecumseh 32600

Seal-Oil

$

$

Not available

5

Tecumseh 32644

Valve, Intake (Std.)(Incl. Ref. #7, 8 & 9)
(Superseded to 32644A)

$9.99

$

Usually ships in 3-12 days

0

5

Tecumseh 32645

Valve, Intake (1/32" Oversize)(Incl. Ref. #7, 8 & 9)
(Superseded to 32645A)

$61.99

$

In Stock, only 2 left!

0

6

Tecumseh 29313B

Valve, Exhaust (Std.)(Incl. Ref. #7, 8 & 9)
(Superseded to 29313C)

$

$

Not available

6

Tecumseh 29315B

Valve, Exhaust (1/32" Oversize)(Incl. Ref. #7, 8 & 9)
(Superseded to 29315C)

$

$

Not available

7

Tecumseh 31671

Cap-Upper Valve Spring

$1.49

$

In Stock, only 2 left!

0

8

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

9

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 32890

Crankshaft Assembly
(Superseded to 32890A)

$

$

Currently unavailable

12

Tecumseh 32323

Washer-Thrust

$8.49

$

Usually ships in 3-12 days

0

14

Tecumseh 32603B

Piston & Pin Assembly (Incl. Ref. #16)(Std.)
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14

Tecumseh 34520

Piston, Pin & Ring Assembly (Incl. Ref. #15& 16)(Std.)
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

14

Tecumseh 32604B

Piston & Pin Assembly (Incl. Ref. #16)(.010 Oversize)
(Superseded to 35545A)

$

$

Not available

14

Tecumseh 34521

Piston, Pin & Ring Assy. (Incl. Ref. #15 & 16)(.010 Oversize)
(Superseded to 35545A)

$

$

Not available

14

Tecumseh 32605B

Piston & Pin Assembly (Incl. Ref. #16)(.020 Oversize)
(Superseded to 35546)

$

$

Not available

14

Tecumseh 34522

Piston, Pin & Ring Assy. (Incl. Ref. #15 & 16)(.020 Oversize)
(Superseded to 35546)

$

$

Not available

15

Tecumseh 32606

Ring Set Piston (Std.)
(Superseded to 34854)

$

$

Not available

15

Tecumseh 32607

Ring Set Piston (.010 Oversize)
(Superseded to 34855)

$

$

Not available

15

Tecumseh 32608

Ring Set Piston (.020 Oversize)
(Superseded to 34856)

$

$

Not available

16

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

17

Tecumseh 32875

Rod Assembly, Connecting (Incl. Ref. #18 & 29)
(Superseded to 32875A)

$47.99

$

In Stock, only 1 left!

0

18

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

21

Tecumseh 33158

Camshaft
(Superseded to 37040)

$30.99

$

In Stock, only 1 left!

0

22

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

23

Tecumseh 32700A

Cover, Cylinder (Incl. Ref. #24, 25, 106 & 148)
(Superseded to 32700B)

$

$

Not available

24

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 17

0

25

Tecumseh 27625

Plug, Oil Filler (Incl. Ref. #148)

$2.49

$

In Stock, Qty 7

0

26

Tecumseh 27677

Gasket-Cylinder Cover
(Superseded to 27677A)

Note: Indicates items included in Gasket Set part no. 33240

$7.49

$

In Stock, Qty 7

0

28

Tecumseh 30564

Screw
(Superseded to 650451)

$1.99

$

In Stock, only 4 left!

0

29

Tecumseh 32654

Dipper-Oil

$8.99

$

In Stock, only 4 left!

0

31

Tecumseh 650489

Screw

$

$

Not available

32

Tecumseh 33015

63573 GIL 42 SNWTHW
(Superseded to 33015A)

Note: Indicates items included in Gasket Set part no. 33240

$11.99

$

Usually ships in 3-12 days

0

33

Tecumseh 33016

Head Cylinder
(Superseded to 37675)

$41.99

$

In Stock, only 1 left!

0

35

Tecumseh 650694A

Screw (5/16-18 X 2)

$3.49

$

In Stock, Qty 20+

0

36

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

37

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 13

0

37

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 13

0

38

Tecumseh 31619

Gasket Breather
(Superseded to 31619A)

Note: Indicates items included in Gasket Set part no. 33240

$7.49

$

In Stock, only 2 left!

0

39

Tecumseh 31337

Breather Assembly (Incl. Ref. #38 & 40)
(Superseded to 31337B)

$18.99

$

In Stock, only 1 left!

0

40

Tecumseh 31410

Element-Breather

$1.99

$

In Stock, Qty 20+

0

43

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

44

Tecumseh 33333

Bracket-Cover, Carburetor

$3.99

$

Usually ships in 3-12 days

0

45

Tecumseh 32649

Gasket, Intake
(Superseded to 32649A)

Note: Indicates items included in Gasket Set part no. 33240

$2.99

$

In Stock, Qty 18

0

46

Tecumseh 32859

Pipe, Intake

$

$

Not available

48

Tecumseh 650664

Screw (1/4-20 x 1-19/32)

$1.99

$

In Stock, Qty 9

0

50

Tecumseh 31426

Spring-Extension

$3.99

$

In Stock, Qty 20+

0

55

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

56

Tecumseh 28545

Grommet

$1.99

$

In Stock, only 4 left!

0

57

Tecumseh 650643

Screw
(Superseded to 650760)

$1.99

$

In Stock, only 2 left!

0

58

Tecumseh 32698

Link-Governor to Throttle

$1.99

$

In Stock, only 4 left!

0

59

Tecumseh 33668

Screen-Starter

$7.49

$

Usually ships in 3-12 days

0

60

Tecumseh 32871

Lever, Governor

$

$

Currently unavailable

61

Tecumseh 32576

Seal, Snowguard

$3.99

$

Usually ships in 3-12 days

0

62

Tecumseh 34127

Guard-Starter

$

$

Not available

63

Tecumseh 31334

Rod-Governor

$5.49

$

In Stock, only 1 left!

0

64

Tecumseh 33342

Baffle-Blower Housing
(Superseded to 36552)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$9.49

$

Usually ships in 3-12 days

0

65

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

67

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

69

Tecumseh 29212

Screw
(Superseded to 29716)

$1.49

$

In Stock, Qty 6

0

70

Tecumseh 33663B

Housing, Blower
(Superseded to 33663E)

$

$

Not available

71

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

72

Tecumseh 650607

Hex Nut

$1.99

$

In Stock, Qty 7

0

73

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

76

Tecumseh 650735

Screw (10-24 x 3/8)

$1.99

$

In Stock, only 2 left!

0

79

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

80

Tecumseh 33344

Baffle-Heat

$5.49

$

In Stock, only 1 left!

0

81

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

82

Tecumseh 33341

Baffle-Extension
(Superseded to 35883)

$1.99

$

In Stock, Qty 5

0

83

Tecumseh 650701

Screw-Hex Washer Hd.

$1.99

$

Usually ships in 3-12 days

0

84

Tecumseh 6202

Screw
(Superseded to 6201)

$

$

Not available

85

Tecumseh 650601

Screw-Fil. Hd.

$

$

Currently unavailable

87

Tecumseh 26756

Gasket

Note: Indicates items included in Gasket Set part no. 33240

$2.99

$

In Stock, Qty 8

0

89

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

91

Tecumseh 34582

Rod-Choke

$5.49

$

Usually ships in 3-12 days

0

92

Tecumseh 34585

Knob-Control
(Superseded to 35438)

$3.99

$

In Stock, only 1 left!

0

93

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

94

Tecumseh 34583

Bracket-Choke
(Superseded to 34583A)

$12.99

$

In Stock, Qty 6

0

95

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

96

Tecumseh 34134

Cover, Carburetor

$73.99

$

Usually ships in 3-12 days

0

97

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 7

0

102

Tecumseh 26754

Gasket-Intake
(Superseded to 26754A)

Note: Indicates items included in Gasket Set part no. 33240

$1.99

$

In Stock, Qty 8

0

103

Tecumseh 32648

Muffler
(Superseded to 35771A)

$32.99

$

In Stock, only 1 left!

0

104

Tecumseh 650327

Screw-Fil. Hd.
(Superseded to 650327A)

$6.99

$

In Stock, Qty 13

0

105

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

106

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 3 left!

0

107

Tecumseh 30591

Gear Assembly, Governor (Incl. Ref. #97)

$13.99

$

In Stock, only 1 left!

0

108

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

109

Toro 20588A

Spool, Governor

$

$

Currently unavailable

111

Tecumseh 28371B

Plate-Fuel Tank
(Superseded to 36247)

$11.99

$

Usually ships in 3-12 days

0

112

Tecumseh 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

113

Tecumseh 650675

Washer

$1.99

$

Usually ships in 3-12 days

0

114

Tecumseh 33120

Tank Assembly, Fuel (Incl. Ref. #115& 116)
(Superseded to 35584)

$45.99

$

In Stock, only 4 left!

0

115

Tecumseh 30998B

Cap, Fuel
(Superseded to 34210)

$8.49

$

In Stock, Qty 12

0

116

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

117

Tecumseh 32961

Valve-Shut Off
(Superseded to 35857)

$13.99

$

Usually ships in 3-12 days

0

118

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, Qty 9

0

119

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

120

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

121

Tecumseh 29745

Extension-Blower

$3.99

$

Usually ships in 3-12 days

0

123

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

124

Tecumseh 32182

Primer Assembly (Incl. Ref. #125, 126 & 127)
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

125

Tecumseh 32183

33164A GILO"HITCH A
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

126

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

127

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

128

Tecumseh 32180B

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, only 4 left!

0

129

Tecumseh 610951

Key, FIywheel

$1.99

$

In Stock, only 3 left!

0

130

Tecumseh 34212

Bracket-Hold Down

$1.99

$

In Stock, Qty 5

0

131

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

134

Tecumseh 33667

Cup, Starter

$

$

Not available

137

Tecumseh 28212

pacer

$1.99

$

In Stock, Qty 5

0

138

Tecumseh 16644

Washer

$

$

Currently unavailable

139

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

140

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

141

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

142

Tecumseh 650805

Screw Assembly
(Superseded to 650561)

$1.99

$

In Stock, only 2 left!

0

148

Tecumseh 29673

Gasket

Note: Indicates items included in Gasket Set part no. 33240

$1.99

$

In Stock, only 3 left!

0

153

Tecumseh 34241

Wire-Ground

$3.99

$

Usually ships in 3-12 days

0

154

Tecumseh 33858A

Control Assembly, Speed (Incl. Ref. #155 thru 158 & 160)
(Superseded to 36677)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$47.99

$

In Stock, only 1 left!

0

155

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

156

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

157

Tecumseh 650139

Screw

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

In Stock, only 4 left!

0

158

Tecumseh 30322

Nut-Lock

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$1.99

$

Usually ships in 3-12 days

0

159

Tecumseh 32410

Knob-Control

$5.49

$

In Stock, only 4 left!

0

160

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

162

Tecumseh 610944A

Magneto

$

$

Currently unavailable

163

Tecumseh 632113

Carburetor (Incl. Ref. #87)
(Superseded to 632113A)

$121.99

$

Usually ships in 3-12 days

0

164

Tecumseh 590473

Starter Assy., Rewind
(Superseded to 590602)

$

$

Not available

165

Tecumseh 33240

Gasket
(Superseded to 33240B)

$34.99

$

In Stock, only 2 left!

0
