38014 - Toro SnowMaster 14 Snow Thrower (SN: 008000001 - 008999999) (1978) UPPER MAIN FRAME Parts Diagram

SnowMaster 14 Snow Thrower

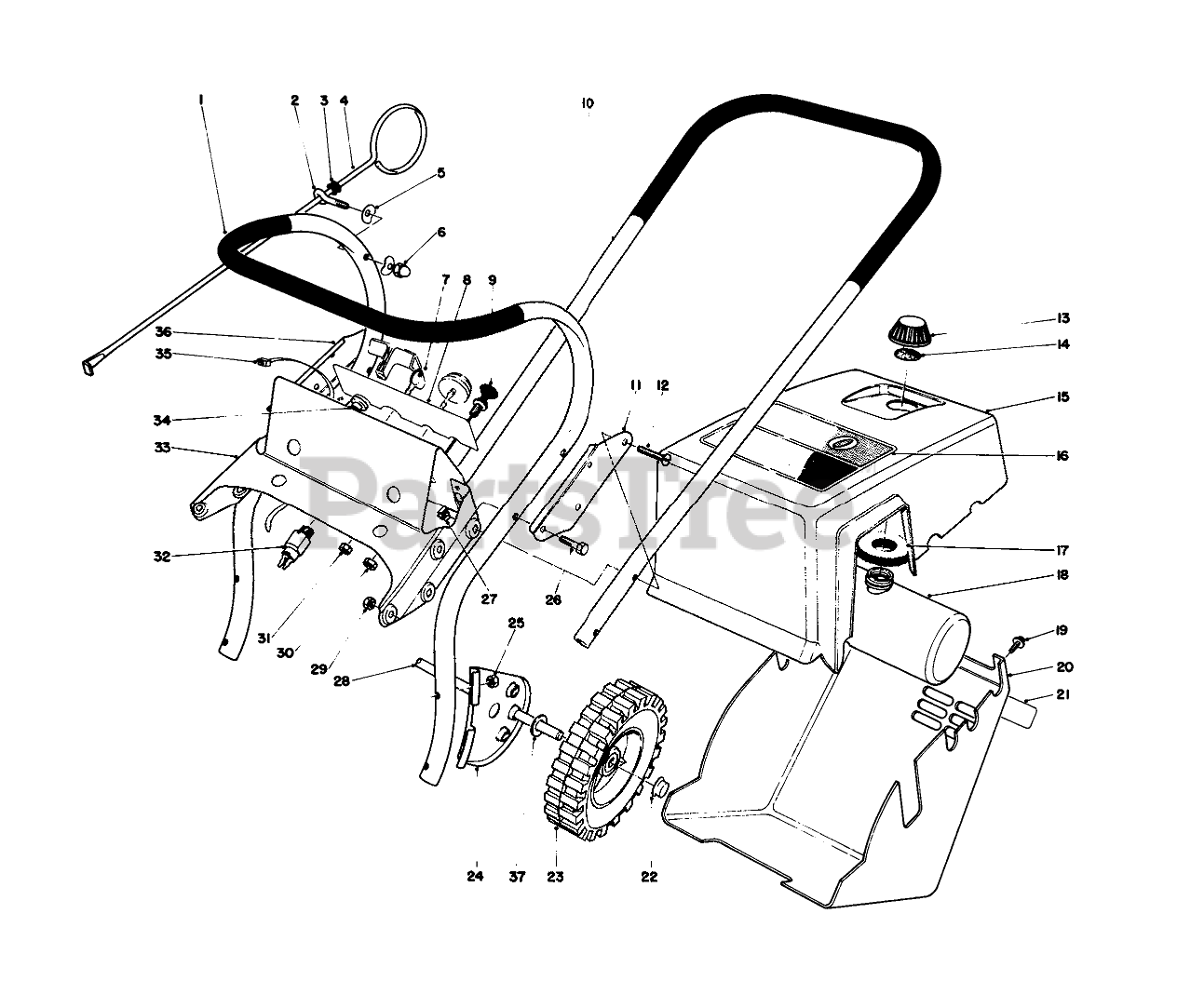

UPPER MAIN FRAME Parts Diagram

  • Title
1

Toro 33-4480

LOWER HANDLE

$

$

Not available

2

Toro 3-9278

Bolt-Eye
(Superseded to 52-7120)

$

$

Not available

3

Toro 237-73

GROMMET

$

$

Not available

4

Toro 5-3371

Vane Adj. Rod

$

$

Not available

5

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

6

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

7

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

8

Toro 29-5840

CONTROL PANEL DECAL

$

$

Not available

9

Toro 29-5790

CHOKE CONTROL

$

$

Not available

10

Toro 33-4520

Upper Handle

$

$

Not available

11

Toro 3-7503

SPLICE PLATE

$

$

Not available

12

Toro 32140-100

Sems Mach. Screw
(Superseded to 108-7301)

$1.99

$

In Stock, only 1 left!

0

13

Toro 23-4380

Gas Cap Assy. (Incl. Ref. #14)
(Superseded to 42-0680)

$

$

Not available

14

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

15

Toro 6-9859

Shroud (Incl. Ref. #16)

$

$

Not available

16

Toro 29-5820

Decal-Toro

$

$

Not available

17

Toro 25-1610

FOAM PAD

$

$

Not available

18

Toro 6-3059

Gas Tank Assembly (Incl. Ref. #13 & 14)
(Superseded to 42-3970)

$

$

Not available

19

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

20

Toro 6-9849

Lower Shroud (Incl. Ref. #21)

$

$

Not available

21

Toro 29-5830

Decal-Instruction

$

$

Not available

22

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

23

Toro 23-3250

WHEEL

$20.99

$

In Stock, Qty 5

0

24

Toro 25-6930

Wheel Bracket

$

$

Not available

25

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

26

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 3290-303

Nut Retainer

$

$

Not available

28

$

$

Not available

29

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 20+

0

30

Toro 3290-385

PAL NUT/CHOKE CNTRL

$

$

Not available

31

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

32

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, Qty 11

0

33

Toro 6-9839

Tank Support & Control Panel (Incl. Ref. #8)

$

$

Not available

34

Toro 23-7470

GUIDE-ROPE, STARTER

$23.99

$

Usually ships in 3-6 days

0

35

Toro 3290-336

Strap
(Superseded to 3290-379)

$0.99

$

In Stock, only 3 left!

0

36

Toro 3-7504

Plate-Splice

$

$

Not available

37

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
