38014 - Toro SnowMaster 14 Snow Thrower (SN: 008000001 - 008999999) (1978) MAGNETO NO. 610794A Parts Diagram
SnowMaster 14 Snow Thrower

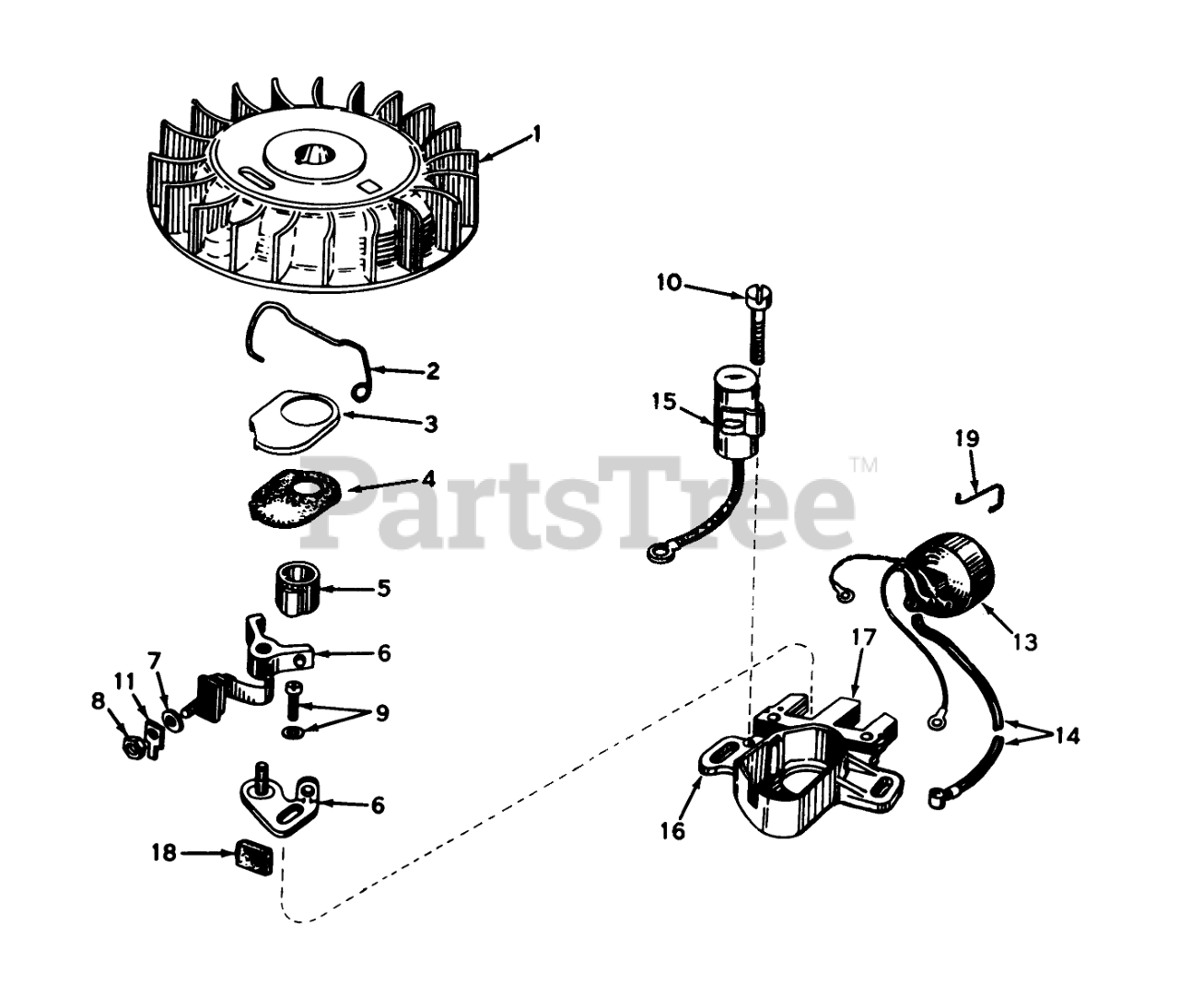

MAGNETO NO. 610794A Parts Diagram
Tecumseh 610781A
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
Tecumseh 30551
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
Tecumseh 610947
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$3.99
$
Tecumseh 610948
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$3.99
$
Tecumseh 30552
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
Tecumseh 30547A
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$18.99
$
Tecumseh 610385
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
Tecumseh 610408
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Currently unavailable
Tecumseh 29181
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
Tecumseh 610593
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$1.99
$
Tecumseh 33356
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$1.99
$
Tecumseh 30560A
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$48.99
$
Tecumseh 30554
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
Tecumseh 30548A
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$13.99
$
Tecumseh 30545
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
Tecumseh 30561B
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
Tecumseh 30549
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$1.99
$
Tecumseh 31311
Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.
$
$
Not available
