38014 - Toro SnowMaster 14 Snow Thrower (SN: 008000001 - 008999999) (1978) ENGINE TECUMSEH MODEL NO. AH520 TYPE 1584 Parts Diagram

SnowMaster 14 Snow Thrower

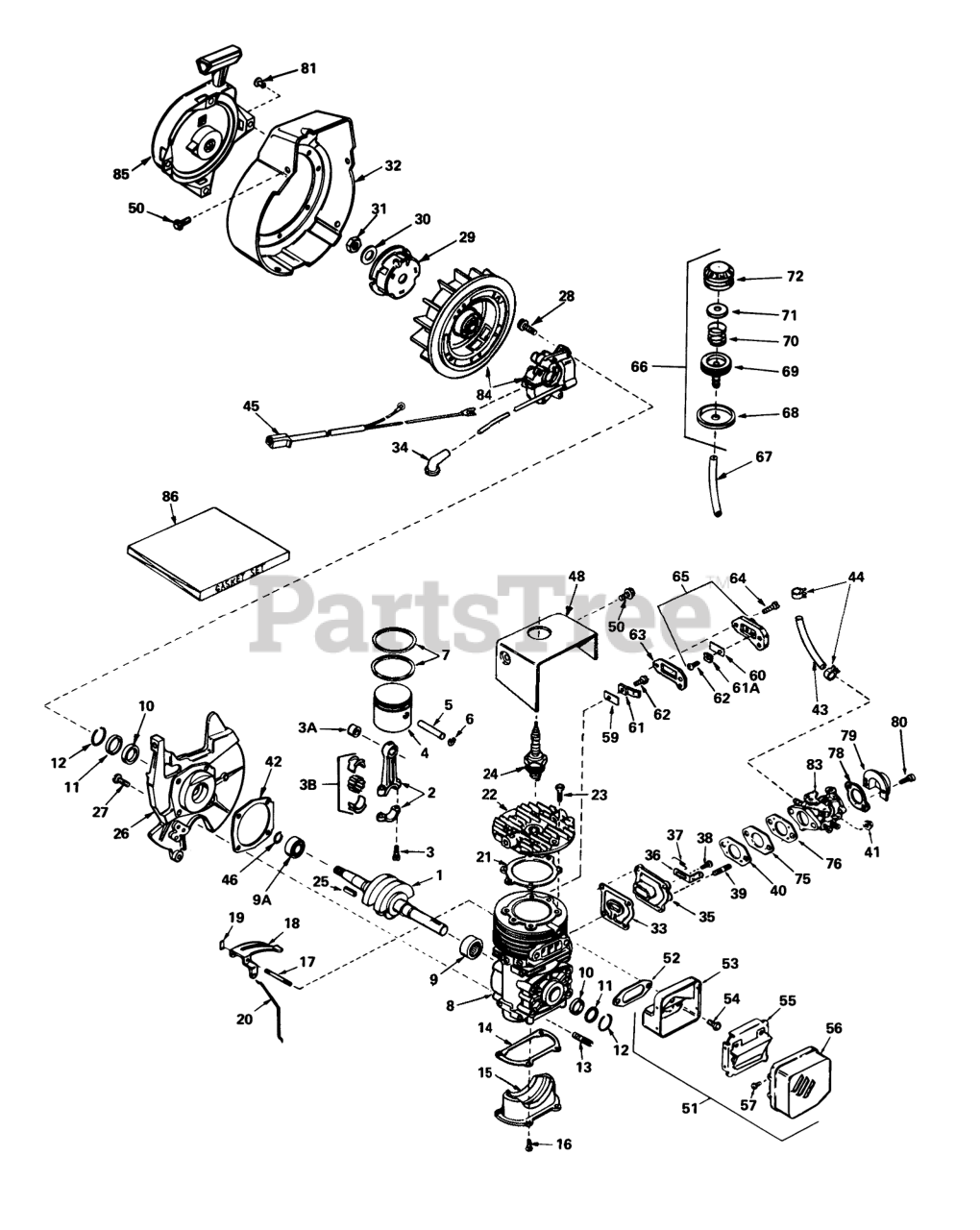

ENGINE TECUMSEH MODEL NO. AH520 TYPE 1584 Parts Diagram

  • Title

1

Tecumseh 290489

Crankshaft

$

$

Currently unavailable

2

Tecumseh 310244

Rod Assy., Connecting (Incl. Nos. 3, 3A & 3B)

$

$

Currently unavailable

3

Tecumseh 650633

Bolt-Rod, Connecting

$1.99

$

In Stock, only 2 left!

0

3A

Tecumseh 530104A

Bearing-Cartridge

$15.99

$

Usually ships in 3-12 days

0

3B

Tecumseh 530149

Bearing & Liner Set Needle

$27.99

$

Usually ships in 3-12 days

0

4

Tecumseh 310230

Piston
(Superseded to 310283A)

$33.99

$

In Stock, only 1 left!

0

5

Tecumseh 310178

Pin, Piston

$9.49

$

Usually ships in 3-12 days

0

6

Tecumseh 310167

Ring-Retaning

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 310190

Ring Set
(Superseded to 310289A)

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 250271

Block Assy., Cylinder (Incl. Nos. 9, 10 thru 13, 17 & 40)
(Superseded to 250271B)

$

$

Currently unavailable

9

Tecumseh 530105

Bearing-Cartridge

$11.99

$

Usually ships in 3-12 days

0

9A

Tecumseh 530110

Bearing-Ball

$30.99

$

Usually ships in 3-12 days

0

10

Tecumseh 510105

Seal, Crankshaft

$2.99

$

Usually ships in 3-12 days

0

11

Tecumseh 510106

Retainer, Crankshaft Seal
(Superseded to 510106A)

$3.99

$

In Stock, only 1 left!

0

12

Tecumseh 510109A

Spring, Crankshaft Seal Retainer

$3.99

$

Usually ships in 3-12 days

0

13

Tecumseh 650796

Stud

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 510270

Gasket, Cover
(Superseded to 510270A)

Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.

$5.49

$

Usually ships in 3-12 days

0

15

Tecumseh 570370

Plate, Cover
(Superseded to 570370A)

$

$

Not available

16

Tecumseh 650579

Screw (T-25, 10-24 x 1/2)

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 490276

Shaft, Air Vane

$

$

Currently unavailable

18

Tecumseh 490287

Vane Assy., Air

$

$

Currently unavailable

19

Tecumseh 490278

Clip,Air Vane

$

$

Currently unavailable

20

Tecumseh 490289

Link, Governor

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 510274

Gasket, Head
(Superseded to 510274A)

$1.99

$

In Stock, Qty 6

0

22

Tecumseh 250240

Support
(Superseded to 250240B)

$35.99

$

Usually ships in 3-12 days

0

23

Tecumseh 650477

Screw (T-30, 1/4-20 x 3/4)

$1.99

$

In Stock, Qty 20+

0

24

Tecumseh 610830A

Plug, Spark (RJ-13Y or equivalent)

$5.49

$

In Stock, only 2 left!

0

25

Tecumseh 650496

Key, Flywheel

$1.49

$

In Stock, Qty 20+

0

26

Tecumseh 350388

Base Assy., Shroud (Incl. Nos. 10, 11 & 12)
(Superseded to 350405A)

$50.99

$

Usually ships in 3-12 days

0

27

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

28

Tecumseh 650747

Screw, Hex Washer Hd.

$

$

Currently unavailable

29

Tecumseh 590416

Starter Cup

$9.99

$

Usually ships in 3-12 days

0

30

Tecumseh 650763

Washer-Spring
(Superseded to 650815)

$1.99

$

In Stock, Qty 10

0

31

Tecumseh 650390

Nut-Flywheel

$1.99

$

In Stock, only 3 left!

0

32

Tecumseh 350391

Housing, Blower
(Superseded to 350392)

$

$

Currently unavailable

33

Tecumseh 510312

Gasket, Port
(Superseded to 510312A)

Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.

$1.99

$

In Stock, Qty 5

0

34

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

35

Tecumseh 570471

Adapter, Cover

$

$

Not available

36

Tecumseh 570633

Lever, Adjusting

$

$

Currently unavailable

37

Tecumseh 570417

Spring, Governor

$1.99

$

In Stock, only 4 left!

0

38

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 650527

Stud

$

$

Not available

40

Tecumseh 510229

Gasket, Carburetor 1/8" thick)
(Superseded to 510229A)

Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.

$3.99

$

Usually ships in 3-12 days

0

41

Tecumseh 650457

Locknut
(Superseded to 29752)

$1.99

$

In Stock, only 1 left!

0

42

Tecumseh 510292

Gasket, Shroud Base
(Superseded to 510292A)

Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.

$3.99

$

Usually ships in 3-12 days

0

43

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

44

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

45

Tecumseh 610999

Harness, Wire

$

$

Currently unavailable

46

Tecumseh 570630

Ring, Retaining

$

$

Currently unavailable

48

Tecumseh 350389

Shroud, Cylinder

$

$

Currently unavailable

50

Tecumseh 650356

Screw-Hex, Hd.

$1.99

$

Usually ships in 3-12 days

0

51

Tecumseh 390294

Muffler Assy. (Incl. Nos. 53 thru 57)

$

$

Currently unavailable

52

Tecumseh 510230

Gasket-Muffler
(Superseded to 510207A)

Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.

$5.49

$

Usually ships in 3-12 days

0

53

Tecumseh 390292

Base-Muffler
(Superseded to 390292A)

$

$

Currently unavailable

54

Tecumseh 650497

Screw
(Superseded to 650911)

$1.99

$

Usually ships in 3-12 days

0

55

Tecumseh 390295

Baffle, Muffler

$

$

Currently unavailable

56

Tecumseh 390296

Cover, Muffler
(Superseded to 390260)

$

$

Currently unavailable

57

Tecumseh 650578

Screw

$1.99

$

In Stock, only 2 left!

0

59

Tecumseh 470136

Reed, Compression Release

$3.99

$

In Stock, only 2 left!

0

60

Tecumseh 470135

Reed, Compression Release

$5.49

$

In Stock, only 1 left!

0

61

Tecumseh 470151

Plate, Reed Hold Down

$

$

Currently unavailable

61A

Tecumseh 470137

Plate, Reed Hold Down

$2.49

$

In Stock, only 1 left!

0

62

Tecumseh 650654

Screw

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 510263

Gasket, Compression Release
(Superseded to 510263A)

Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.

$1.99

$

In Stock, only 4 left!

0

64

Tecumseh 650576

Screw
(Superseded to 650597)

$1.99

$

Usually ships in 3-12 days

0

65

Tecumseh 570437A

Cover Assy., Compression release (Incl. Nos. 60, 61A & 62)

$

$

Currently unavailable

66

Tecumseh 570629

Primer Assy. (Incl. Nos. 68 thru 72)
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

67

Tecumseh 32180A

Line, Primer
(Superseded to 32180C)

$6.99

$

In Stock, only 4 left!

0

68

Tecumseh 32312

Retainer, Primer Bulb
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

69

Tecumseh 32184

Body Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

70

Tecumseh 570443

Spring, Primer Bulb

$

$

Currently unavailable

71

Tecumseh 570444

Washer, Primer Bulb

$

$

Currently unavailable

72

Tecumseh 570442

Bulb, Primer
(Superseded to 570629B)

$10.99

$

In Stock, Qty 6

0

75

Tecumseh 570438A

Spacer

$3.99

$

In Stock, only 1 left!

0

76

Tecumseh 510241

Gasket, Carburetor (1/16"thick)
(Superseded to 510241A)

Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.

$4.49

$

In Stock, only 3 left!

0

78

Tecumseh 510206

Gasket
(Superseded to 35815)

$1.49

$

In Stock, Qty 20+

0

79

Tecumseh 570434

Baffle-Carburetor

$10.99

$

Usually ships in 3-12 days

0

80

Tecumseh 650229

Screw

$1.99

$

Usually ships in 3-12 days

0

81

Rivet, Pop (3/16" dia.) (Can be purchased locally)

$

$

Not available

83

Tecumseh 632035

Carburetor (Incl. No. 76)

$

$

Currently unavailable

84

Tecumseh 610794A

Magneto

$

$

Currently unavailable

85

Tecumseh 590537

Starter-Rewind
(Superseded to 590706)

$68.99

$

In Stock, only 1 left!

0

86

Tecumseh 510264D

Gasket Set (Incl. items marked )
(Superseded to 510264E)

Note: The complete magneto is not available as an assembly. The magneto is shown for reference purposes only. Order component parts individualyl as shown in parts list.

$26.99

$

In Stock, only 1 left!

0
