38010 (421) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

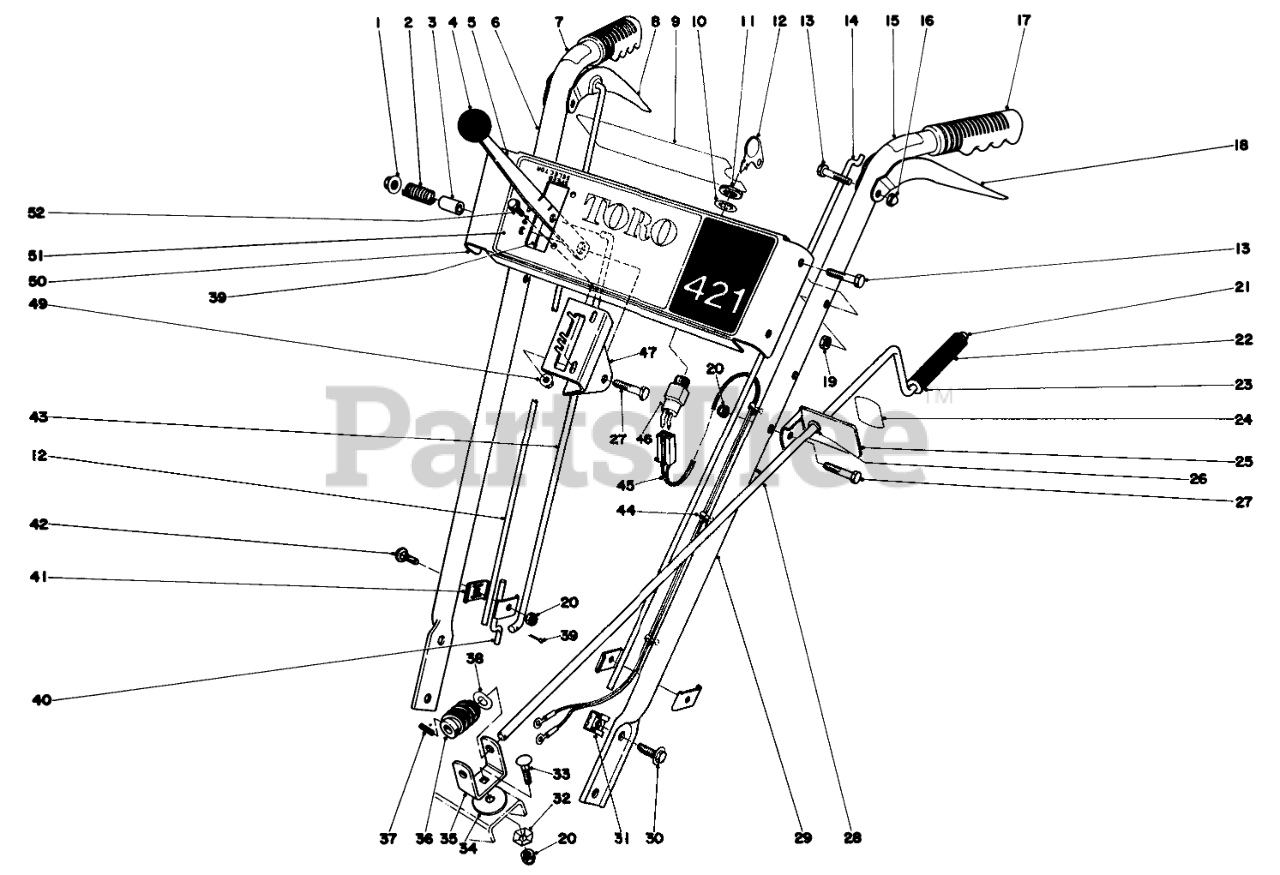

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

2

Toro 37-9150

SPRING

$10.99

$

In Stock, only 1 left!

0

3

Toro 37-8840

Spacer-Speed Control
(Superseded to 40-8130)

$10.99

$

In Stock, only 1 left!

0

4

Toro 233-21

KNOB

$13.99

$

Usually ships in 3-6 days

0

5

Toro 37-8820

SPEED SELECTOR B
(Superseded to 37-8820-03)

$

$

Not available

6

Toro 37-8710

Handle Ring

$

$

Not available

7

Toro 37-8650

Decal-Traction Engage

$

$

Not available

8

Toro 37-8690

Lever-Auger Control
(Superseded to 99-3243)

$

$

Not available

9

Toro 37-9140

Decal-Escutcheon Back

$

$

Not available

10

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

11

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

12

Toro 33-2010

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

13

Toro 321-37

SCREW-HH

$11.99

$

In Stock, only 2 left!

0

14

Toro 37-8730

Link Upper

$

$

Not available

15

Toro 37-8660

Decal-Auger Engage

$

$

Not available

16

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

17

Toro 37-9110

Grip
(Superseded to 74-1360)

$

$

Not available

18

Toro 37-8680

Lever-Traction Control
(Superseded to 99-3242)

$191.99

$

Usually ships in 3-6 days

0

19

Toro 321524

Nut

$

$

Currently unavailable

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

22

Toro 20-2060

CHUTE CONTROL GRIP

$

$

Not available

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

24

Toro 29-6370

CHUTE DECAL

$

$

Not available

25

Toro 25-6090

BRACKET-ROD, CHUTE
(Superseded to 12-7739)

$

$

Not available

26

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 8

0

27

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

29

Toro 37-8720

Handle Left

$

$

Not available

30

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

31

Toro 3290-196

NUT

$9.99

$

Usually ships in 3-6 days

0

32

Toro 3290-238

WASHER-LOCK

$3.99

$

Usually ships in 3-6 days

0

33

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

34

Toro 3-6715

WASHER

$

$

Not available

35

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

36

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

37

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

38

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

39

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

40

Toro 37-8750

Link-Auger Lower

$

$

Not available

41

Toro 37-9130

CLAMP CONTROL ROD

$

$

Not available

42

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

43

Toro 37-8780

Rod Speed Selector
(Superseded to 39-7570)

$41.99

$

Usually ships in 3-6 days

0

44

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

45

Toro 37-8980

WIRE HARNESS

$34.99

$

Usually ships in 3-6 days

0

46

Toro 29-5560

SWITCH-ON / OFF

$17.99

$

In Stock, only 2 left!

0

47

Toro 37-8810

Mount-Speed Selector
(Superseded to 39-1280-03)

$

$

Not available

49

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

50

Toro 37-8830

Panel-Escutcheon
(Superseded to 39-1260)

$

$

Not available

51

Toro 37-8670

Decal-Escutcheon
(Superseded to 39-1270)

$

$

Not available

52

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0
