38005 (1200) - Toro Power Curve Snow Thrower (SN: 049000001 - 049999999) (1994) HOUSING & ROTOR ASSEMBLY Parts Diagram

Power Curve Snow Thrower

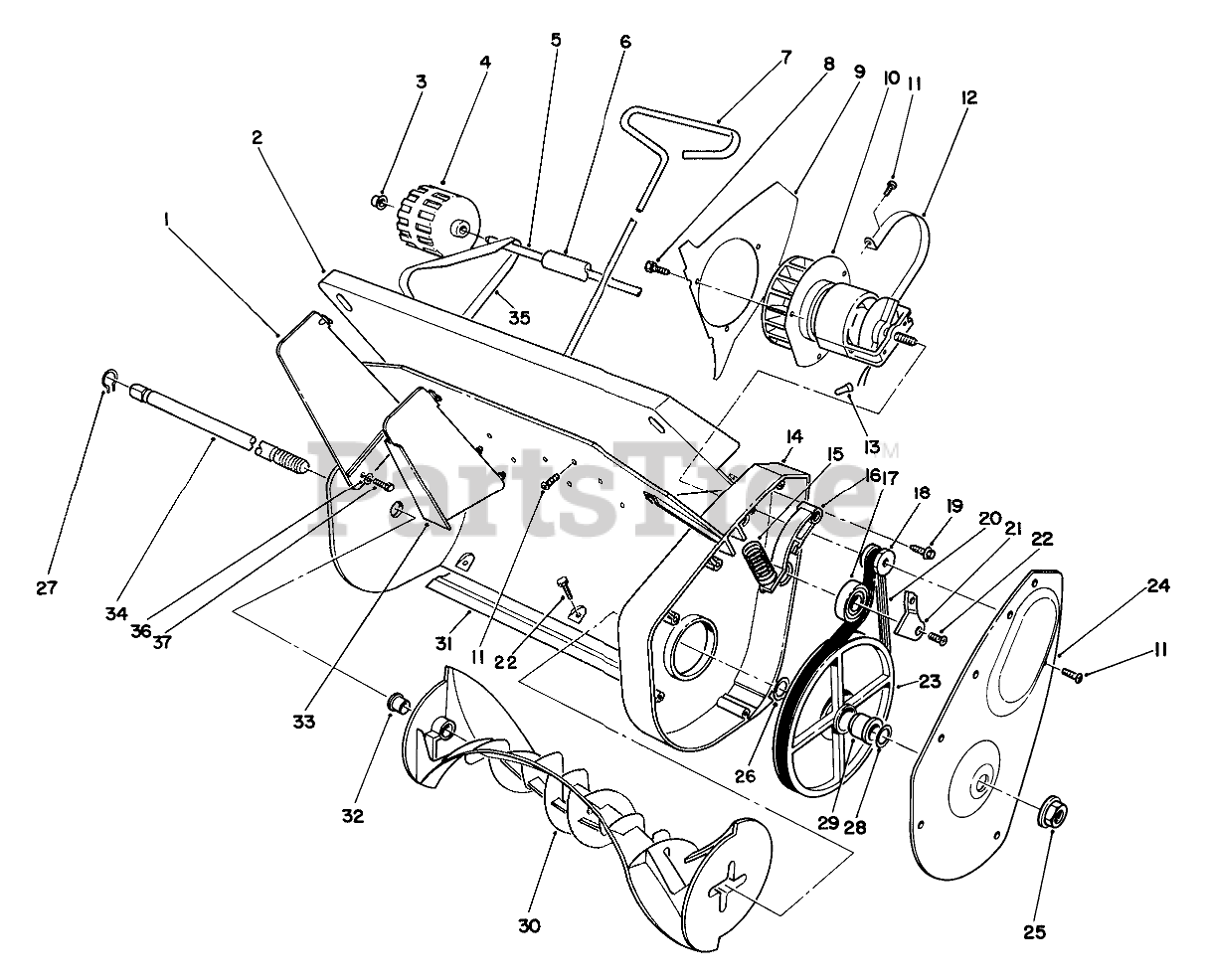

HOUSING & ROTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 64-9070

VANE - OUTER

$15.99

$

Usually ships in 3-6 days

0

2

Toro 64-9150

MOUNT - VANE
(Superseded to 94-5826)

$38.99

$

Usually ships in 3-6 days

0

3

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 73-5720

Wheel

$

$

Not available

5

Toro 37-6461

AXLE SHAFT

$

$

Not available

6

Toro 73-0252

SLEEVE, AXLE

$7.99

$

Usually ships in 3-6 days

0

7

Toro 61-8771

VANE ADJUSTING ROD

$42.99

$

Usually ships in 3-6 days

0

8

Toro 32144-30

10-16 X .31 SCREW

$2.49

$

Usually ships in 3-6 days

0

9

Toro 61-8720

AIR BAFFLE

$15.99

$

Usually ships in 3-6 days

0

10

Toro 61-4210

MOTOR, 1200 PWR CURVE

$

$

Not available

11

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Toro 61-8870

MOTOR STRAP

$7.99

$

Usually ships in 3-6 days

0

13

Toro 218-511

Connector

$

$

Not available

14

Toro 64-9100

HOUSING - 1200

$

$

Not available

15

Toro 61-8880

SPRING

$12.99

$

Usually ships in 3-6 days

0

16

Toro 73-5740

1200 PC - IDLER ARM

$14.99

$

In Stock, only 2 left!

0

17

Toro 61-8780

Bearing-Ball
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

18

Toro 61-8841

DRIVE PULLEY

$

$

Not available

19

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

20

Toro 61-8800

BELT - DRIVE

$46.99

$

Usually ships in 3-6 days

0

21

Toro 73-5750

1200 PC-IDLER PULL. RET

$

$

Not available

22

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

23

Toro 73-4990

PULLEY - DRIVEN

$29.99

$

Usually ships in 3-6 days

0

24

Toro 73-4980

Belt Case Cover
(Superseded to 73-4980-03)

$

$

Not available

25

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

26

Toro 37-8080

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

27

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

28

Toro 39-5190

THRUST WASHER (THICK)

$

$

Not available

29

Toro 73-3250

DRIVEN PULLEY BUSHING

$10.99

$

Usually ships in 3-6 days

0

30

Toro 64-9030

ROTOR, 1200

$

$

Not available

31

Toro 73-1650

1200 SCRAPER, 12"

$35.99

$

In Stock, only 1 left!

0

32

Toro 64-9120

BUSHING-ROTOR

$

$

Not available

33

Toro 64-9080

VANE - CENTER

$

$

Not available

34

Toro 73-4960

ROTOR SHAFT, 1200

$86.99

$

Usually ships in 3-6 days

0

35

Toro 64-8871

BRACKET-WHEEL,RH

$21.99

$

Usually ships in 3-6 days

0

Toro 64-8881

LH WHEEL BRKT-PAINTED

Note: Not illustrated

$21.99

$

Usually ships in 3-6 days

0

36

Toro 3256-75

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

37

Toro 32104-118

SCREW-PPH

$

$

Not available
