38005 (1200) - Toro Power Curve Snow Thrower (SN: 010000001 - 019999999) (1991) HOUSING & ROTOR ASSEMBLY Parts Diagram

Power Curve Snow Thrower

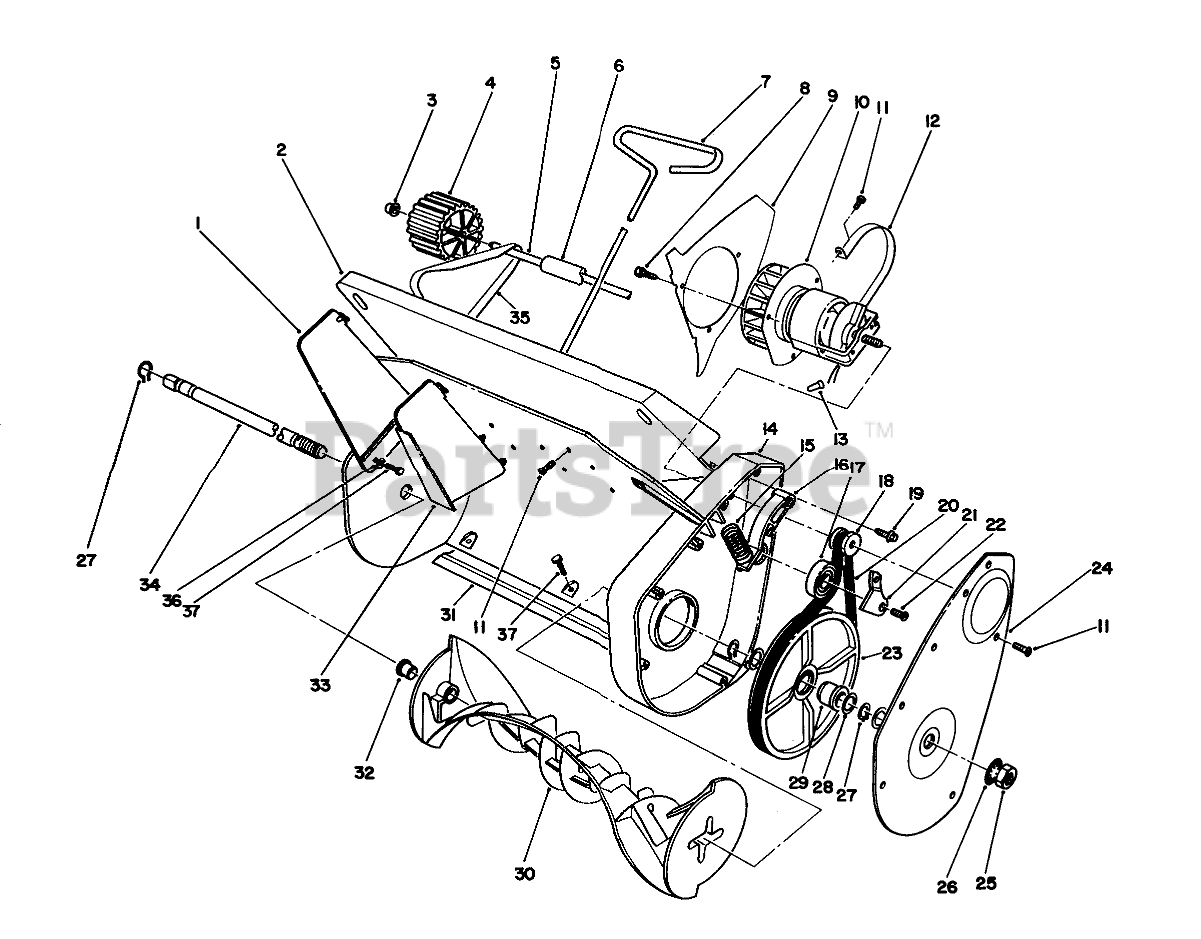

HOUSING & ROTOR ASSEMBLY Parts Diagram

  • Title
1

Toro 64-9070

VANE - OUTER

$15.99

$

Usually ships in 3-6 days

0

2

Toro 64-9150

MOUNT - VANE
(Superseded to 94-5826)

$38.99

$

Usually ships in 3-6 days

0

3

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

4

Toro 73-0440

Wheel

$

$

Not available

5

Toro 37-6461

AXLE SHAFT

$

$

Not available

6

Toro 73-0252

SLEEVE, AXLE

$7.99

$

Usually ships in 3-6 days

0

7

Toro 61-8771

VANE ADJUSTING ROD

$42.99

$

Usually ships in 3-6 days

0

8

Toro 32144-30

10-16 X .31 SCREW

$2.49

$

Usually ships in 3-6 days

0

9

Toro 61-8720

AIR BAFFLE

$15.99

$

Usually ships in 3-6 days

0

10

Toro 61-4210

MOTOR, 1200 PWR CURVE

$

$

Not available

11

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Toro 61-8870

MOTOR STRAP

$7.99

$

Usually ships in 3-6 days

0

13

Toro 218-511

Connector

$

$

Not available

14

Toro 64-9100

HOUSING - 1200

$

$

Not available

15

Toro 61-8880

SPRING

$12.99

$

Usually ships in 3-6 days

0

16

Toro 61-8740

1200 PC-IDLER ARM
(Superseded to 73-5740)

$14.99

$

In Stock, only 2 left!

0

17

Toro 61-8780

Bearing-Ball
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

18

Toro 61-8841

DRIVE PULLEY

$

$

Not available

19

Toro 32144-87

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

20

Toro 61-8800

BELT - DRIVE

$46.99

$

Usually ships in 3-6 days

0

21

Toro 61-8790

1200 PC-IDLER PULL. RET

$

$

Not available

22

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

23

Toro 64-9110

Pulley-Driven

$

$

Not available

24

Toro 61-8752

COVER,BELT CASE,PAINTED

$53.99

$

Usually ships in 3-6 days

0

25

Toro 3219-5

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

26

Toro 3254-4

WASHER-LOCK/INT

$0.99

$

In Stock, only 1 left!

0

27

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

28

Toro 73-0040

WASHER-THRUST

$1.99

$

Usually ships in 3-6 days

0

29

Toro 64-9121

DRIVEN PULLEY BUSHING

$

$

Not available

30

Toro 64-9030

ROTOR, 1200

$

$

Not available

31

Toro 73-1650

1200 SCRAPER, 12"

$35.99

$

In Stock, only 1 left!

0

32

Toro 64-9120

BUSHING-ROTOR

$

$

Not available

33

Toro 64-9080

VANE - CENTER

$

$

Not available

34

Toro 64-9130

ROTOR SHAFT, 1200

$

$

Not available

35

Toro 64-8871

BRACKET-WHEEL,RH

$21.99

$

Usually ships in 3-6 days

0

Toro 64-8881

LH WHEEL BRKT-PAINTED

$21.99

$

Usually ships in 3-6 days

0

36

Toro 3256-75

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

37

Toro 32104-118

SCREW-PPH

$

$

Not available
