38005 (1200) - Toro Power Curve Snow Thrower (SN: 000000001 - 000999999) (1990) HANDLE ASSEMBLY Parts Diagram

Power Curve Snow Thrower

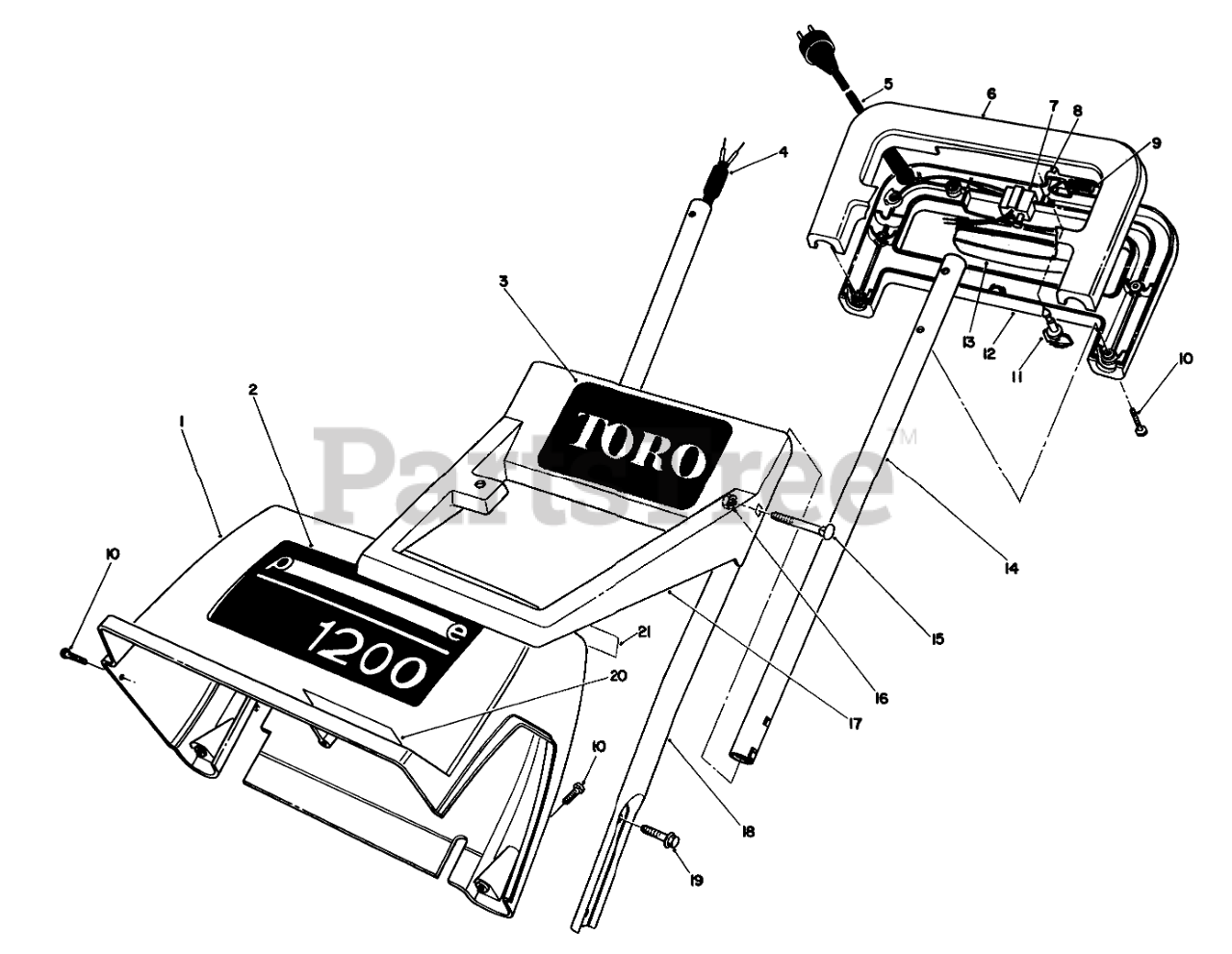

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 13-7849

Shroud (Incl. Ref. #2, 20, & 21)

$173.99

$

Usually ships in 3-6 days

0

2

Toro 64-9050

DECAL-TORO 1200

$

$

Not available

3

Toro 64-9020

DECAL-TORO

$

$

Not available

4

Toro 73-1600

WIRE HARNESS

$30.99

$

Usually ships in 3-6 days

0

5

Toro 42-0775

SUPPLY CORD, 1200

$

$

Not available

6

Toro 73-1690

1200PC-CONTROL HANDLE U

$32.99

$

Usually ships in 3-6 days

0

7

Toro 36-8340

SWITCH-STARTER

$25.99

$

In Stock, only 4 left!

0

8

Toro 37-8000

LOCKOUT, 1200

$

$

Not available

9

Toro 37-7990

COMP SPRING

$

$

Not available

10

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

11

Toro 38-8310

KEY

$9.49

$

In Stock, only 1 left!

0

12

Toro 73-1700

1200 P CONTROL HANDLE L

$

$

Not available

13

Toro 37-8010

SWITCH BAR, 1200 PC

$

$

Not available

14

Toro 56-6520

UPPER TUBE, S-120

$

$

Not available

15

Toro 37-6320

Bolt-Carriage

$

$

Not available

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 64-9040

MIDDLE HANDLE, 1200

$

$

Not available

18

Toro 56-6540

LOWER TUBE, LH, S-120

$

$

Not available

Toro 64-8570

LOWER TUBE, RH, S-120

$64.99

$

Usually ships in 3-6 days

0

19

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

20

Toro 64-7010

Decal-Danger

$

$

Not available

21

Toro 64-9060

Decal-U.L.
(Superseded to 64-9061)

$

$

Not available

Toro 73-1770

Loose Parts (Incl. Ref. #11, 15, 16)

$

$

Not available

Toro 64-8910

1200PC-TUBE BUSHING

$

$

Not available
