38005 (1200) - Lawn-Boy 12" Power Curve Snow Thrower (SN: 004900001 - 004999999) (1994) HOUSING & ROTOR ASSEMBLY Parts Diagram

12" Power Curve Snow Thrower

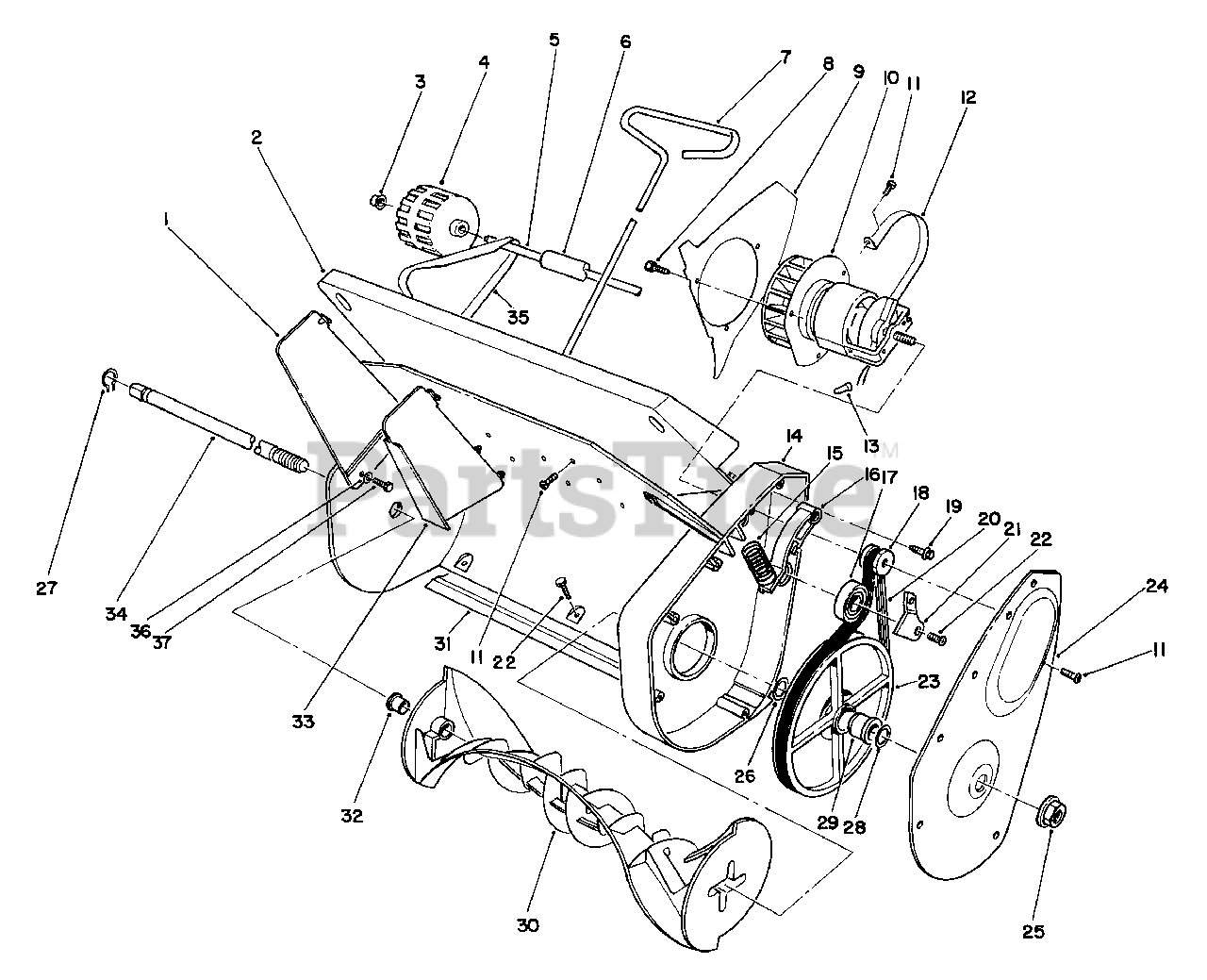

HOUSING & ROTOR ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 64-9070

Vane-Outer

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 64-9150

Mount-Vane
(Superseded to 94-5826)

$38.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32112-1

Nut-Push On

$6.49

$

Usually ships in 3-6 days

0

$

$

Not available

5

Lawn-Boy 37-6461

Shaft-Axle

$

$

Not available

6

Lawn-Boy 73-0252

Sleeve-Axle

$7.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 61-8771

Rod-Vane Adjustment

$42.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 32144-30

Screw-Self Tapping

$2.49

$

Usually ships in 3-6 days

0

9

Lawn-Boy 61-8720

Baffle-Air

$15.99

$

Usually ships in 3-6 days

0

10

$

$

Not available

11

Lawn-Boy 32104-121

Screw-Self Tap. Pan Hd.
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 61-8870

Mount-Motor

$7.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 218-511

Connector-Wire

$

$

Not available

14

$

$

Not available

15

Lawn-Boy 61-8880

Spring-Compression Idler

$12.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 73-5740

Arm-Idler

$14.99

$

In Stock, only 2 left!

0

17

Lawn-Boy 61-8780

Bearing-Ball
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 17

0

18

Lawn-Boy 61-8841

Pulley Drive

$

$

Not available

19

Lawn-Boy 32144-87

Screw-Hex. Washer Hd.

$1.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 61-8800

Belt-Drive

$46.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 73-5750

Retainer-Idler Pulley

$

$

Not available

22

Lawn-Boy 32104-130

Screw-Self Tap. Pan Hd.

$1.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 73-4990

Pulley-Driven

$29.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 73-4980

Cover-Belt Case
(Superseded to 73-4980-03)

$

$

Not available

25

Lawn-Boy 32128-25

Nut-Flange Lock

$3.49

$

In Stock, Qty 12

0

26

Lawn-Boy 37-8080

Washer-Thrust

$6.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 32151-61

Ring-Retaining

$2.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 39-5190

Washer-Thrust

$

$

Not available

29

Lawn-Boy 73-3250

Bushing-Rotor

$10.99

$

Usually ships in 3-6 days

0

30

$

$

Not available

31

$35.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 64-9120

Bushing-Rotor

$

$

Not available

33

Lawn-Boy 64-9080

Vane-Center

$

$

Not available

34

Lawn-Boy 73-4960

Shaft-Rotor

$86.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 64-8871

Bracket-Wheel R.H.

$21.99

$

Usually ships in 3-6 days

0

Lawn-Boy 64-8881

Bracket-Wheel L.H.

Note: Not Illustrated

$21.99

$

Usually ships in 3-6 days

0

36

$1.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 32104-118

Screw-Self Tapping

$

$

Not available
