38000 (S-120) - Toro Snow Thrower (SN: 009000001 - 009999999) (1979) HANDLE ASSEMBLY Parts Diagram

Snow Thrower

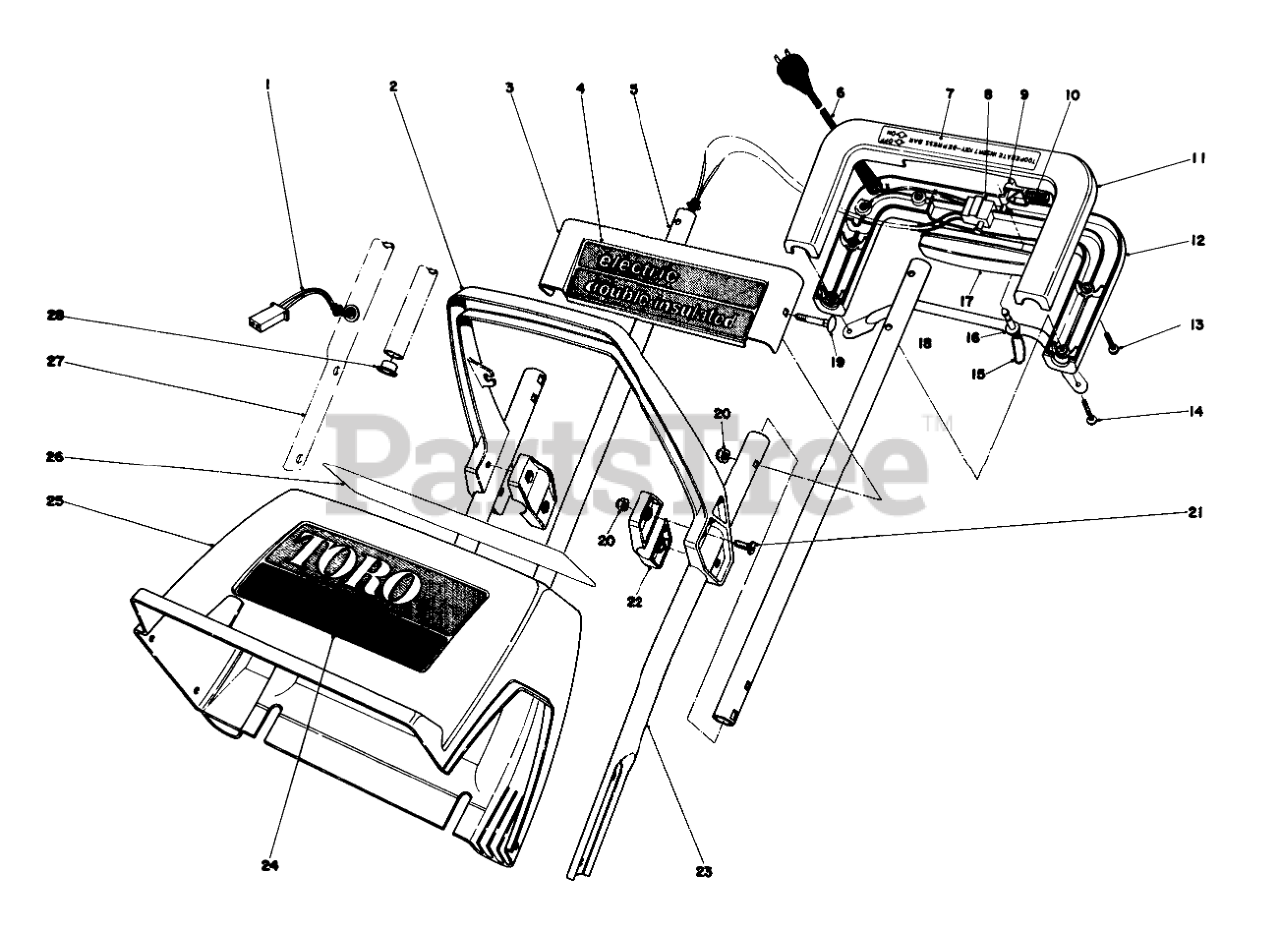

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 37-6450

Wire Harness

$

$

Not available

2

Toro 37-6260

Middle Handle

$

$

Not available

3

Toro 37-6410

Escutcheon Plate
(Superseded to 37-6411)

$

$

Not available

4

Toro 37-6480

Decal-Electric

$

$

Not available

5

Toro 37-6440

Upper Tube

$

$

Not available

6

Toro 37-6240

Cord Supply
(Superseded to 42-0775)

$

$

Not available

7

Toro 38-4590

Decal-Handle

$

$

Not available

8

Toro 36-8340

SWITCH-STARTER

$29.99

$

In Stock, only 4 left!

0

9

Toro 37-8000

LOCKOUT, 1200

$

$

Not available

10

Toro 37-7990

COMP SPRING

$

$

Not available

11

Toro 37-6220

Handle-Upper Control

$

$

Not available

12

Toro 37-6230

Handle-Lower Control

$

$

Not available

13

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Toro 32104-119

Screw

$

$

Not available

15

Toro 2828-2

Key Chain

$

$

Currently unavailable

16

Toro 37-8020

Key
(Superseded to 38-8310)

$9.49

$

In Stock, only 1 left!

0

17

Toro 37-8010

SWITCH BAR, 1200 PC

$

$

Not available

18

Toro 38-7220

Switch Guard

$

$

Not available

19

Toro 37-6320

Bolt-Carriage

$

$

Not available

20

Toro 329642

Nut

$

$

Currently unavailable

21

Toro 3290-133

SCREW

$1.49

$

Usually ships in 3-6 days

0

22

Toro 37-6190

Clamp-Middle Handle

$

$

Not available

23

Toro 37-6430

Handle-Lower L.H.
(Superseded to 56-6540)

$

$

Not available

24

Toro 37-6470

Decal-Toro S-120

$

$

Not available

25

Toro 37-6210

Shroud S-120

$

$

Not available

26

Toro 38-5800

Decal-U.L

$

$

Not available

27

Toro 37-6420

Handle Lower R.H.
(Superseded to 56-6530)

$

$

Not available

28

Toro 237-120

Snap Bushing

$

$

Not available

Toro 37-6250

Cord (optional)

Note: Not illustrated

$

$

Currently unavailable
