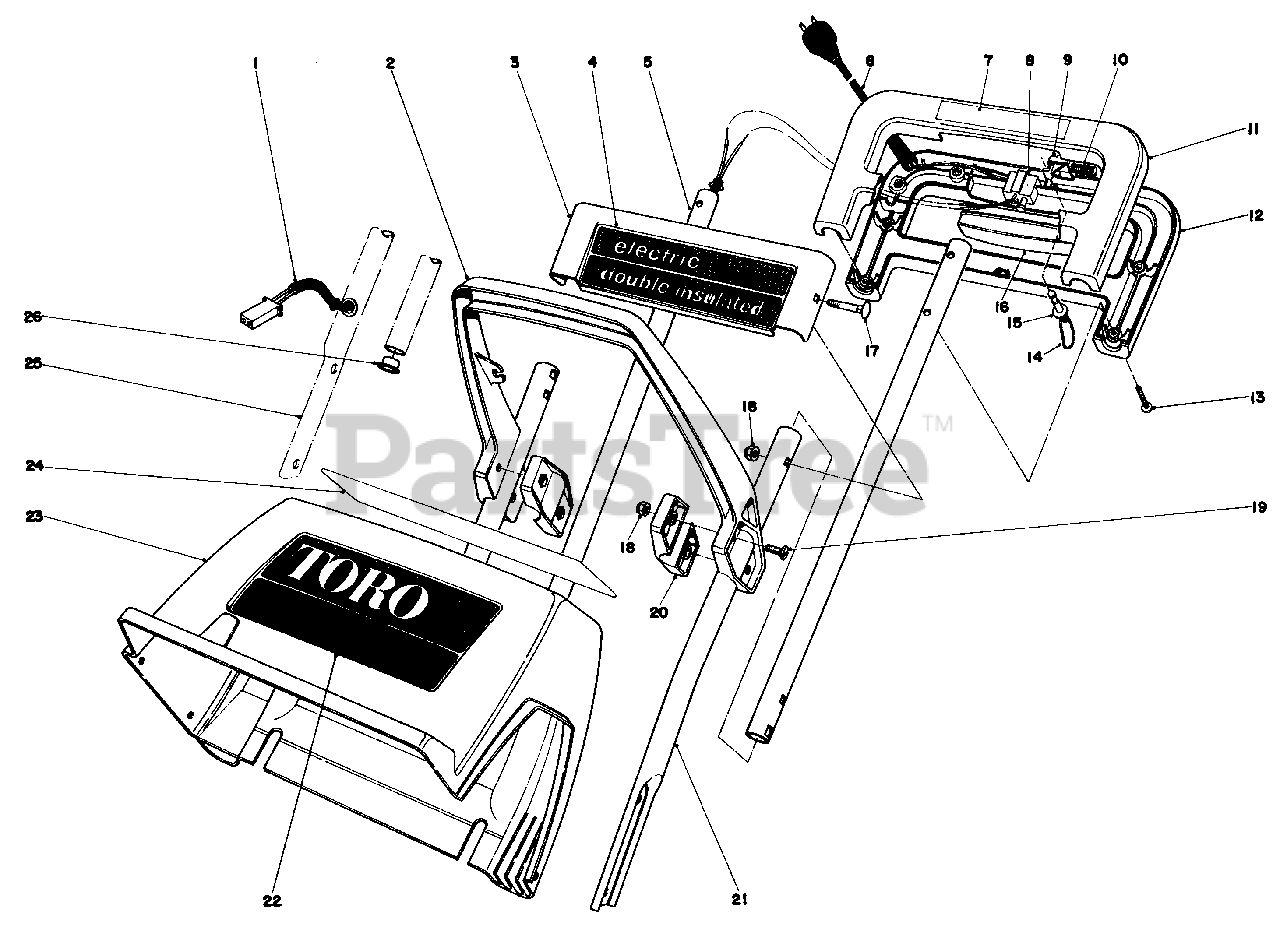

38000 (S-120) - Lawn-Boy 12" Snow Thrower (SN: 001000001 - 001006870) (1981) HANDLE ASSEMBLY Parts Diagram

12" Snow Thrower

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 37-6450

Wire Harness

$

$

Not available

2

Lawn-Boy 37-6260

Middle Handle

$

$

Not available

3

Lawn-Boy 37-6410

Escutcheon Plate
(Superseded to 37-6411)

$

$

Not available

4

Lawn-Boy 37-6480

Decal-Electric

$

$

Not available

5

Lawn-Boy 37-6440

Upper Tube

$

$

Not available

6

Lawn-Boy 38-8390

Cord Supply
(Superseded to 42-0775)

$

$

Not available

7

Lawn-Boy 38-4590

Decal-Handle

$

$

Not available

8

Lawn-Boy 36-8340

Switch

$29.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 37-8000

Lockout-Switch

$

$

Not available

10

Lawn-Boy 37-7990

Spring Compression

$

$

Not available

11

Lawn-Boy 39-2460

Handle-Upper Control

$

$

Not available

12

Lawn-Boy 39-2470

Handle-Lower Control

$

$

Not available

13

Lawn-Boy 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

14

Key Chain

$

$

Not available

15

Lawn-Boy 37-8020

Key
(Superseded to 38-8310)

$9.49

$

In Stock, only 1 left!

0

16

Lawn-Boy 37-8010

Switch Bar

$

$

Not available

17

Lawn-Boy 37-6320

Carriage Bolt

$

$

Not available

18

Lawn-Boy 3296-42

Nut

$0.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 3290-133

Screw-Round Head

$1.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 37-6190

Clamp-Middle Handle

$

$

Not available

21

Lawn-Boy 37-6430

Handle-Lower L.H.
(Superseded to 56-6540)

$

$

Not available

22

Lawn-Boy 37-6470

Decal-Toro S-120

$

$

Not available

23

Lawn-Boy 37-6210

Shroud-S-120

$

$

Not available

24

Lawn-Boy 38-5800

Decal-U.L.

$

$

Not available

25

Lawn-Boy 37-6420

Handle-Lower R.H.
(Superseded to 56-6530)

$

$

Not available

26

Lawn-Boy 237-120

Snap Bushing

$

$

Not available

Lawn-Boy 37-5950

100' Deluxe Extension Cord

Note: Not Illustrated

$

$

Currently unavailable
