38000 C (S-120) - Toro Snow Thrower (SN: 009000001 - 009999999) (1989) LOWER MAIN FRAME ASSEMBLY Parts Diagram

Snow Thrower

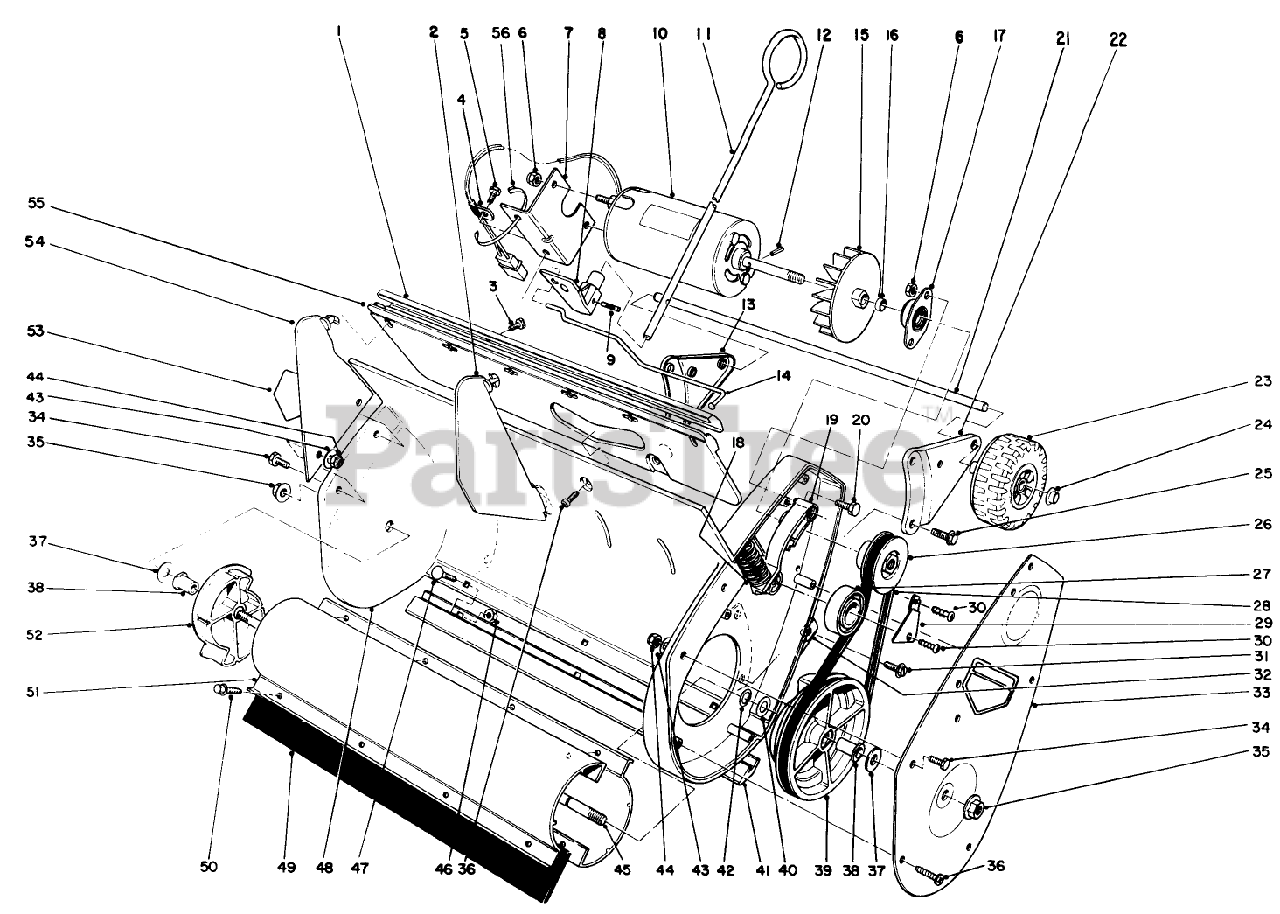

LOWER MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 37-6340

MOULDING

$

$

Not available

2

Toro 61-8830

INNER VANE

$

$

Not available

3

Toro 32104-77

10-16 X 3/8 THDG SCREW

$

$

Not available

4

Toro 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0

5

Toro 32104-124

Screw

$

$

Not available

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 37-6380

MOUNTING BRKT B

$

$

Not available

8

Toro 39-3130

VANE ADJ BRKT

$

$

Not available

9

Toro 3284-4

GROOVE PIN

$

$

Not available

10

Toro 42-1430

Motor

$

$

Not available

11

Toro 39-3140

VANE ADJ ROD

$

$

Not available

12

Toro 32121-101

SPRING PIN

$

$

Not available

13

Toro 64-8870

Wheel Bracket R.H.

$

$

Currently unavailable

14

Toro 37-5970

Linkage Vane Adjustment

$

$

Not available

15

Toro 37-6120

Fan

$

$

Not available

16

Toro 52-1760

SPACER

$

$

Not available

17

Toro 52-9910

FLANGED BEARING ASM.

$

$

Not available

18

Toro 39-2190

IDLER COMP. SPRING

$

$

Not available

19

Toro 39-2170

IDLER ARM

$

$

Not available

20

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

21

Toro 37-6460

AXLE SHAFT

$16.99

$

Usually ships in 3-6 days

0

22

Toro 64-8880

Wheel Bracket L.H.

$

$

Currently unavailable

23

Toro 37-5960

S-120 WHEEL

$

$

Not available

24

Toro 32112-1

PUSHNUT-CAP, WASHER

$6.49

$

Usually ships in 3-6 days

0

25

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

26

Toro 37-6040

DRIVE PULLEY

$

$

Not available

27

Toro 36-7420

BEARING-BALL

$21.99

$

Usually ships in 3-6 days

0

28

Toro 37-6010

BELT

$41.99

$

Usually ships in 3-6 days

0

29

Toro 39-2180

IDLER PULLEY RETAINER

$

$

Not available

30

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

31

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 20+

0

32

Toro 3290-171

NUT-TYPE J

$6.49

$

In Stock, only 3 left!

0

33

Toro 56-6511

Cover-Belt Case

$

$

Currently unavailable

34

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

35

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

36

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

37

Toro 39-5190

THRUST WASHER (THICK)

$

$

Not available

38

Toro 37-6070

BUSHING ROTOR

$

$

Not available

39

Toro 37-6050

Pulley-Driven

$

$

Not available

40

Toro 37-8080

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

41

Toro 37-6150

Scraper
(Superseded to 38-8720)

$

$

Not available

42

Toro 32120-46

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

43

Toro 38-5710

Washer
(Superseded to 3256-49)

$0.99

$

In Stock, Qty 8

0

44

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

45

Toro 37-6330

ROTOR SHAFT

$59.99

$

Usually ships in 3-6 days

0

46

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

47

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

48

Toro 42-3900

HOUSING, S-120 HID

$377.99

$

Usually ships in 3-6 days

0

49

Toro 37-6391

ROTOR BLADE, S-120 CR

$

$

Not available

50

Toro 32144-64

TSCREW-HWH

$7.99

$

Usually ships in 3-6 days

0

51

Toro 37-6371

ROTOR, S-120 COST REDUC

$

$

Not available

52

Toro 37-6060

END CAP ROTOR

$

$

Not available

53

Toro 56-6270

DECAL-DANGER

$

$

Not available

54

Toro 61-8810

OUTER VANE

$

$

Not available

55

Toro 37-6270

Vane Mount

$

$

Not available

56

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
