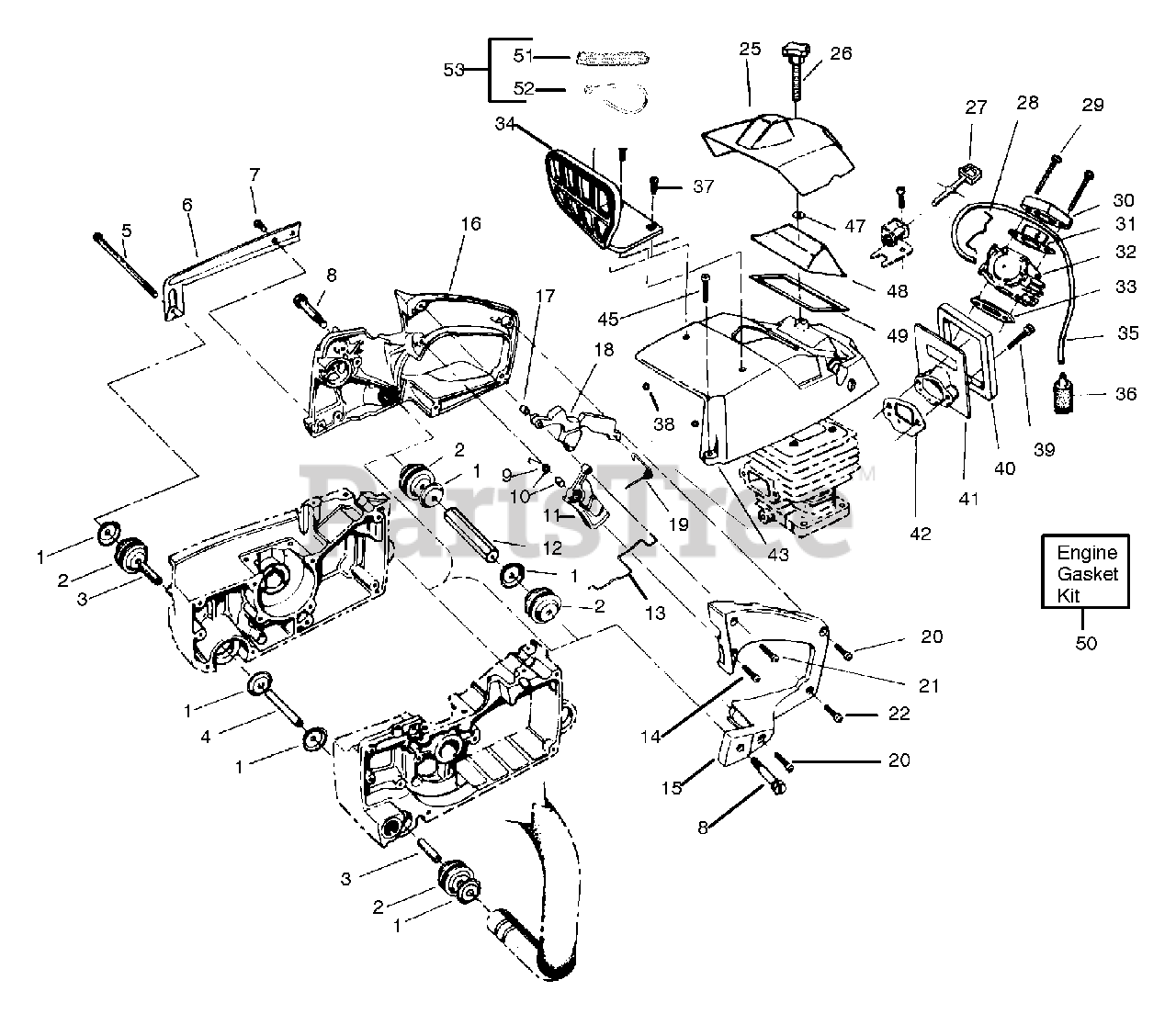

3800 - Poulan Chainsaw External Power Unit Parts Diagram

Chainsaw

External Power Unit Parts Diagram

  • Title

1

Poulan 530024376

Cup Isolator

$4.99

$

Usually ships in 3-10 days

0

2

Poulan 530024373

Isolator Rear Handle

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530015362

Spacer

$

$

Not available

4

Poulan 530015361

Spacer

$

$

Not available

5

Poulan 530015391

Screw

$15.99

$

Usually ships in 3-10 days

0

6

Poulan 530012056

Handle Brace

$

$

Not available

7

Poulan 530015194

Screw

$

$

Not available

8

Poulan 530015462

Shoulder Screw

$

$

Not available

9

Poulan 530025469

Trigger Spring

$

$

Not available

10

Poulan 530032059

Trigger Bushing

$

$

Not available

11

Poulan 530026013

Trigger Throttle

$

$

Not available

12

Poulan 530025258

Isolator Spacer

$

$

Not available

13

Poulan 530024699

Throttle Wire

$

$

Not available

14

Poulan 530015369

Shoulder Screw

$

$

Not available

15

Poulan 530012054

Rear Handle-Left

$

$

Not available

16

Poulan 530012055

Rear Handle-Right

$

$

Not available

17

Poulan 530032053

Bushing

$

$

Not available

18

Poulan 530024357

Throttle Lock

$

$

Not available

19

Poulan 530024378

Throttle Lock Spring

$

$

Not available

20

Poulan 530015403

Screw

$3.99

$

In Stock, only 1 left!

0

21

Poulan 530015393

Screw

$

$

Not available

22

Poulan 530015608

Screw

$3.99

$

In Stock, Qty 5

0

25

Poulan 530024976

Carburetor Cover

$

$

Not available

25

Poulan 530024845

Winter Kit Carb. Cover

$

$

Not available

26

Poulan 530024482

Carburetor Cover Knob

$7.49

$

In Stock, only 1 left!

0

27

Poulan 530025919

Choke Rod

$

$

Not available

28

Poulan 530024383

Choke Wire

$

$

Not available

29

Poulan 530015245

Screw

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530019104

Seal

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530024349

Carburetor Seal Bracket

$

$

Not available

32

Poulan 530035094

Carburetor

$

$

Not available

33

Poulan 530019099

Gasket

$

$

Not available

34

Poulan 530025948

Handguard

$

$

Not available

35

Poulan 530069216

Line Kit

$11.99

$

In Stock, Qty 20+

0

36

Poulan 530014362

Fuel Pick-Up Ass'y
(Superseded to 530095646)

Note: New part number for this ipl

$6.99

$

In Stock, Qty 20+

0

37

Poulan 530015406

Screw

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 534790500

Nut

Note: New part number for this ipl

$3.49

$

In Stock, Qty 6

0

39

Poulan 530015414

Screw

$

$

Not available

40

Poulan 530019107

Adaptor Seal

$

$

Not available

41

Poulan 530024229

Carburetor Adaptor

$

$

Not available

42

Poulan 530019101

Gasket

$

$

Not available

43

Poulan 530026015

Cylinder Shield

$

$

Not available

45

Poulan 530015168

Screw

$

$

Not available

47

Poulan 530024877

Retainer

$3.99

$

In Stock, Qty 10

0

48

Poulan 530024548

Air Filter

$

$

Not available

49

Poulan 530019123

Gasket

$

$

Not available

50

Poulan 530069190

Engine Gasket Kit

Note: (*Indicates Contents)

$

$

Not available

51

Poulan 530011746

Winter Screen

$

$

Not available

52

Poulan 530024675

Tie Strap

$2.49

$

Usually ships in 3-10 days

0

53

Poulan 952069063

Winter Kit

Note: (Incl. #51 & 52 and Winter Kit Carb.Cover)

$

$

Not available
