3800 - Poulan Chainsaw Clutch & Handle Parts Diagram

Chainsaw

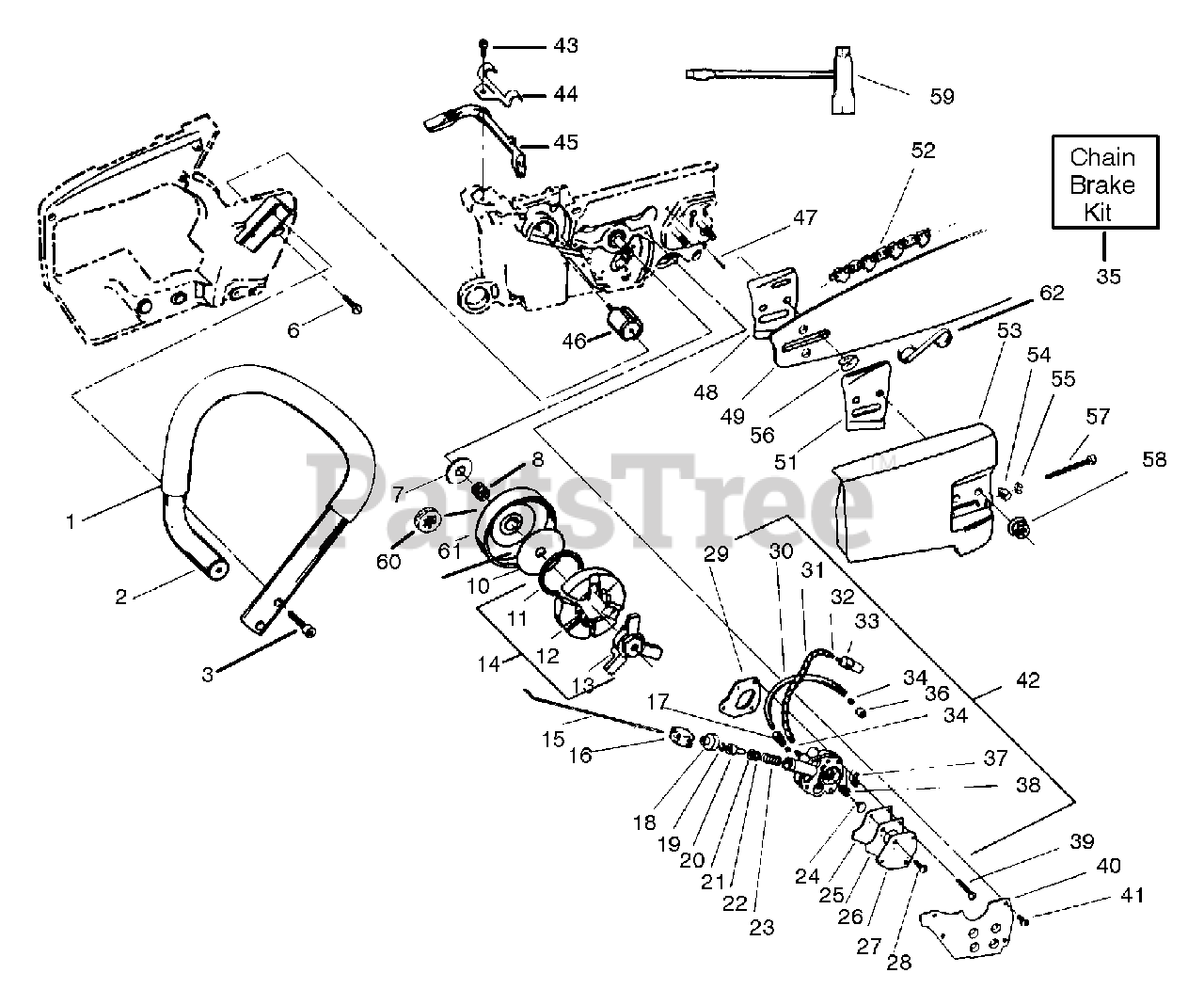

Clutch & Handle Parts Diagram

  • Title

1

Poulan 530027776

Handlebar Grip Kit

$

$

Not available

2

Poulan 530022258

Handlebar Ass'y.

Note: New part Number for this ipl

$

$

Not available

3

Poulan 530001711

Screw

$1.99

$

In Stock, only 1 left!

0

6

Poulan 530015406

Screw

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530015357

Thrust Washer

$

$

Not available

8

Poulan 530032049

Clutch Bearing

$

$

Not available

10

Poulan 530024465

Plate Clutch

$

$

Not available

11

Poulan 530024353

Clutch Spring

$

$

Not available

12

Poulan 530024352

Clutch Shoe

$

$

Not available

13

Poulan 530011625

Clutch Spider

$

$

Not available

14

Poulan 530010291

Clutch Ass'y.

Note: (Incl. #11, 12 & 13)

$

$

Not available

15

Poulan 530024347

Manual Oiler Rod

$

$

Not available

16

Poulan 530023373

Oiler Rod Boot

$

$

Not available

17

Poulan 530002615

Tubing Nut

$

$

Not available

18

Poulan 530023356

Oil Pump Cap

$

$

Not available

19

Poulan 530001611

Retainer Ring

$

$

Not available

20

Poulan 530023357

Plunger

$

$

Not available

21

Poulan 530019029

Quad Ring

$4.99

$

In Stock, Qty 5

0

22

Poulan 530015418

Washer

$3.99

$

In Stock, only 4 left!

0

23

Poulan 530023358

Spring

$

$

Not available

24

Poulan 530022197

Button & Pintle Ass'y.

$

$

Not available

25

Poulan 530024345

Diaphragm

$

$

Not available

26

Poulan 530019102

Gasket

$

$

Not available

27

Poulan 530025987

Pump Cover

$

$

Not available

28

Poulan 530015297

Screw

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 530019103

Gasket

$

$

Not available

30

Poulan 530021038

Oil Line Dis-charge (Bulk 8115)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530024677

Oil Line Protector Spring

$

$

Not available

32

Poulan 530021031

Oil Line (Bulk 8132)

$

$

Not available

32

Poulan 530010289

Oil Line Pick-Up Ass'y.

Note: (Incl. #30 & 31)

$

$

Not available

33

Poulan 530024676

Oil Line Pick-Up Weight

$

$

Not available

34

Poulan 530002464

Sleeve-1/8 Tubing

$3.99

$

In Stock, only 1 left!

0

35

Poulan 952069261

Chain Brake Kit

$27.99

$

Usually ships in 3-10 days

0

36

Poulan 530015422

Nut

$

$

Not available

37

Poulan 530024691

Oil Pump Vent Foam

$

$

Not available

38

Poulan 530023699

Diaphragm Spring

$

$

Not available

39

Poulan 530015401

Screw

$

$

Not available

40

Poulan 530024399

Oiler Cover Plate

$

$

Not available

41

Poulan 530015004

Screw

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 530069062

Oil Pump Ass'y.Kit

Note: (Incl. #17 - 28, 30 - 33, one of 34 & 36 - 38) Screw

$

$

Not available

43

Poulan 530015368

Bracket

$

$

Not available

44

Poulan 530024351

Manual Oiler Lever

$

$

Not available

45

Poulan 530024348

Side Isolator

$

$

Not available

46

Use on Guide Bar

$

$

Not available

46

Poulan 530024225

Powerhead

Note: Use on Bow Guide

$

$

Not available

46

Poulan 530024225

Powerhead Oil Vent Replace-

$

$

Not available

47

Poulan 530069185

ment Kit

$

$

Not available

48

Poulan 530025925

Guide Bar Plate

$9.99

$

In Stock, Qty 7

0

49

Poulan 952044380

Guide Bar

$35.99

$

Usually ships in 3-10 days

0

51

Poulan 530025924

Guide Bar Plate-

$

$

Not available

52

Poulan 952051266

Chain

$

$

Not available

53

Poulan 530010829

Bar Clamp Ass'y.

Note: (Incl. #54-57);

$

$

Not available

54

Poulan 530023064

Bar Adj. Pin

$8.99

$

Usually ships in 3-10 days

0

55

Poulan 530038593

"E" Ring Adj. Screw

$4.99

$

In Stock, Qty 20+

0

56

Poulan 530025414

U-Clip

$

$

Not available

57

Poulan 530015385

Screw

$6.49

$

In Stock, Qty 9

0

58

Poulan 530015445

Nut
(Superseded to 530015251)

$6.49

$

In Stock, only 1 left!

0

59

Poulan 530031146

Scrench
(Superseded to 545006011)

$

$

Not available

60

Poulan 952004746

Floating Rim

$4.99

$

Usually ships in 3-10 days

0

61

Poulan 530048069

Drum & Sprocket Ass'y.

$

$

Not available

61

Poulan 952048062

Drum for Sprocket
(Superseded to 952048091)

$

$

Not available

62

Poulan 530055044

"S" Clip

$

$

Not available

62

Poulan 530027832

Replacement Bar & Chain Decal (Not a serviceable part)

Note: Not Shown

$

$

Not available
