3800 - Poulan Chainsaw Carburetor Assembly (P/N 530035094) Parts Diagram

Chainsaw

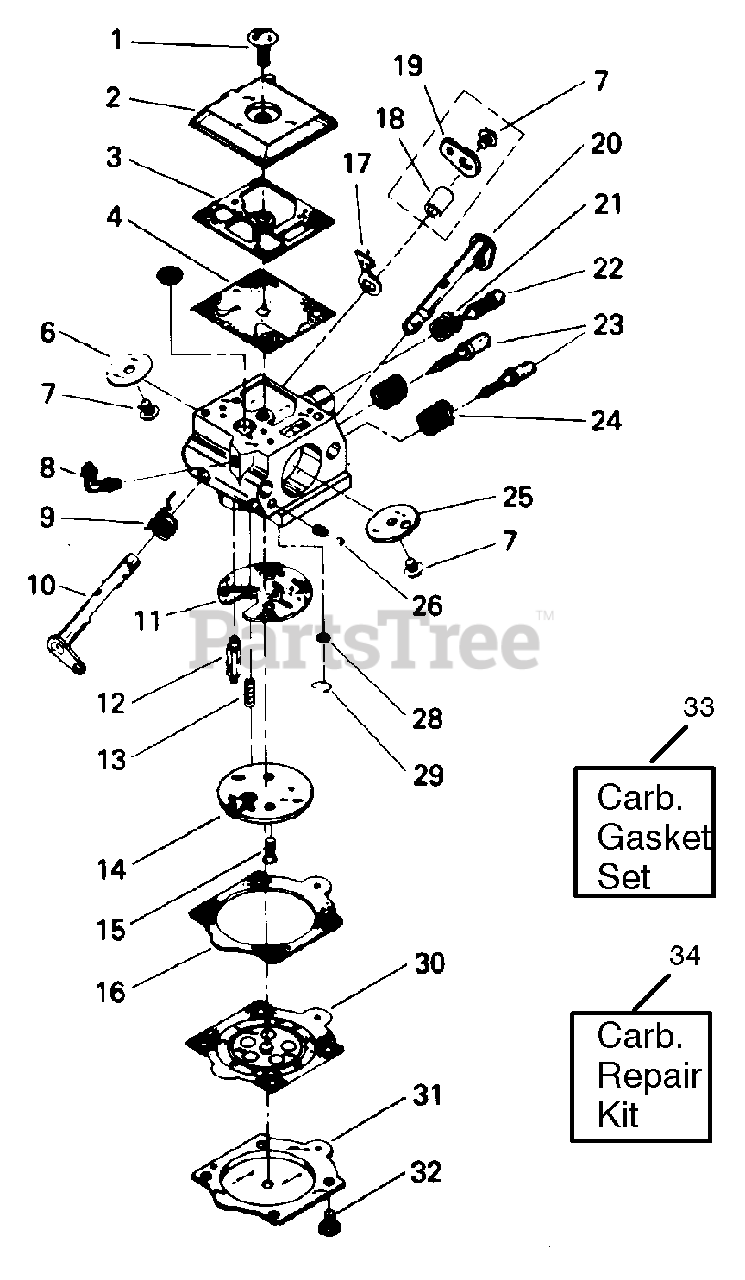

Carburetor Assembly (P/N 530035094) Parts Diagram

  • Title

1

Poulan 530035115

Pump Cover Screw

$

$

Not available

2

Poulan 530035099

Fuel Pump Cover

$

$

Not available

3

Poulan 530035165

Fuel Pump Gasket

$

$

Not available

4

Poulan 530035113

Fuel Diaphragm

$

$

Not available

6

Poulan 530035102

Throttle Valve

$

$

Not available

7

Poulan 530035015

Valve Screw

$

$

Not available

8

Poulan 530035123

Fitting-Inlet(Elbow)

$

$

Not available

9

Poulan 530035119

Throttle Ret. Spring

$

$

Not available

10

Poulan 530035101

Throttle Shaft Ass'y.

$

$

Not available

11

Poulan 530035111

Circuit Gasket

$4.99

$

Usually ships in 3-10 days

0

12

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

13

Poulan 530035118

Metering Lever Spring

$

$

Not available

14

Poulan 530035126

Circuit Plate Ass'y.

$

$

Not available

15

Poulan 530035116

Circuit Plate Ass'y.

$

$

Not available

16

Poulan 530035108

Mtrg. Diaphragm Gasket

$

$

Not available

17

Poulan 530035105

Throttle Stop

$

$

Not available

18

Poulan 530035125

Throttle Lever Bushing

$

$

Not available

19

Poulan 530035097

Throttle Lever (Outer)

$

$

Not available

20

Poulan 530035103

Choke Shaft Ass'y.

$

$

Not available

21

Poulan 530035121

Idle Screw Spring

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530035117

Idle Adj. Screw

$

$

Not available

23

Poulan 530035122

Hi & Lo Needle

$

$

Not available

24

Poulan 530035023

Spring-Needle Fuel Mix
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

25

Poulan 530035104

Choke Valve

$

$

Not available

26

Poulan 530035107

Choke Friction Ball

$

$

Not available

28

Poulan 530035124

Check Valve Screen

$

$

Not available

29

Poulan 530035096

Screen Retaining Ring

$

$

Not available

30

Poulan 530035114

Diaph. Mtrg. Ass'y.

$11.99

$

Usually ships in 3-10 days

0

31

Poulan 530035098

Mtrg. Diaphragm Cover

$

$

Not available

32

Poulan 530035021

Mtrg. Cover Screw Ass'y.

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530035112

Carb. Gasket Kit

Note: (Incl. #3 & 16)

$

$

Not available

34

Poulan 530035127

Carb. Kwik Repair Kit

Note: (*Indicates Contents)

$44.99

$

Usually ships in 3-10 days

0
