380 (190-380-100) - Cub Cadet Sleeve Hitch att Sleeve Hitch Parts Diagram

Sleeve Hitch

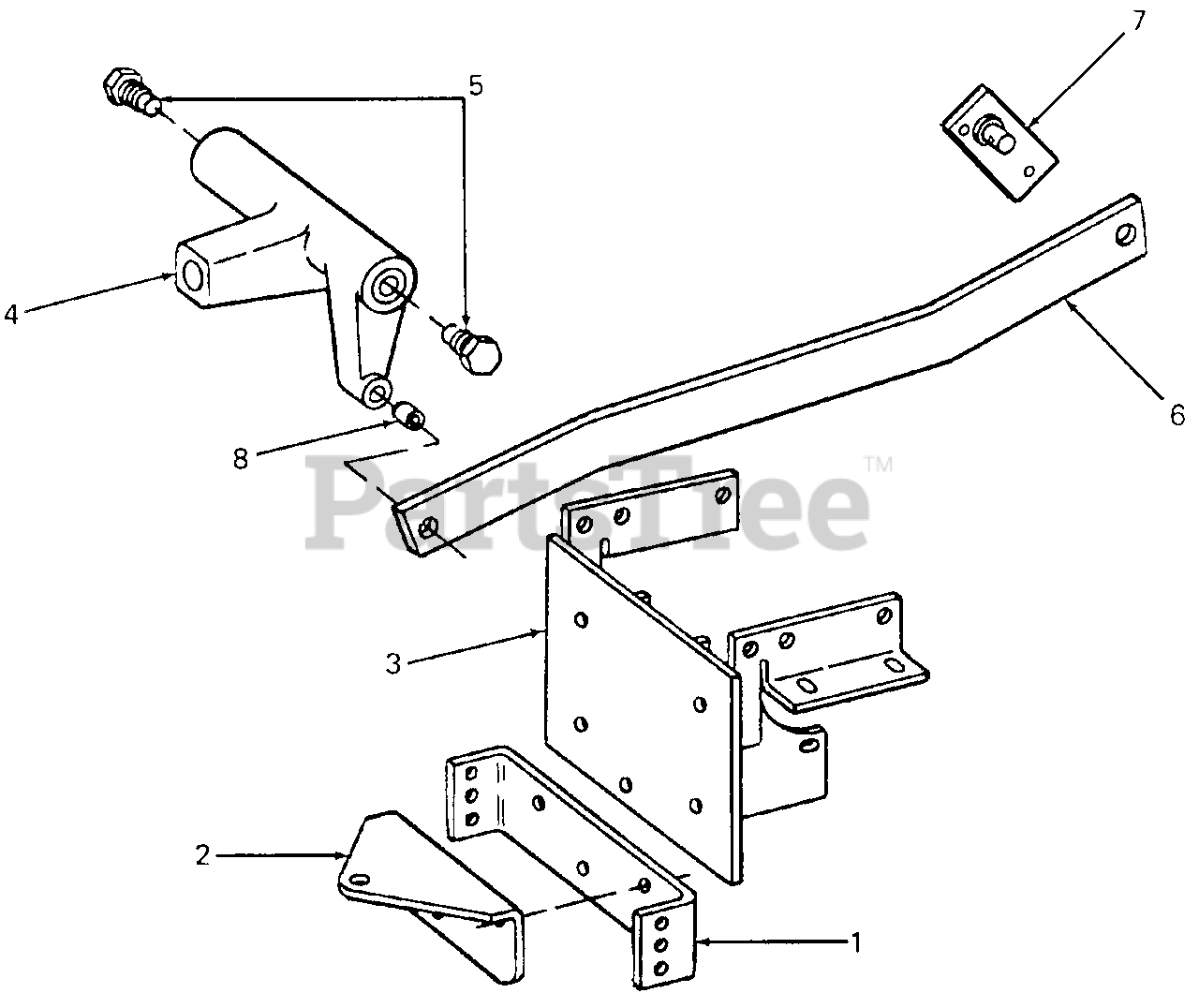

Sleeve Hitch Parts Diagram

  • Title

1

Cub Cadet 703-0400

Link, Lower Hitch
(Superseded to 703-0400-0498)

Variations

Cub Cadet 703-0400-0498

LINK-HITCH-LWR - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 703-0401

Drawbar, Fixed

$

$

Not available

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 703-0402

Bracket Assy, Hitch

$

$

Currently unavailable

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 710-3064

Screw, Hex Patch, 5/16-18 X 1.25 Lg GR8

$

$

Currently unavailable

Cub Cadet 710-3063

Screw, Hex Cap, 3/8-16 X .75 Lg GR8
(Superseded to 710-3119)

$6.99

$

In Stock, only 1 left!

0

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 719-3024

Lever, Lift

$

$

Not available

5

Cub Cadet 738-3021

Bolt, Stub Shaft

$

$

Not available

Cub Cadet 712-3037

Nut, Hex Jam, 7/8-14

$

$

Currently unavailable

6

Cub Cadet 703-0397

Bar, Lift

$

$

Not available

Cub Cadet 736-3048

Washer, Flat, .531 X .750 X .054 Thk

$

$

Currently unavailable

Cub Cadet 736-3013

Washer, Flat, .531 X .750 X .027 Thk

$4.49

$

In Stock, only 3 left!

0

Cub Cadet 710-3062

Screw, Hex Cap, 1/2-13 X 1.38 Lg GR8

$

$

Currently unavailable

7

Cub Cadet 703-0398

Plate Assy, Lift Bar

$

$

Not available

Cub Cadet 710-3063

Screw, Hex Cap, 3/8-16 X .75 Lg GR8
(Superseded to 710-3119)

$6.99

$

In Stock, only 1 left!

0

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-3073

Spacer, Lift Arm

$

$

Not available
