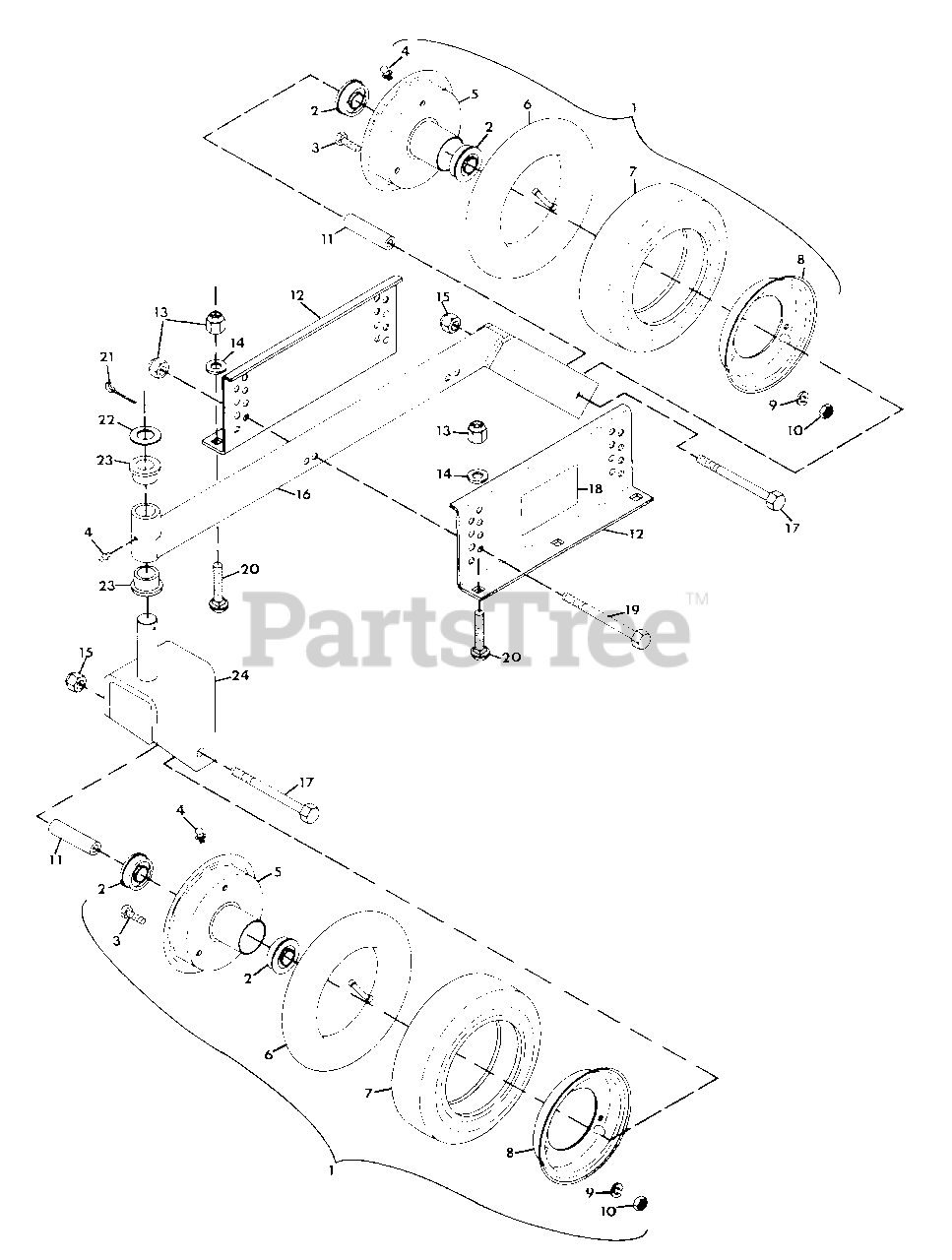

37999 - Gravely 60" Deck for 4-Wheel Tractor GAUGE WHEELS AND HEIGHT ADJUSTMENT Parts Diagram

60" Deck for 4-Wheel Tractor

GAUGE WHEELS AND HEIGHT ADJUSTMENT Parts Diagram

  • Title
1

Gravely 037797

WHEEL, GAUGE
(Superseded to 20636900)

$

$

Not available

2

Gravely 037823

BEARING, GAUGE WHEEL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

3

Gravely 181635

BOLT, HEX 3/8-24X.75
(Superseded to 05962600)

$

$

Not available

4

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

5

Gravely 037825

WHEEL, HALF WITH TUBE
(Superseded to 20637900)

$

$

Not available

6

Gravely 037826

TUBE, INNER
(Superseded to 20638000)

$43.99

$

In Stock, only 2 left!

0

7

Gravely 037827

TIRE, GAUGE WHEEL
(Superseded to 20638100)

$

$

Not available

8

Gravely 037824

WHEEL, HALF PLAIN
(Superseded to 20637800)

$

$

Not available

9

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

10

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

11

Gravely 011950

BUSHING, WHEEL
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 038281

ASSEMBLY, HANGER 60" MOWER
(Superseded to 21242353)

$

$

Not available

13

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

16

Gravely 035769

WELDMENT, CASTER WHEEL SUPPORT
(Superseded to 20628800)

$

$

Not available

17

Gravely 433163

BOLT, HEX 1/2-13X5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

19

Gravely 180134

BOLT, HEX 3/8-16X2.50
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

21

Gravely 137253

PIN, COTTER .187X1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

24

Gravely 037811

WELDMENT, CASTER FORK
(Superseded to 21244500)

$

$

Not available
