37896 - Gravely 40" Deck for Commercial 2-Wheel Tractor MOWER DECK Parts Diagram

40" Deck for Commercial 2-Wheel Tractor

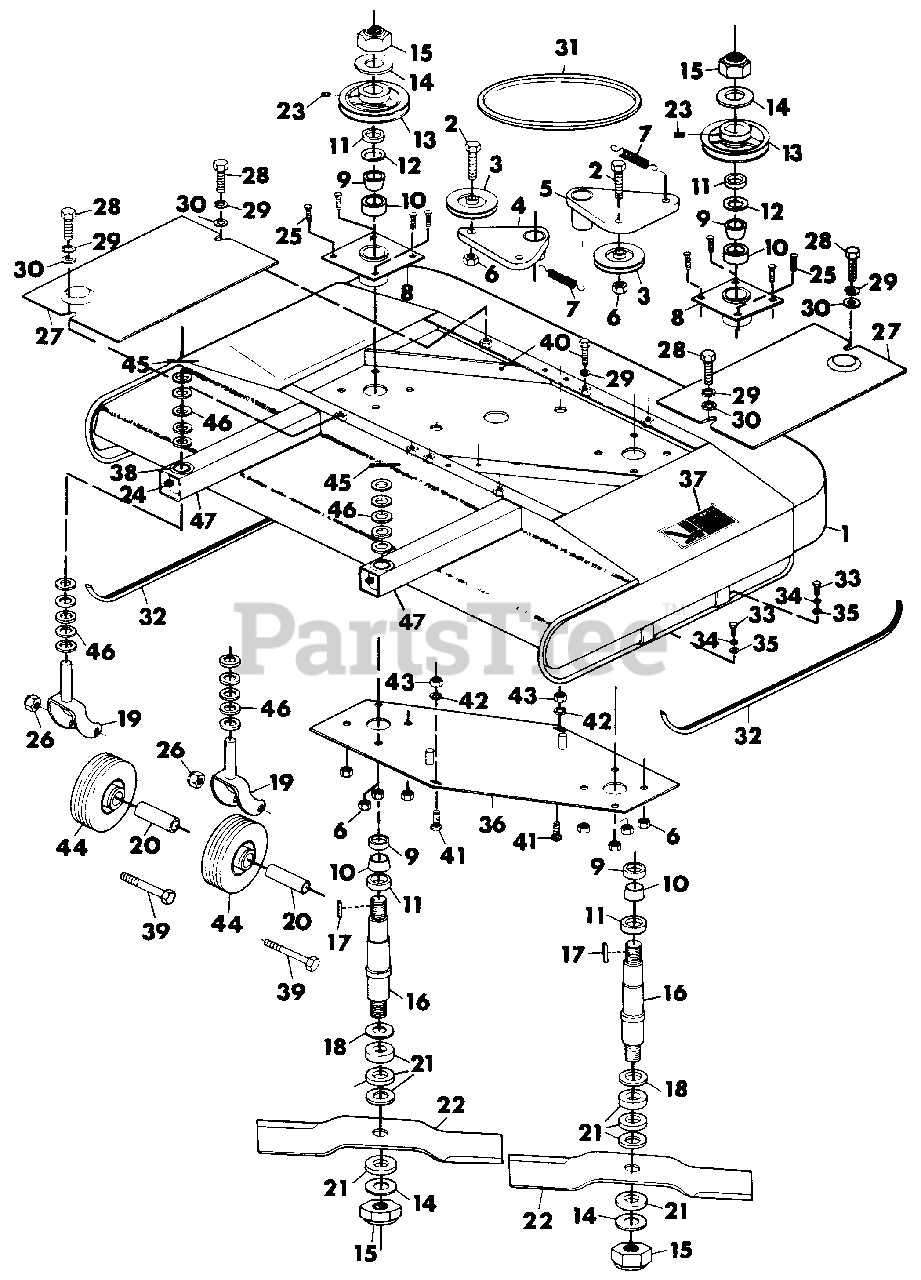

MOWER DECK Parts Diagram

  • Title
1

Gravely 038166

DK,40"COMM.MOWER

$

$

Not available

2

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

3

Gravely 009231

IDLER
(Superseded to 20034800)

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 011379

WLDMT,ARM IDLER PIVOT
(Superseded to 20074100)

$116.99

$

Usually ships in 4-12 days

0

5

Gravely 011382

WLDMT, ARM IDLER PIVOT
(Superseded to 20074200)

$142.99

$

Usually ships in 4-12 days

0

6

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 011263

SG-TENS .095X.500X5.5 WLD60 YZ
(Superseded to 08353300)

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 009200

HSG,SPNDL BRG WLDMT
(Superseded to 21366100)

$

$

Not available

9

Gravely 009246

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

10

Gravely 009245

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

11

Gravely 009206

SEAL, OIL
(Superseded to 05602400)

$15.99

$

Usually ships in 4-12 days

0

12

Gravely 009204

RING, SEAL
(Superseded to 21328300)

$

$

Not available

13

Gravely 009207

PULLEY, ROTOR
(Superseded to 07319800)

$129.99

$

Usually ships in 4-12 days

0

14

Gravely 131001

WSHR-FL-STL .969X2.250X.165
(Superseded to 06429700)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 017313

NUT-LK .875-9 HT
(Superseded to 06525600)

$9.49

$

Usually ships in 4-12 days

0

16

Gravely 009203

SHAFT, ROTOR
(Superseded to 21328200)

$343.99

$

Usually ships in 4-12 days

0

17

Gravely 009213

KEY, SQUARE .25X1
(Superseded to 00966045)

$2.99

$

In Stock, only 2 left!

0

18

Gravely 009205

SHIELD, DUST
(Superseded to 20034300)

$16.99

$

Usually ships in 4-12 days

0

19

Gravely 011385

WLDMT, CASTER FORK
(Superseded to 08585053)

$120.99

$

In Stock, only 2 left!

0

20

Gravely 011387

BUSH.,S.516X.745X2.59 ST
(Superseded to 08585100)

$23.99

$

Usually ships in 4-12 days

0

21

Gravely 009209

CLR,BLADE SPACER 1/4
(Superseded to 20034400)

Note: (.25 INCH)

$

$

Not available

22

Gravely 009212

BLADE, MOWER
(Superseded to 20034700)

$

$

Not available

23

Gravely 102581

SCR-SET .31-18X.38 SKHCUPDL
(Superseded to 06005500)

$2.99

$

In Stock, Qty 15

0

24

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

25

Gravely 120915

BLT-RDHDSHSQNK.38-16X1.0 G5YZ

$

$

Not available

26

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

27

Gravely 011384

CVR,BELT
(Superseded to 20074300)

$

$

Not available

28

Gravely 428638

BLT-HEX .38-16X.625
(Superseded to 05940100)

$

$

Not available

29

Gravely 120382

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 009240

BELT,V 1/2 X 5/16 X 37.5
(Superseded to 20035300)

$31.99

$

Usually ships in 4-12 days

0

32

Gravely 009223

SKID
(Superseded to 08573800)

$

$

Not available

33

Gravely 181596

BLT-HEX .31-24X.875 YW ZC
(Superseded to 05936900)

$3.49

$

Usually ships in 4-12 days

0

34

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 011376

SPRT,DECK WELDMENT
(Superseded to 20074000)

$

$

Not available

37

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

38

Gravely 011375

BSHG-SLV .752X.877X.75 BRONZE
(Superseded to 05518500)

$7.49

$

Usually ships in 4-12 days

0

39

Gravely 180193

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

40

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 120897

BLT-RDHDSQNK .50-13X3.00 G5YZ
(Superseded to 06224900)

$5.99

$

In Stock, Qty 19

0

42

Gravely 120384

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

43

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

44

Gravely 011386

WHL-CASTER
(Superseded to 07132800)

$79.99

$

Usually ships in 4-12 days

0

45

Gravely 137204

PIN-CTR .12X1.50 EXTPRSQCT YZ
(Superseded to 06714300)

$1.99

$

Usually ships in 4-12 days

0

46

Gravely 131017

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 044661

SPRT,GAUGE WHEEL
(Superseded to 20811000)

$

$

Not available
