37837 - Gravely Pro-Master Zero-Turn Mower, 16hp Kohler (SN: 000101 & Above) STEERING Parts Diagram

Pro-Master Zero-Turn Mower, 16hp Kohler

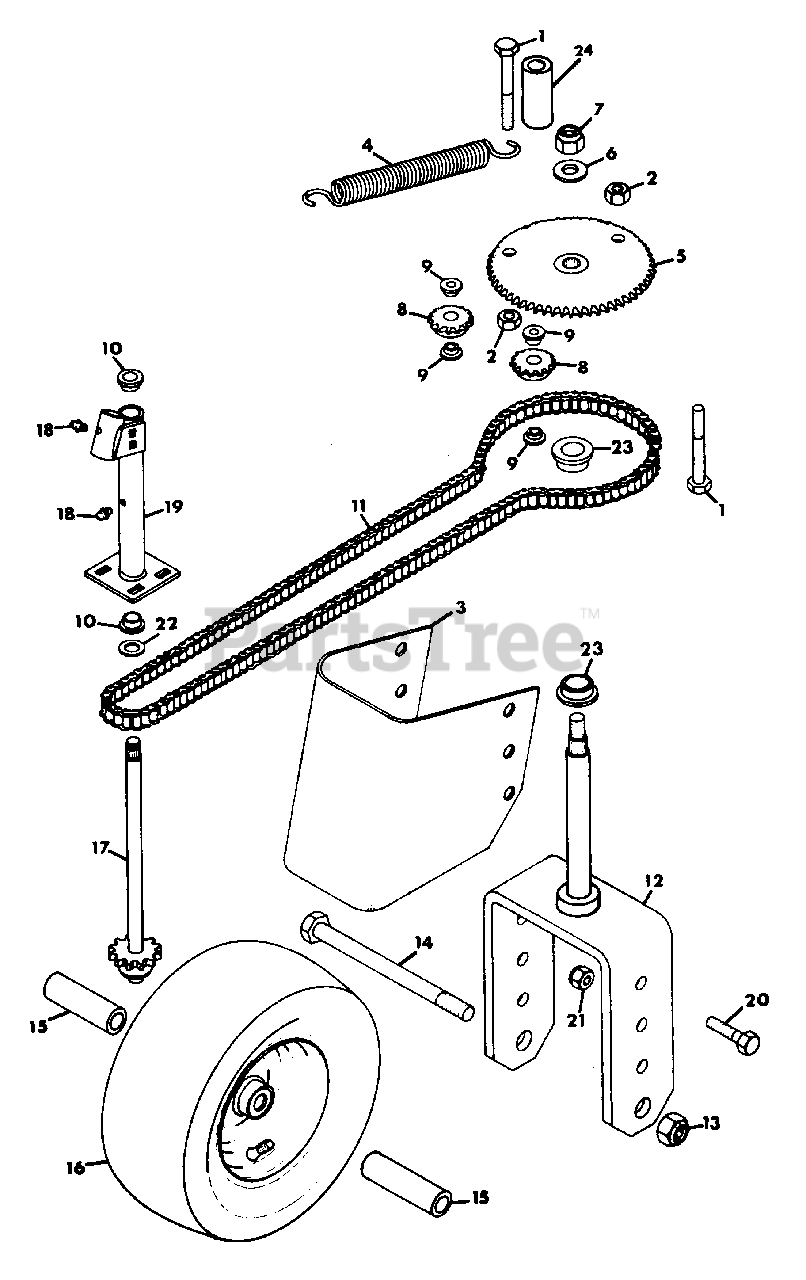

STEERING Parts Diagram

  • Title
1

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 120378

NUT, HEX 1/2-14
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 034902

SHIELD, GRASS
(Superseded to 20613600)

$

$

Not available

4

Gravely 031689

SPRING
(Superseded to 08330800)

$

$

Not available

5

Gravely 034559

SPROCKET, 57-T #40

$

$

Not available

6

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 034487

SPROCKET, DRIVE
(Superseded to 08907500)

$

$

Not available

9

Gravely 021504

BUSHING
(Superseded to 05519600)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 022098

BEARING, FLANGED
(Superseded to 05422400)

$14.99

$

Usually ships in 4-12 days

0

11

Gravely 034489

CHAIN, #40
(Superseded to 00920900)

$

$

Not available

12

Gravely 034546

WELDMENT, WHEEL FORK
(Superseded to 21230100)

$

$

Not available

13

Gravely 456008

NUT, LOCK 3/4
(Superseded to 21305000)

$

$

Not available

14

Gravely 034452

AXLE
(Superseded to 21228600)

$

$

Not available

15

Gravely 034472

SPACER, WHEEL
(Superseded to 21228900)

$

$

Not available

16

Gravely 034962

ASSEMBLY, WHEEL & TIRE 16X7.50-8
(Superseded to 20615300)

$

$

Not available

17

Gravely 034510

SHAFT, STEERING
(Superseded to 21229300)

$

$

Not available

18

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

19

Gravely 034515

TUBE, STEERING
(Superseded to 08908200)

$

$

Not available

20

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

21

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

22

Gravely 017959

BEARING, THRUST RACE
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

23

Gravely 035170

BEARING, FLANGED 24
(Superseded to 05525500)

$

$

Not available

24

Gravely 031367

SPACER, .850X.546X2.18
(Superseded to 08827800)

$

$

Not available
