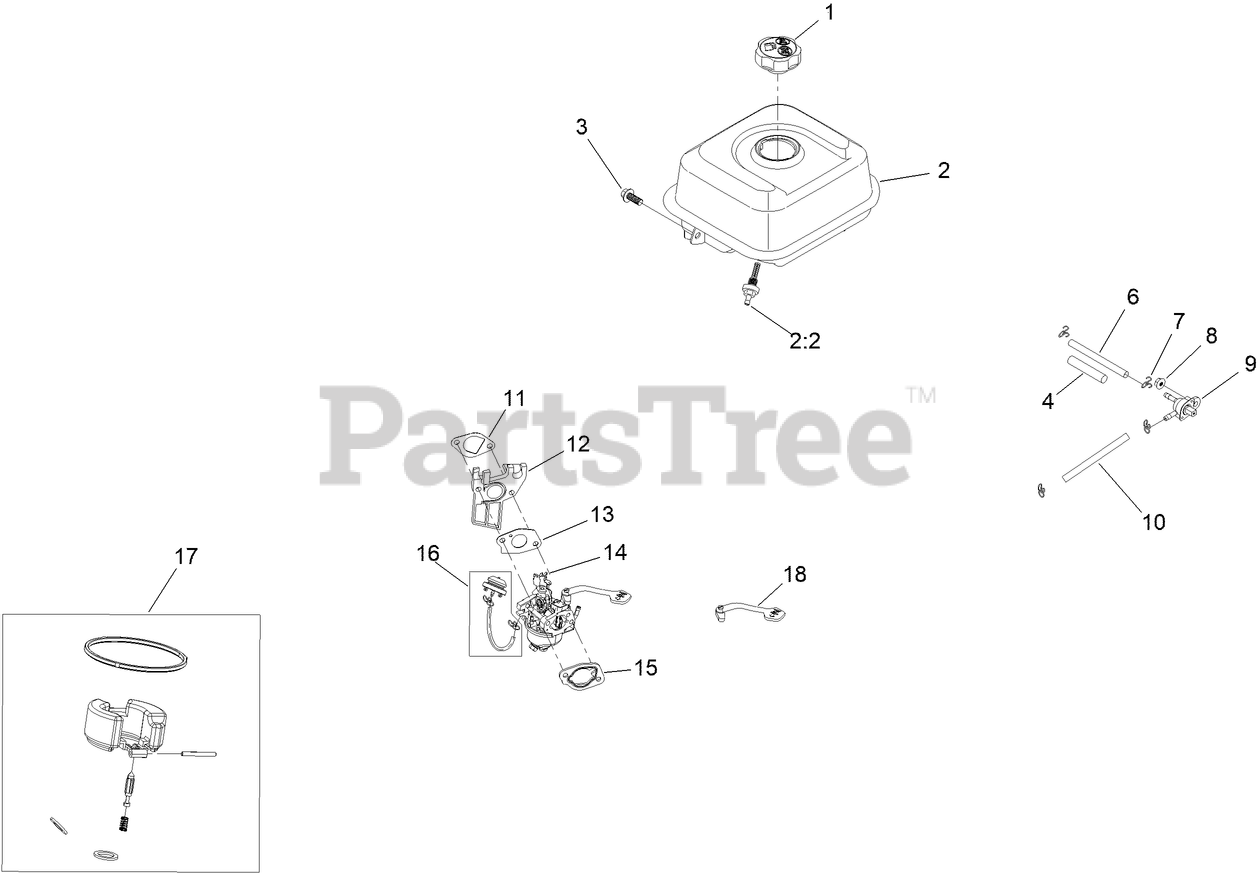

37807 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 400000000 - 999999999) Fuel System and Carburetor Assembly Parts Diagram

24" Power Max Snow Thrower

Fuel System and Carburetor Assembly Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$19.99

$

In Stock, only 2 left!

0

2

Toro 127-9497

FUEL TANK AND FILTER ASM

$100.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-9065

FILTER-FUEL

$5.99

$

In Stock, only 1 left!

0

3

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 8

0

4

Toro 147-7098

SLEEVE-ABRASION

$

$

Currently unavailable

6

Toro 147-7079

HOSE-FUEL

$

$

Currently unavailable

7

Toro 147-7077

CLIP-HOSE

$

$

Currently unavailable

8

Toro 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 18

0

9

Toro 127-9117

VALVE-FUEL

$18.99

$

In Stock, only 1 left!

0

10

Toro 147-7080

HOSE-FUEL

$

$

Currently unavailable

11

Toro 121-0076

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 10

0

12

Toro 121-0077

INSULATOR-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

13

Toro 121-0078

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 11

0

14

Toro 147-7081

CARBURETOR ASM

$

$

Currently unavailable

15

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

16

Toro 127-9079

PRIMER KIT

$29.99

$

In Stock, only 2 left!

0

17

Toro 127-9394

INTERNAL CARB SERVICE KIT

$21.99

$

In Stock, only 2 left!

0

18

Toro 147-7095

LEVER-CHOKE

$

$

Currently unavailable

99

Toro 127-9301

HIGH ALTITUDE KIT - G210

Note: Not illustrated

$13.99

$

In Stock, only 1 left!

0
