37802 (826 OHAE) - Toro 26" Power Max Snow Thrower (SN: 408727584 - 999999999) Chute Control Assembly Parts Diagram

26" Power Max Snow Thrower

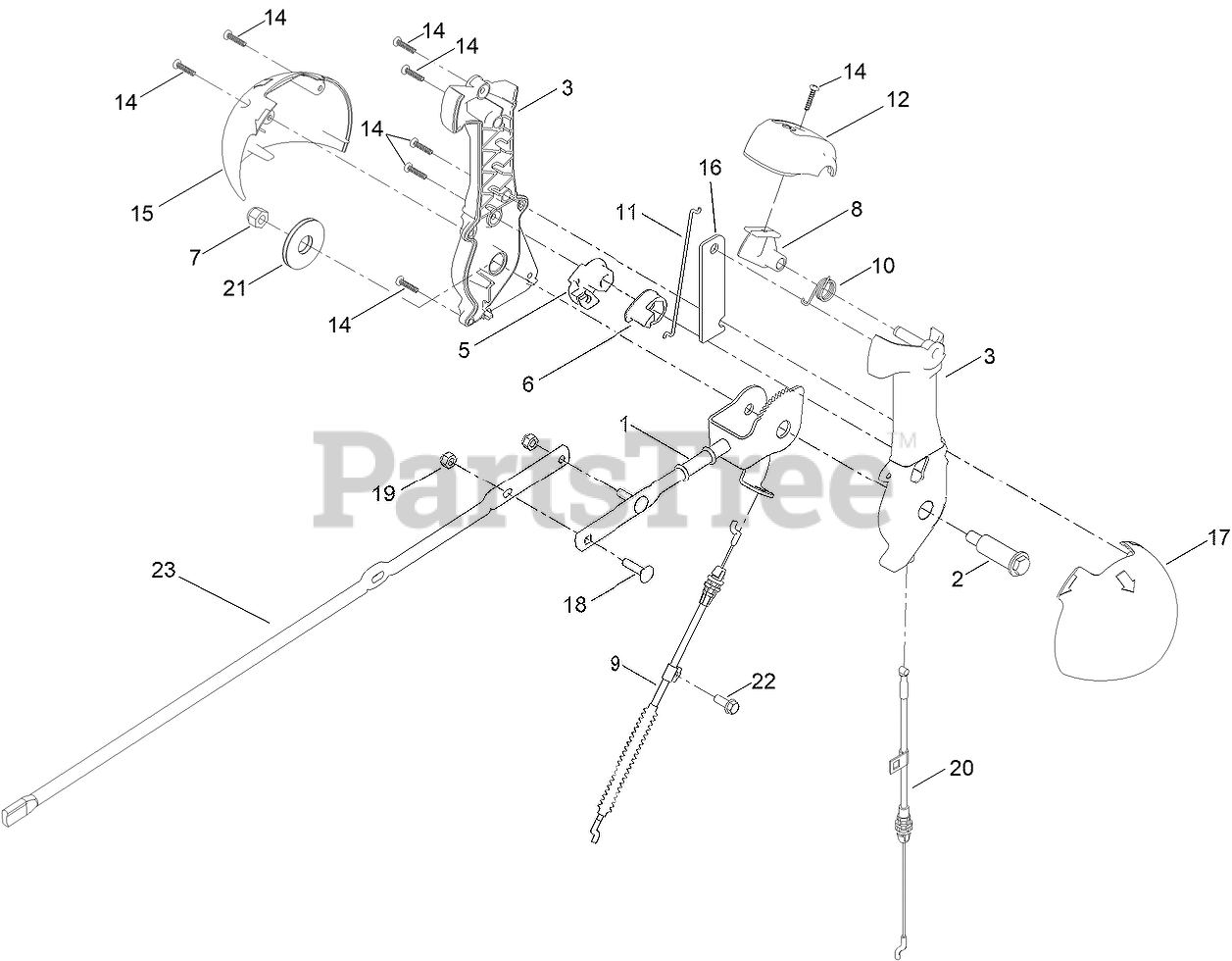

Chute Control Assembly Parts Diagram

  • Title

1

Toro 138-0662

ROD-CONTROL, CHUTE

$18.99

$

Usually ships in 3-6 days

0

2

Toro 138-0659

SCREW-SHOULDER, HWH

$3.99

$

Usually ships in 3-6 days

0

3

Toro 139-1552

CHUTE CONTROL LEVER ASM

$24.99

$

Usually ships in 3-6 days

0

5

Toro 105-9988

LEVER-CABLE, DEFLECTOR

$8.99

$

In Stock, Qty 9

0

6

Toro 106-7310

PAWL-LATCH

$11.99

$

In Stock, only 1 left!

0

7

Toro 137-3087

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

8

Toro 137-6238

TRIGGER-LATCH

$2.49

$

Usually ships in 3-6 days

0

9

Toro 138-3672

CABLE-CONTROL, DEFLECTOR

$34.99

$

Usually ships in 3-6 days

0

10

Toro 105-9982

SPRING-TORSION

$3.49

$

In Stock, only 1 left!

0

11

Toro 138-0688

LINK-LATCH

$2.99

$

Usually ships in 3-6 days

0

12

Toro 137-6239

CAP-LEVER

$3.49

$

In Stock, only 1 left!

0

14

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Toro 136-6677

GLOBE-QUICKSTICK, RH

$4.49

$

Usually ships in 3-6 days

0

16

Toro 136-6632

PLATE-STIFFNER

$

$

Currently unavailable

17

Toro 136-6678

GLOBE-QUICKSTICK, LH

$4.49

$

Usually ships in 3-6 days

0

18

Toro 137-3056

BOLT-CARR

$1.99

$

In Stock, Qty 11

0

19

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

20

Toro 144-1237

CABLE-ROTATION, CHUTE

$25.99

$

Usually ships in 3-6 days

0

21

Toro 138-0744

WASHER-FRICTION, COMPOSITE

$4.49

$

Usually ships in 3-6 days

0

22

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

23

Toro 144-1236

ROD-CHUTE

$23.99

$

In Stock, only 1 left!

0
