37799 (826 OAE) - Toro 26" Power Max Snow Thrower (SN: 416170000 - 416179999) Control Assembly Parts Diagram

26" Power Max Snow Thrower

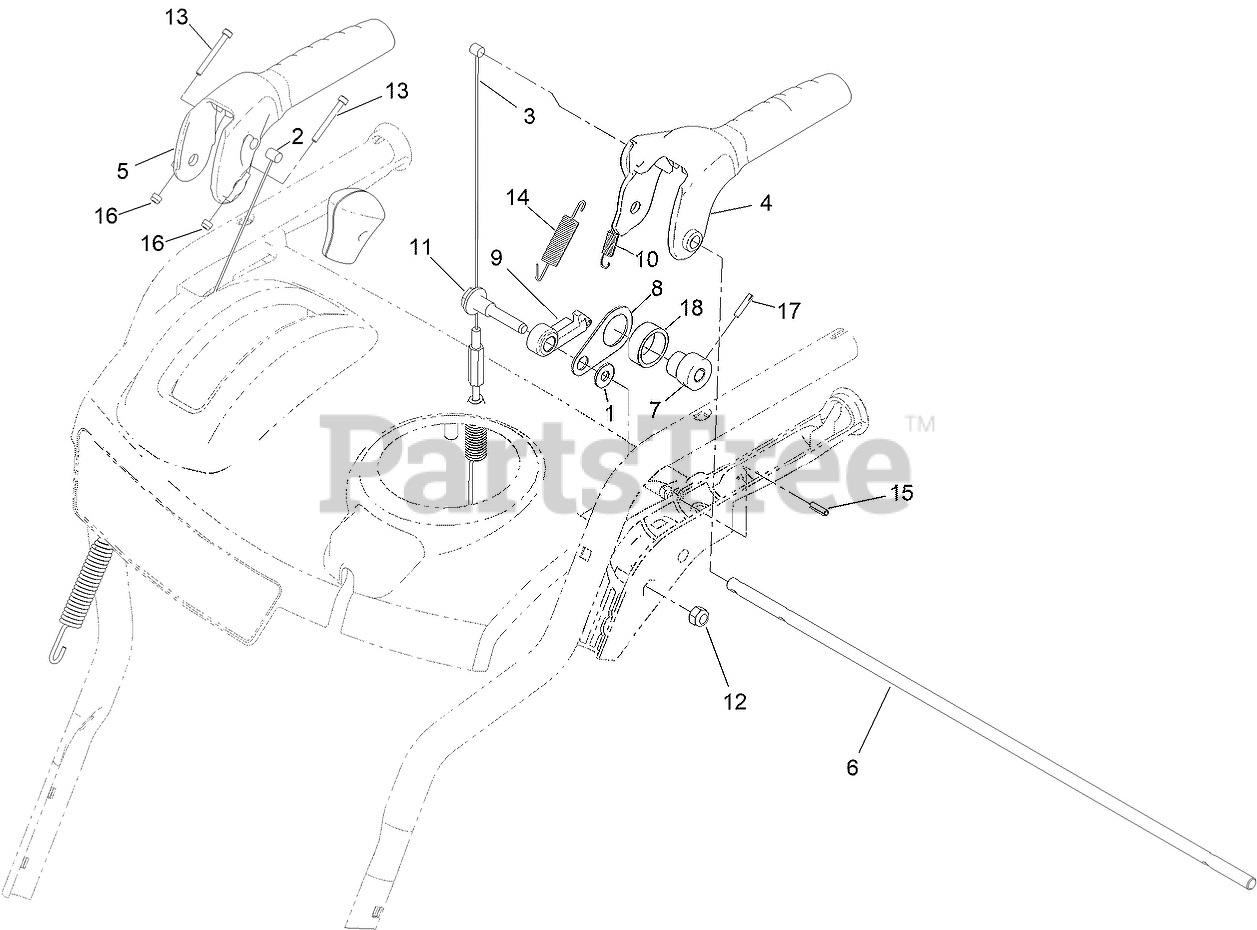

Control Assembly Parts Diagram

  • Title

1

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

2

Toro 161-0972

CABLE-AUGER

$28.99

$

In Stock, only 1 left!

0

3

Toro 161-0975

CABLE-TRACTION

$28.99

$

Usually ships in 3-6 days

0

4

Toro 121-1200

HANDLE-CONTROL, TRACTION

$19.99

$

Usually ships in 3-6 days

0

5

Toro 121-1201

HANDLE-CONTROL, AUGER

$19.99

$

Usually ships in 3-6 days

0

6

Toro 136-7125

ROD-LOCKOUT

$25.99

$

Usually ships in 3-6 days

0

7

Toro 121-1203

CAM-LOCKOUT

$8.49

$

Usually ships in 3-6 days

0

8

Toro 136-7160

LINK-LOCKOUT

$1.99

$

Usually ships in 3-6 days

0

9

Toro 121-1205

LATCH-LOCKOUT

$8.49

$

Usually ships in 3-6 days

0

10

Toro 136-7161

SPRING-LOCKOUT, HANDLE

$4.99

$

In Stock, only 1 left!

0

11

Toro 136-7194

SCREW-SHOULDER

$1.99

$

Usually ships in 3-6 days

0

12

Toro 137-3093

NUT-HEX

$1.49

$

In Stock, Qty 15

0

13

Toro 145-0660

SCREW-HSH,SPL

$0.99

$

Usually ships in 3-6 days

0

14

Toro 136-7162

SPRING-RETURN, LEVER

$4.99

$

Usually ships in 3-6 days

0

15

Toro 32121-2

PIN-ROLL, SLOTTED

$0.99

$

In Stock, Qty 9

0

16

Toro 140-3749

NUT-LOCK ROHS

$0.99

$

Usually ships in 3-6 days

0

17

Toro 145-0659

PIN-QUARTER GROOVE

$1.49

$

Usually ships in 3-6 days

0

18

Toro 145-0667

SPACER-PLASTIC

$1.49

$

Usually ships in 3-6 days

0
