37799 (826 OAE) - Toro 26" Power Max Snow Thrower (SN: 400000000 - 405866399) Tire and Drive Assembly Parts Diagram

26" Power Max Snow Thrower

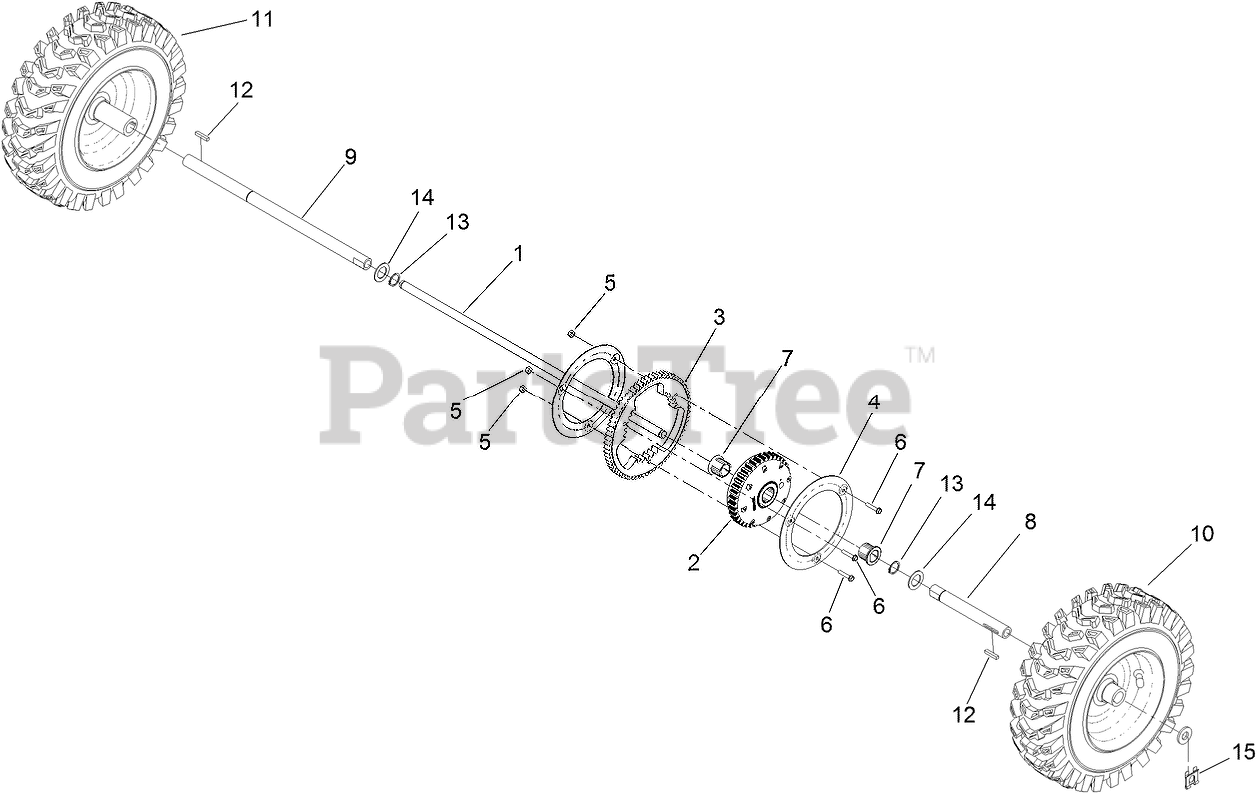

Tire and Drive Assembly Parts Diagram

  • Title

1

Toro 130-9789

AXLE

$54.99

$

Usually ships in 3-6 days

0

2

Toro 130-9776

TRANSMISSION

$241.99

$

Usually ships in 3-6 days

0

3

Toro 130-9786

GEAR-AXLE

$40.99

$

Usually ships in 3-6 days

0

4

Toro 130-9798-03

PLATE-GEAR

$9.99

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 131-6456

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 130-9799

GEAR-TUBE, AXLE

$4.99

$

Usually ships in 3-6 days

0

8

Toro 130-9792

TUBE-AXLE

$52.99

$

Usually ships in 3-6 days

0

9

Toro 130-9793

TUBE-AXLE

$60.99

$

Usually ships in 3-6 days

0

10

Toro 137-3437

LH WHEEL AND TIRE ASM

$151.99

$

Usually ships in 3-6 days

0

11

Toro 137-3438

RH WHEEL AND TIRE ASM

$151.99

$

Usually ships in 3-6 days

0

12

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 3 left!

0

13

Toro 32120-72

RING-SNAP

$2.49

$

In Stock, only 2 left!

0

14

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

15

Toro 95-4064

CLIP-PIN
(Superseded to 138-8491)

$7.49

$

In Stock, only 1 left!

0
